Haughton Parts
346 Haughton elevator & escalator parts. Click any item for specifications and to request a quote.
H-BE01
HAUGHTON
BEARING, ROLLER, U/W SHEAVE END "EK" MACHINE. O.E.M. # 3-40151-87
H-BE02
HAUGHTON
BEARIN, ROLLER, U/W GEAR END "EK" MACHINE. O.E.M. # 3-40151-89
H-BR119
HAUGHTON
BRUSH, CARBON, SPLIT. 2.125" X 1.500" X .625 ADAMS # NONE
H-BR100
HAUGHTON Brush
OEM: 162795AD/43-1018-05 for regulator. Thickness-.250 Width-.625 Length-1.000 Grade-619
H-BR102
HAUGHTON Brush
OEM: Thickness-.312 Width-1.250 Length-1.750 Grade- SA45
H-BH01
HAUGHTON
HOLDER, BRONZE, DOUBLE, WITH SPRING CLIPS. ADAMS # NONE BRUSH SIZE 3/4" X 3/8" O.E.M # 74…
H-BH02
HAUGHTON
HOLDER, BRONZE, DOUBLE, WITH SPRING CLIPS. ADAMS # NONE BRUSH SIZE: 1" X 3/8" O.E.M. # 74…
H-BH03
HAUGHTON
HOLDER, BRONZE, MOUNTS WITH SET SCREW. ADAMS # NONE BRUSH SIZE: 1/2" X 1" O.E.M. # W-7553…

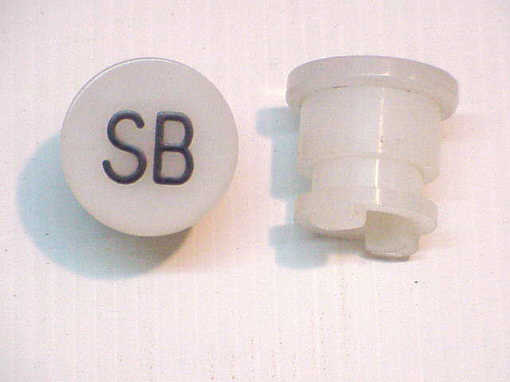

H-B01
HAUGHTON BUTTON
H-B02
HAUGHTON BUTTON

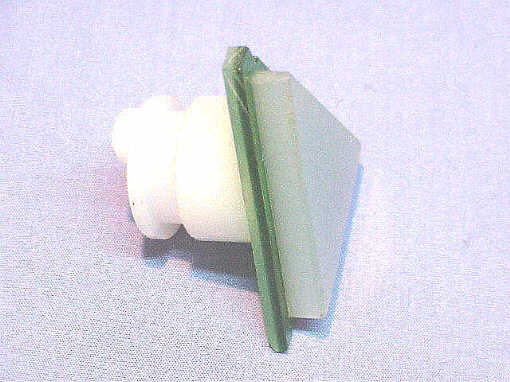

H-B03
HAUGHTON BUTTON

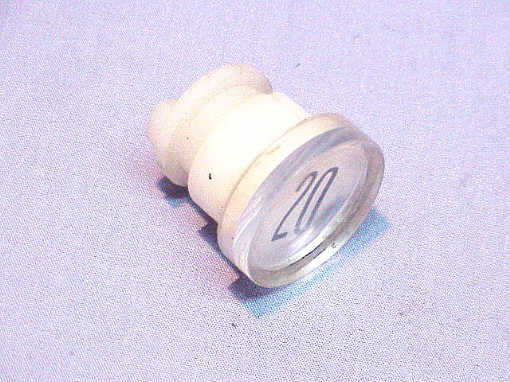

H-B004
HAUGHTON BUTTON
BUTTON, WHITE WITH CLEAR CONCAVE CAP, 1 1/8" DIAMETER, 1 5/32" LONG, SPECIFY MARKING O.E.…

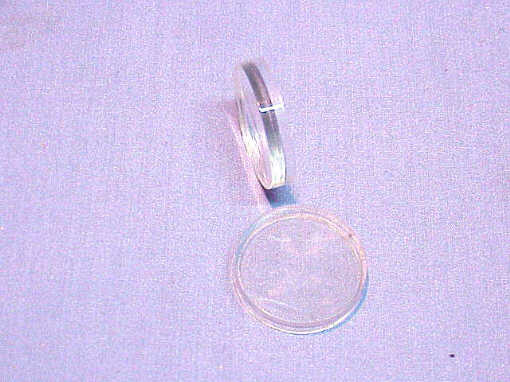

H-B04C
HAUGHTON BUTTON

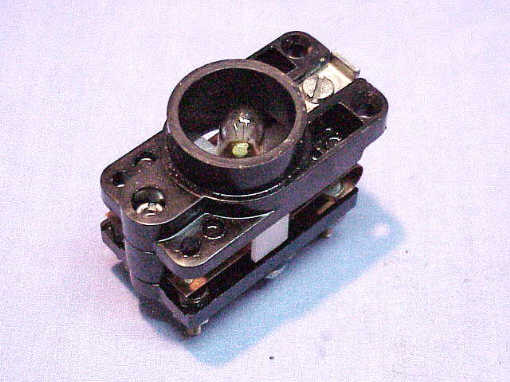

H-B05
HAUGHTON BUTTON

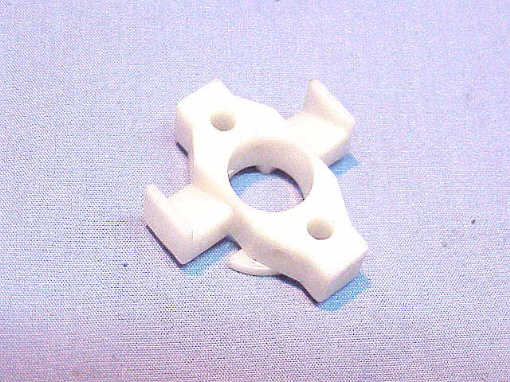

H-B005A
HAUGHTON BUTTON
ACTUATOR, BUTTON, USED WITH H-B05, WHITE MOULDED PLASTIC.

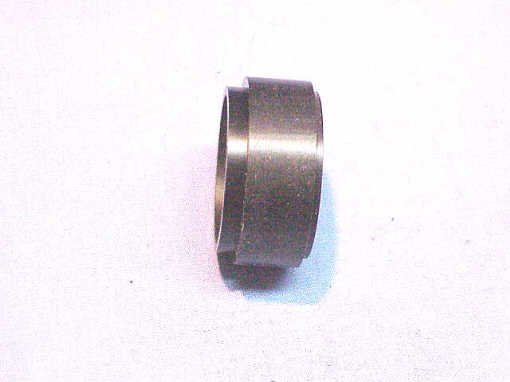

H-B005H
HAUGHTON BUTTON
COLLAR, EXTENDED, USED WITH H-B05.

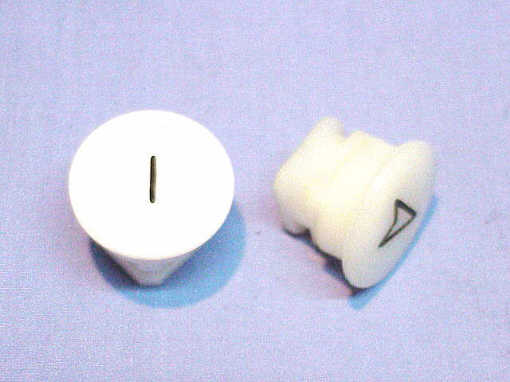

H-B05-R1
HAUGHTON BUTTON
H-B05-R2
HAUGHTON BUTTON
H-B06
HAUGHTON BUTTON

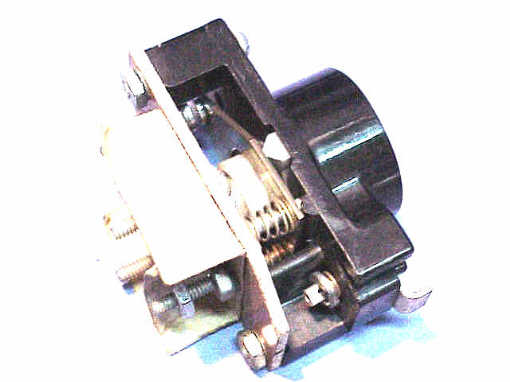

H-B07
HAUGHTON BUTTON

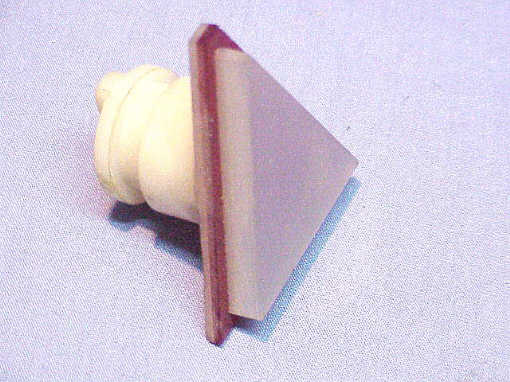

H-B17
HAUGHTON BUTTON
H-B18
HAUGHTON BUTTON

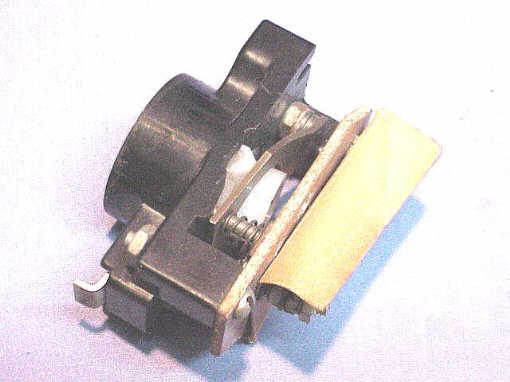

H-B19
HAUGHTON BUTTON

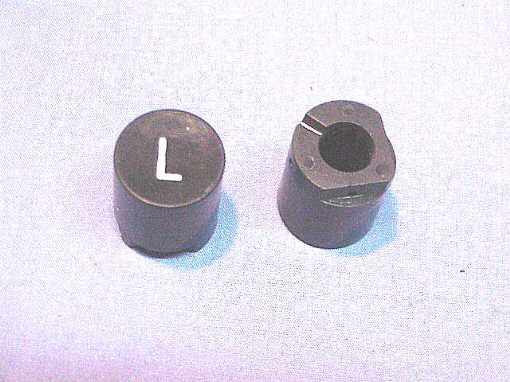

H-B20
HAUGHTON BUTTON

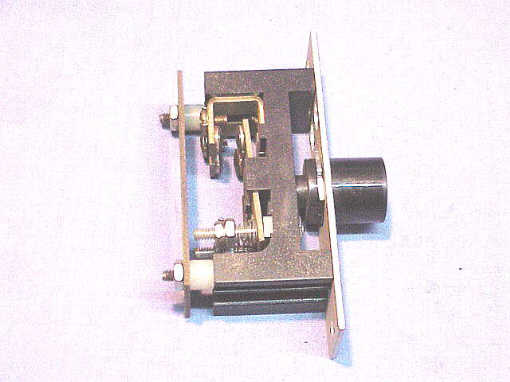

H-B20C
HAUGHTON BUTTON

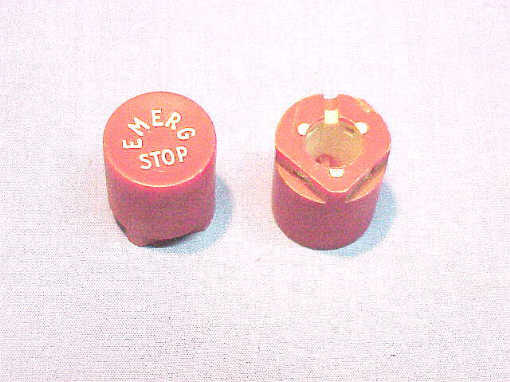

H-B21
HAUGHTON BUTTON

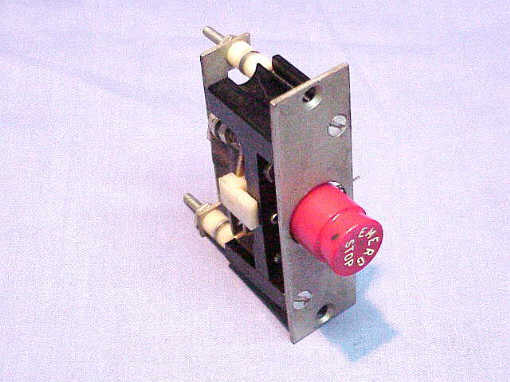

H-B021C
HAUGHTON BUTTON

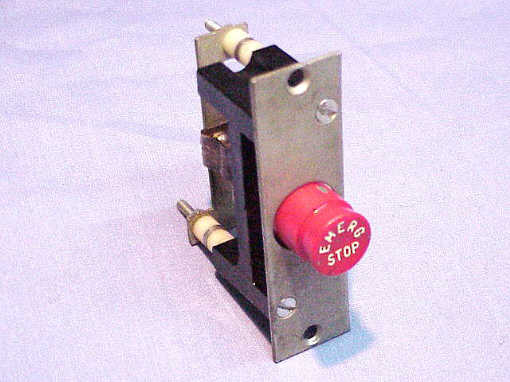

H-B021CV
HAUGHTON BUTTON
SWITCH, STOP, VERTICAL MOUNT.

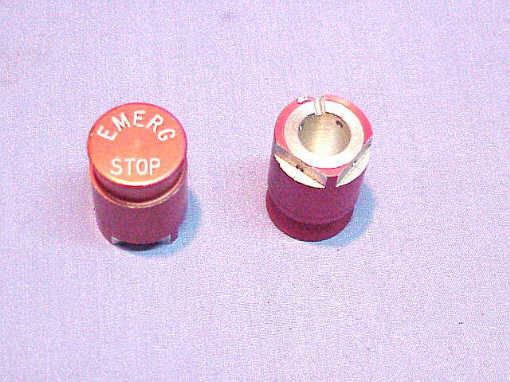

H-B022
HAUGHTON BUTTON
BUTTON, STOP, ALUMINIUM, RED ANODIZED FINISH, ETCHED "EMERG STOP", .750" DIAMETER O.E.M.…

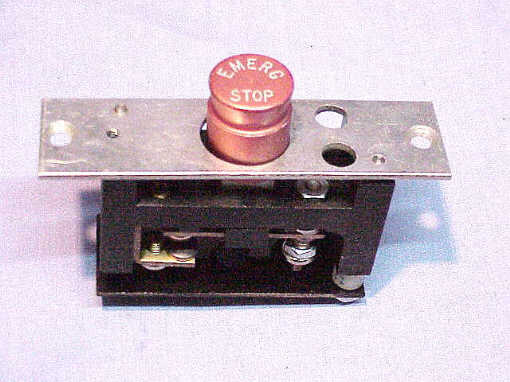

H-B22CH
HAUGHTON BUTTON

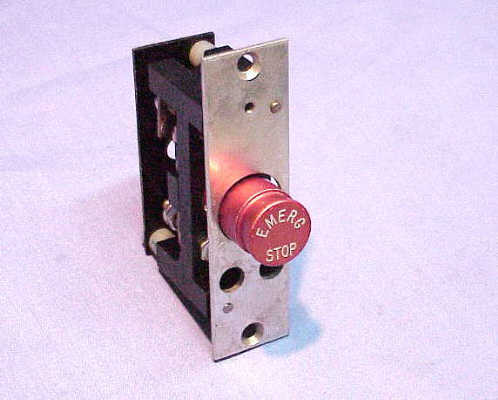

H-B022CV
HAUGHTON BUTTON
SWITCH. STOP, COMPLETE, TYPE "E", RED ANODIZED ALUMINIUM BUTTON ETCHED "EMERG STOP" VERTI…
H-B200
HAUGHTON BUTTON
LENS, ARROW, WHITE, HALL LANTERN, 2.500" SIDE, 1.500" BOTTOM. O.E.M. # 3-19561-23
H-B201
HAUGHTON BUTTON
LENS, ARROW, RED, HALL LANTERN, 2.500" SIDES X 1.500" BOTTOM. O.E.M. # 3-19561-20
H-B202
HAUGHTON BUTTON
LENS, ARROW, GREEN, HALL LANTERN, 2.500" SIDES X 1.500" BOTTOM. O.E.M. # 3-19561-21

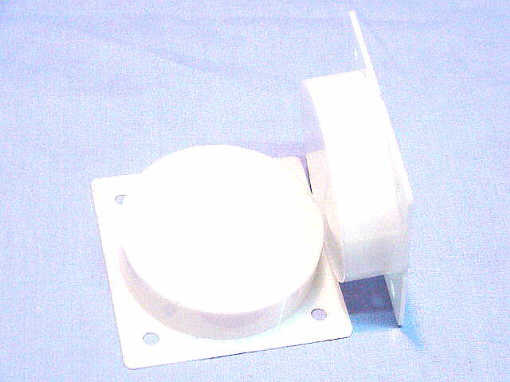

H-B203
HAUGHTON BUTTON
LENS, ROUND, WHITE, HALL LANTERN, 2.500" DIAMETER. O.E.M. # 3-40128-98

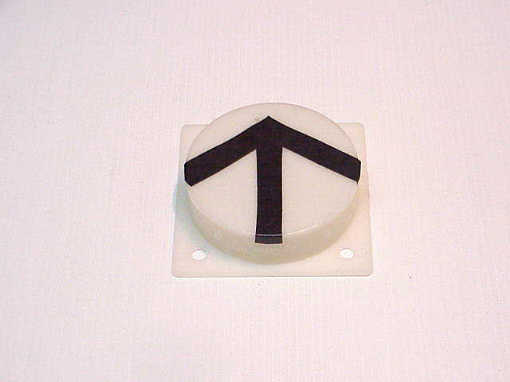

H-B204
HAUGHTON BUTTON
LENS, ROUND, WHITE, HALL LANTERN, 2.500" DIAMETER WITH BLACK ARROW. O.E.M. # 3-40128-69

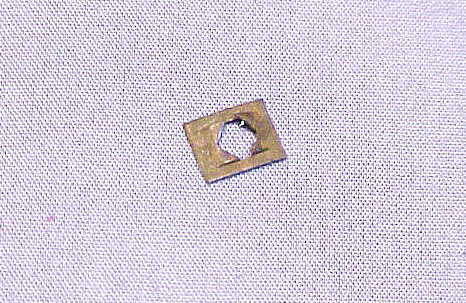

H-B205
HAUGHTON BUTTON
CLIP, SPRING, USED WITH H-B203-4 LENSES. PACKAGE OF 10. O.E.M. # HR-909
H-B210
HAUGHTON BUTTON
JEWEL, POSITION INDICATOR, RAISED MARKINGS FIT THRU COVERPLATE. MILK WHITE, 1 3/16" SQUAR…
H-B250
HAUGHTON BUTTON
GONG, AUDIBLE, 3.000" DIAMETER BRASS SHELL, 12 VOLT AC OR DC. O.E.M. # 3-40026-99
H-B251
HAUGHTON BUTTON
GONG, AUDIBLE, 24 VOLT AC OR DC, 3.000" BRASS SHELL. O.E.M. # 3-40134-64
H-B252
HAUGHTON BUTTON
GONG, AUDIBLE, 110 VOLT AC, 3.000" BRASS SHELL,REPLACEMENT REQUIRES REDRILL OF EXISTING M…

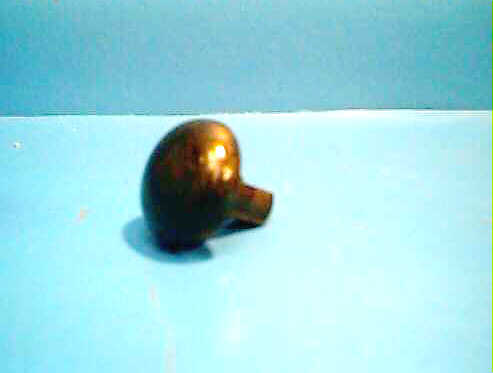

H-B260
HAUGHTON BUTTON
BUTTON, MUSHROOM, BLACK, 1.250" DIA., STEM .500" DIA. X .750" LONG WITH 2 FLATS, WITH 6-2…

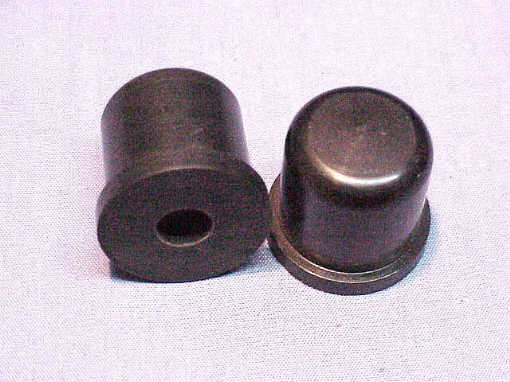

H-B261
HAUGHTON BUTTON
BUTTON, HI-HAT, BLACK, .750" DIA. X .750 OVERALL, BASE .875" DIA. X .125" SUPPLIED BLANK…
H-B262
HAUGHTON BUTTON
BUTTON, HI-HAT, BLACK, BLANK .625" DIA. X .500" LONG WITH .750" X .125" BASE.

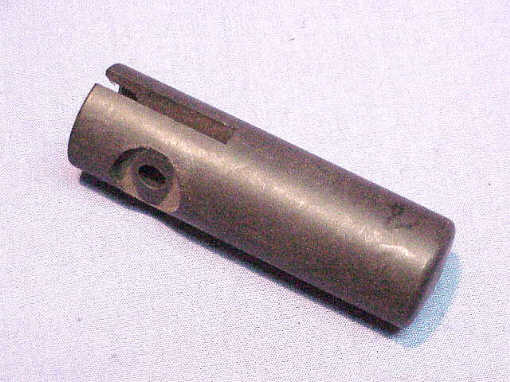

H-B263
HAUGHTON BUTTON
BUTTON, BLACK, BLANK, .750" X 2.432" LONG, TWO .125" SLOTS X 1.000" LONG, TWO .1825" DIA.…
H-B264
HAUGHTON BUTTON
SWITCH, MICRO, PUSHBUTTON, DPDT, DOUBLE ACTION, 6 TERMINALS, 3 AMP @ 250V, 6 AMP @ 125 V.…

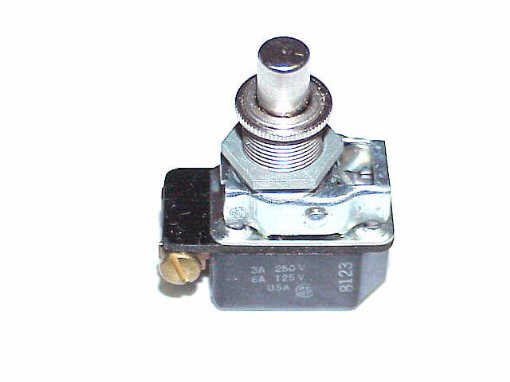

H-B265
HAUGHTON BUTTON
SWITCH, MICRO, PUSHBUTTON, SPST, MOMENTARY, NORMALLY OPEN, 2 TERMINALS, 3 AMP @ 250 V, 6…

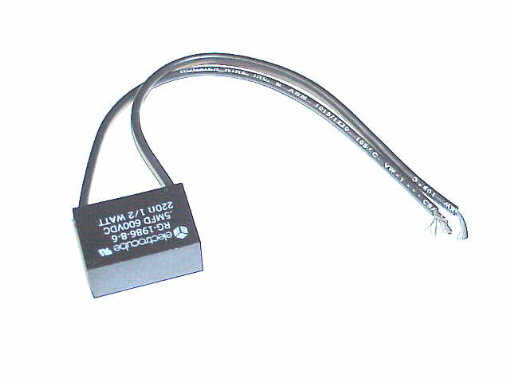

H-E43
HAUGHTON
CAPACITOR, .5 MFD @ 600VDC, 200 OHM @ 1/2 WATT ELECTROCUBE O.E.M. # 3-40255-46 ADAMS # NO…
H-H01
HAUGHTON
CONTACT, BRONZE, CAST & MACHINED. 2" OVERALL WITH (1) MOUNTING HOLE. O.E.M. # 2046C
H-H10
HAUGHTON
SPRING, COPPER, CENTERING. 1 7/8" O.D. X 1 3/4" I.D., 4 1/2" OVERALL.
H-C01
HAUGHTON
CONTACT, CARBON. 1 1/2" X 1 1/2" X 3/4" O.E.M. # 5737
H-C02
HAUGHTON
CONTACT, CARBON. 2" X 1 3/4" X 3/4" O.E.M. # 5575
H-C03
HAUGHTON
CONTACT, CARBON. 1" X 1" X 9/16" USED WITH "F" (H-CU03) COPPER. O.E.M. # 21003
H-C04
HAUGHTON
CONTACT, CARBON, SPUN IN HOLDER. CARBON: 5/8" X 3/16" STEM: 3/8" X 3/16" O.E.M. # 18240
H-CH01
HAUGHTON
OEM: 20706 Holder for H-C03 carbon. Used on "F" contactors.
H-CH02
HAUGHTON
OEM: Holder for H-C01 carbon. Has threaded support through holder.
H-M100
HAUGHTON
COIL, TELEPHONE RELAY O.E.M. # 44-1032-003 VOLTS: 120 DC OHMS: 11,300
H-M101
HAUGHTON
COIL, TELEPHONE RELAY O.E.M. # 44-1032-004 Volts: 60 DC OHMS: 2000
H-M102
HAUGHTON
OEM: 44-1032-005 Volts: 60DC OHMS: 2000
H-M103
HAUGHTON
O.E.M.# 44-1032-006 VOLTS: 120DC OHMS: 4000
H-M104
HAUGHTON
COIL. TELEPHONE RELAY OEM: 44-1032-007 VOLTS: 18 VAC OHMS: 2.1
H-M105
HAUGHTON
COIL, TELEHONE RELAY O.E.M. # 44-1032-008 VOLTS: 4 VDC OHMS: 13
H-M106
HAUGHTON
COIL, TELEPHONE RELAY O.E.M. # 44-1032-010 VOLTS: 120 VDC OHMS: 4,000
H-M107
HAUGHTON
COIL, TELEPHONE RELAY OE.M. # 3-40121-78 VOLTS: 120 VDC OHMS: 20,000
H-M108
HAUGHTON
COIL. TELEPHONE RELAY O.E.M. # 3-40155-15
H-M109
HAUGHTON
COIL, TELEPHONE RELAY O.E.M. # 44-1032-009
H-M110
HAUGHTON
COIL, TELEPHONE RELAY O.E.M. # 44-1032-011
H-M111
HAUGHTON
COIL, TELEPHONE RELAY O.E.M. # 44-1032-012
H-M120
HAUGHTON
O.E.M. # 3-36102-13 VOLTS: 115DC OHMS: 700 OTHER I.D T-1
H-M121
HAUGHTON
COIL, RELAY, T2 O.E.M. # 3-36102-05 VOLTS : 230 VDC OHMS : 2940
H-M122
HAUGHTON
COIL, RELAY T6 O.E.M. # 3-40118-34 VOLTS : 60 VDC OHMS : 480
H-M123
HAUGHTON
COIL, RELAY T8 O.E.M. # 3-36102-07 VOLTS : 80 VDC OHMS : 740
H-M124
HAUGHTON
COIL, RELAY T15 O.E.M. # 36102 VOLTS : 115 VDC OHMS : 780
H-M125
HAUGHTON
COIL, RELAY T18 O.E.M. # 3-36102-06 VOLTS : 230 VDC OHMS : 1900
H-M126
HAUGHTON
COIL, RELAY T21 O.E.M. # 3-36102-08 VOLTS : SERIES OHMS : 8.2
H-M127
HAUGHTON
COIL, RELAY T25 O.E.M. # 3-36102-01 VOLTS : 230 VDC OHMS : 2900
H-M128
HAUGHTON
COIL, RELAY T41 O.E.M. # 3-36102-04 VOLTS : SERIES OHMS : 1.9
H-M129
HAUGHTON
COIL, RELAY T71 O.E.M. # 3-36102-03 VOLTS : SERIES OHMS : .51
H-M130
HAUGHTON
COIL, RELAY T90 O.E.M. # 3-36102-02 VOLTS : SERIES OHMS : .14
H-M131
HAUGHTON
COIL, RELAY T91 O.E.M. # 3-36102-11 VOLTS : SERIES OHMS : .04
H-M132
HAUGHTON
O.E.M. # 34-1204-001 VOLTS: 190/250DC OHMS: 7200 OTHER I.D. T1T
H-M133
HAUGHTON
COIL, RELAY, T61 O.E.M. # VOLTS : OHMS :
H-M134
HAUGHTON
COIL, RELAY T2E
H-M150
HAUGHTON
COIL, RELAY O.E.M. # 3-23015-15 OTHER I.D. E1 VOLTS: 110AC OHMS: .65
H-M151
HAUGHTON
COIL, RELAY O.E.M. # 3-23015-09 OTHER ID E2D VOLTS: 230 VDC OHMS: 5000
H-M152
HAUGHTON
COIL, RELAY O.E.M. # 3-23015-07 OTHER I.D. E5 VOLTS: 55 VAC OHMS: 8.6
H-M153
HAUGHTON
COIL, RELAY O.E.M. # 3-23015-23 OTHER I.D. E11 VOLTS: 115DC OHMS: 818
H-M154
HAUGHTON
COIL, RELAY O.E.M.#: 3-23015-10 OTHER I.D. E12 VOLTS: 120 VAC OHMS: 60
H-M155
HAUGHTON
COIL, RELAY O.E.M. # 3-23015-21 OTHER I.D. E12G VOLTS: 110 VAC OHMS: 60
H-M156
HAUGHTON
COIL, RELAY O.E.M. # 3-23015-04 OTHER I.D. E16 VOLTS: 110 VAC OHMS: 55
H-M157
HAUGHTON
COIL.RELAY O.E.M. # 3-23015-11 OTHER I.D. E18 VOLTS: 180 VAC OHMS: 90
H-M158
HAUGHTON
COIL. RELAY O.E.M. # 3-23015-24 OTHER I.D. E20 VOLTS: 220/250 VAC OHMS: 187
H-M159
HAUGHTON
COIL, RELAY O.E.M. # 3-23015-20 OTHER I.D. E20G VOLTS: 208 VAC OHMS: 210
H-M160
HAUGHTON
COIL. RELAY O.E.M. # 3-23015-22 OTHER I.D. E23 Voltage: 230DC OHMS: 3240
H-M161
HAUGHTON
COIL. RELAY O.E.M. # 3-23015-16 OTHER I.D. E24 VOLTS: 240 VAC OHMS: 230
H-M162
HAUGHTON
COIL, RELAY O.E.M. # 3-23015-19 OTHER I.D. E24G VOLTS: 240 VAC OHMS: 230
H-M163
HAUGHTON
COIL, RELAY O.E.M. # 3-23015-05 OTHER I.D. E26 VOLTS: 220 VAC OHMS: 145
H-M164
HAUGHTON
COIL, RELAY O.E.M. # 3-23015-03 OTHER I.D E26C VOLTS: 240 VAC OHMS: .95
H-M165
HAUGHTON
COIL. RELAY O.E.M. # 3-23015-01 OTHER I.D. E26G VOLTS: 208 VAC OHMS: 145
H-M166
HAUGHTON
COIL. RELAY O.E.M. # 3-23015-02 OTHER I.D. E26T VOLTS: 220 VAC OHMS: 3400/300
H-M167
HAUGHTON
COIL, RELAY O.E.M. # 3-23015-17 OTHER I.D. E45 VOLTS: 220 VAC OHMS: 1350
H-M168
HAUGHTON
COIL, RELAY O.E.M. # 3-23015-06 OTHER I.D. E46 VOLTS: 110AC OHMS: 600
H-M169
HAUGHTON
COIL, RELAY O.E.M. # 3-23015-08 OTHER I.D. E48 VOLTS: 115 VDC OHMS: 920
H-M170
HAUGHTON
COIL, RELAY, REVERSE PHASE PR-19 O.E.M. # 3-40113-96 VOLTS : 180 VAC
H-M171
HAUGHTON
COIL, RELAY, REVERSE PHASE PR O.E.M. # 34-1032-013 VOLTS : 440 VC
H-M172
HAUGHTON
COIL, RELAY, TYPE BN O.E.M. # 3-40008-47 VOLTS : 12 VDC OHMS : 33.3
H-M173
HAUGHTON
COIL, RELAY TYPE BN O.E.M. # 3-40008-48 VOLTS : 24 VDC OHMS : 136
H-M174
HAUGHTON
COIL, RELAY TYPE BN O.E.M. # 34-1032-001 VOLTS : 120 VDC OHMS : 2950
H-M175
HAUGHTON
COIL, CAM, TYPE B1 OHMS : 300
H-M176
HAUGHTON
COIL, CAM O.E.M. # 23201A
H-M177
HAUGHTON
COIL, SWITCH, F1 O.E.M. # 23036 OHMS : 370
H-M178
HAUGHTON
COIL, SWITCH F2 O.E.M. # 23036A OHMS : 1500
H-M179
HAUGHTON
COIL, SWITCH F12 O.E.M. # 34-1032-002 OHMS : 450
H-M180
HAUGHTON
COIL, SWITCH K1 O.E.M. # 36271B VOLTS : 115 VAC OHMS : 795
H-M181
HAUGHTON
COIL, SWITCH K2 O.E.M. # 36271A VOLTS : 230 VDC OHMS : 2900
H-M182
HAUGHTON
COIL, ROTODIAL O.E.M. # 23023A OHMS : 70
H-M183
HAUGHTON
COIL, ROTODIAL O.E.M. # 23023C OHMS : 265
H-M184
HAUGHTON
COIL, BRAKE O.E.M. # 3-40031-88
H-M185
HAUGHTON
COIL, RELAY, TELEPHONE O.E.M. # 3-40258-34
H-M190
HAUGHTON
COIL, RELAY, TELEPHONE O.E.M. # 3-40177-51 VOLTS : OHMS :
H-M191
HAUGHTON
COIL, RELAY O.E.M. # 3-36261-08 OTHER I.D. C2X2372
H-M192
HAUGHTON
COIL, SWITCH O.E.M. # 23008
H-M193
HAUGHTON
COIL, RELAY O.E.M. # H2
H-M194
HAUGHTON
COIL O.E.M. # J2
H-M195
HAUGHTON
COIL, SWITCH O.E.M. # 3-05730-01 OTHER I.D. 5730-B
H-M196
HAUGHTON
COIL, SWITCH O.E.M. # 3-05730-00) OTHER I.D. 5730-A
H-M197
HAUGHTON
COIL, SWITCH O.E.M. # 3-05730-02 OTHER I.D. 5730-F
H-M198
HAUGHTON
COIL, RELAY, TELEPHONE O.E.M. # 36353A
H-M199
HAUGHTON
COIL O.E.M. # 3-23047-01
H-M200
HAUGHTON
COIL O.E.M. # 3-23047-02
H-M201
HAUGHTON
COIL, RELAY, TELEPHONE O.E.M. # 3-40188-86
H-CU01
HAUGHTON
CONTACT, COPPER, 1 1/2" X 1/2" SQUARE FACE, STEM 2" X 3/8" O.E.M. # 5736-B
H-CU02
HAUGHTON
CONTACT. COPPER, 1 5/8" SQ. X 1/2" FACE, STEM 3/8" X 1 5/8". O.E.M. # 5574
H-CU03
HAUGHTON (H-CU03
H-CU04
HAUGHTON
CONTACT, COPPER W/ SILVER FACE. 1" SQUARE FACE WITH SILVER INLAY USED ON "F" CONTACTORS.
H-D02
Haughton Door Clutch
OEM: 3-40122-09 Aluminum pillow block assembly with bronze bushing for type "M" door clut…
H-D03
Haughton Door Clutch
OEM: 3-08447-03 Type "M" door clutch spring.
H-D09
Haughton Door Lock
OEM: 3-19237-02 ADAMS: J-835 Stationary contact assembly for type "B" & "B1" door and gat…
H-D08
Haughton Door Operator
OEM: 3-19538-03 ADAMS:J-836 Cam for type "T1" operator limit switch.
H-W01
Haughton Door Roller
OEM: 3-40157-63 ADAMS: J-407 Hanger roller 3 11/16" dia., with .6299 bearing bore. This r…
H-W03
Haughton Door Roller
OEM: 3-40134-75 ADAMS: J-403 Upthrust roller, 3 3/8" dia., 3/4" wide with .6299 bearing b…
H-W04
Haughton Door Roller
OEM: 33-1229-03 ADAMS: J-404 Idler sheave for car door and safety edge retarctor. 1 7/8"…

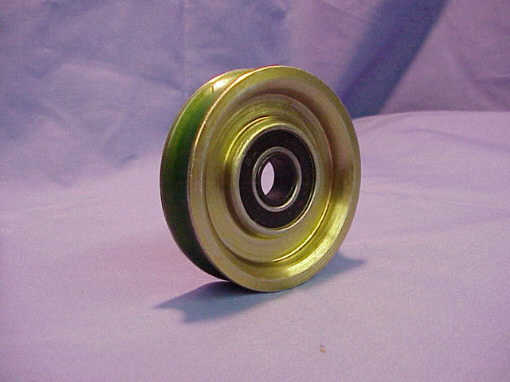

H-W05
Haughton Door Roller
OEM: 3-40130-79 ADAMS: J-405 Hanger roller, 3 5/16" dia., 3/4" wide with .625 bearing bor…
H-D10
Haughton Lock Contact
OEM: 3-19239-01 ADAMS: J-836 Movable contact assembly for type "B" & "B1" door and gate c…
H-D13
Haughton Lock Contact
OEM: 3-40177-07 Hook, interchangable, RH/LH.
H-D32
Haughton Lock Contact
OEM: 34-2551-004 Plastic bridge contact bracket, right hand.
H-D35
Haughton Lock Contact
OEM: 3-40113-02 Interlock, LH.
H-D38C
Haughton Lock Contact
Right Hand
H-D39
Haughton Lock Contact
OEM: 3-40117-57 Stationary contact assembly Left Hand.
H-D39C
Haughton Lock Contact
Left Hand
H-D28
Haughton Lock Roller
OEM; 35-2551-006 Roller with bushing.
H-D28
HAUGHTON
OEM; 35-2551-006 Roller with bushing.
H-W01
HAUGHTON
OEM: 3-40157-63 Hanger roller 3 11/16" dia., with .6299 bearing bore. This roller is manu…
H-W03
HAUGHTON
OEM: 3-40134-75 Upthrust roller, 3 3/8" dia., 3/4" wide with .6299 bearing bore.
H-W04
HAUGHTON
OEM: 33-1229-03 Idler sheave for car door and safety edge retarctor. 1 7/8" dia., 1/2" wi…
H-W05
HAUGHTON

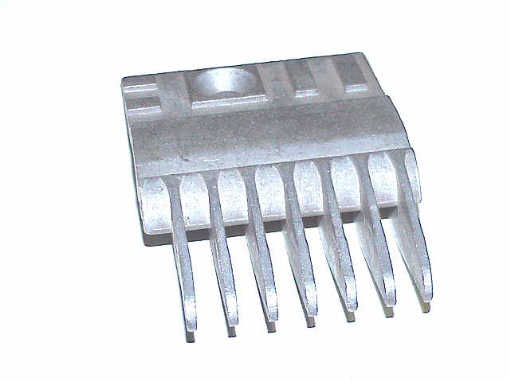

HE-CB01
HAUGHTON
COMBFINGER, CAST ALUMINIUM, 2 15/32" LONG, 7 TOOTH. O.E.M. # 83083 ADAMS # JE-980R

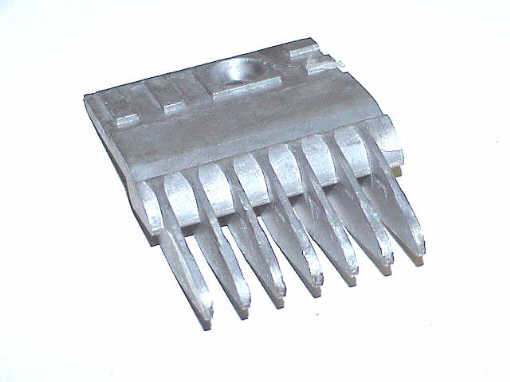

HE-CB02
HAUGHTON
COMBFINGER, CAST ALUMINIUM, 2 15/32" LONG, 7 TOOTH, LEFT HAND O.E.M. # 83084 ADAMS # JE-9…

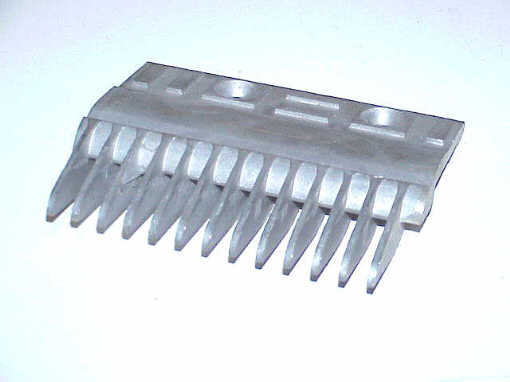

HE-CB03
HAUGHTON
COMBFINGER, CAST ALUMINIUM, 4 15/32" LONG, 13 TOOTH, RIGHTHAND O.E.M. # 83085 ADAMS # JE-…

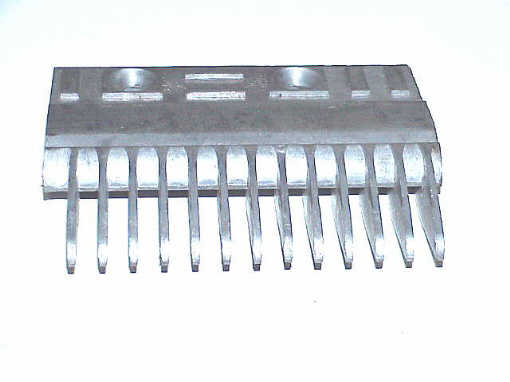

HE-CB04
HAUGHTON
COMBFINGER, CAST ALUMINIUM, 4 15/32" LONG, 13 TOOTH, LEFT HAND O.E.M. # 83086 ADAMS # JE-…

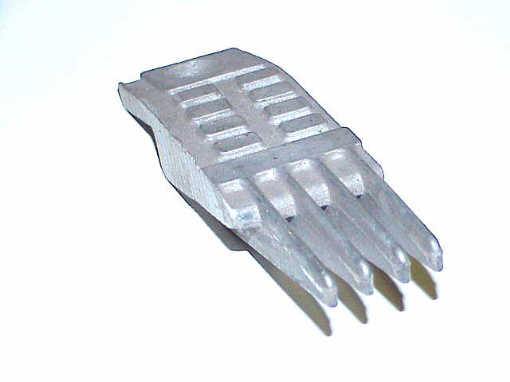

HE-CB05
HAUGHTON
COMBFINGER, CAST ALUMINIUM, 4 63/64", 15 TOOTH, CENTER O.E.M. # 63108 ADAMS # JE-980C
HE-CB06
HAUGHTON
COMBFINGER, CAST ALUMINIUM, 4 TOOTH, RIGHT HAND O.E.M. # 80851 ADAMS # NONE

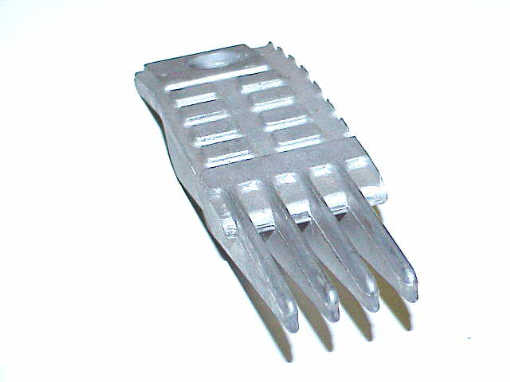

HE-CB07
HAUGHTON
COMBFINGER, CAST ALUMINIUM, 4 TOOTH, LEFT HAND O.E.M. # 80852 ADAMS # NONE
HE-CG100
HAUGHTON
GUIDE, NYLON, CHAIN, 13" X 3 3/8" X 3/8", (2) 7/16" HOLES ON 4" CENTERS. O.E.M. # 81352 A…
HE-HR500
HAUGHTON
SEGMENT, HANDRAIL, BLACK. O.E.M. # ADAMS # NONE SPECIAL COLORS AVAILABLE
HE-SW100
HAUGHTON
SWITCH, TOGGLE, UP/DOWN. O.E.M. # ADAMS # NONE

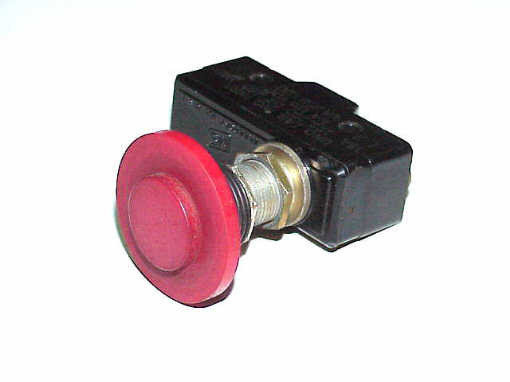

HE-SW120
HAUGHTON
SWITCH, MICRO, START. W/ BUTTON. HAUGHTON-PEELLE UNITS. O.E.M # ADAMS # NONE

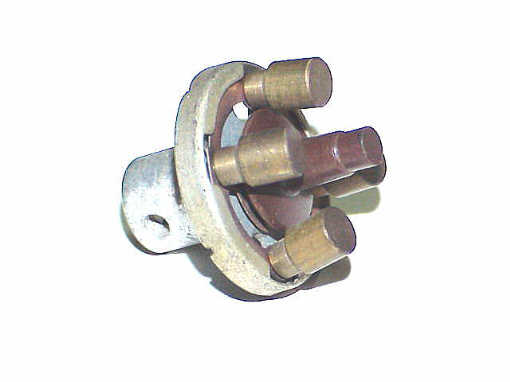

HE-SW200
HAUGHTON
ACTUATOR, SWITCH, GOVERNOR, OVERSPEED, (SMALL WEIGHTS) O.E.M. # ADAMS # NONE

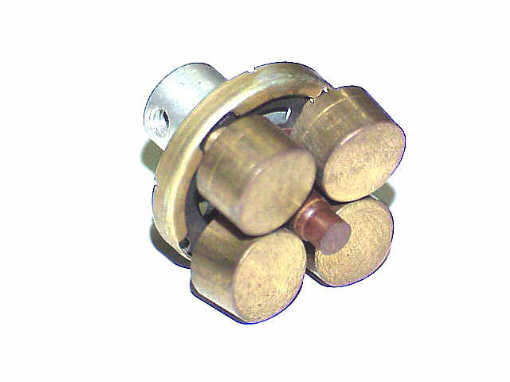

HE-SW210
HAUGHTON
ACTUATOR, SWITCH, GOVERNOR, OVERSPEED. (LARGE WEIGHTS) O.E.M. # ADAMS # NONE

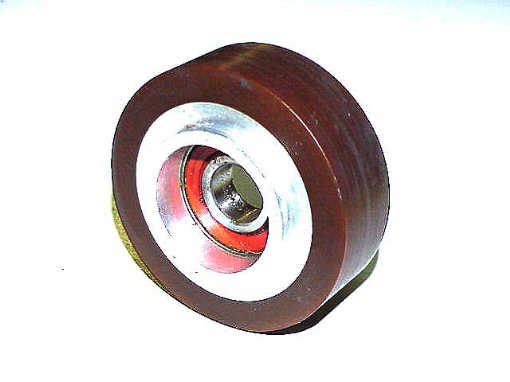

HE-W01
HAUGHTON
O.E.M. # 97444 93485 ADAMS:JE-971 Haughton-Peele step roller, aluminum hub with polyureth…

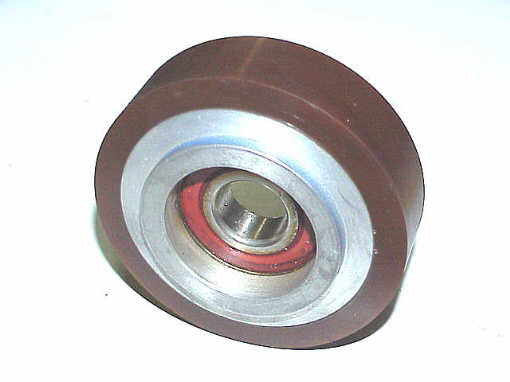

HE-W02
HAUGHTON
OEM: 80004 ADAMS: JE-975 Haughton-Peele step roller, aluminum hub with polyurethane tire…

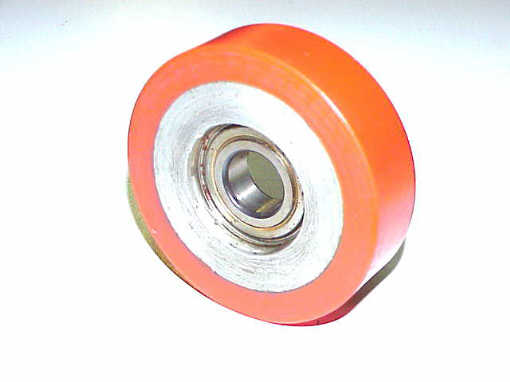

HE-W03
HAUGHTON
OEM: 97662 ADAMS: JE-970 Haughton chain roller/Peele step roller, aluminum hub with polyu…
H-HSW01
Haughton Hoistway
OEM: 3-40156-88

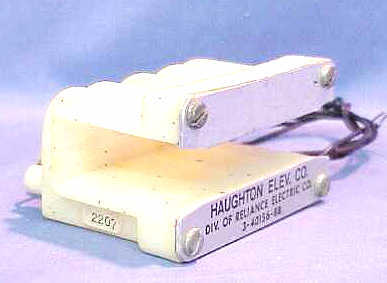

H-HSW02
Haughton Hoistway
OEM: 3-40156-89

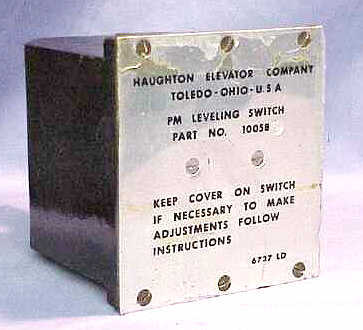

H-HSW03
Haughton Hoistway
OEM: 10058-C

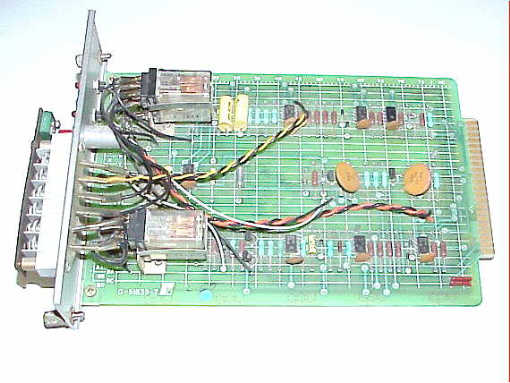

H-SS0-51839-7
HAUGHTON
BOARD, CIRCUIT. O.E.M. # 0-51839-7

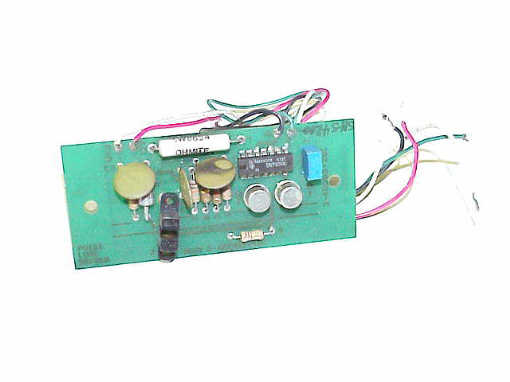

H-SS3-40005-27C
HAUGHTON
BOARD, CIRCUIT, PRINTED. O.E.M # 3-40005-27C ADAMS # NONE

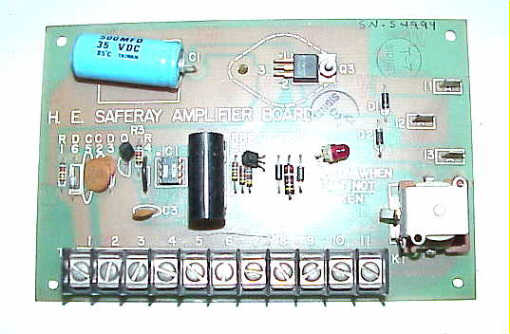

H-SS3-40007-81
HAUGHTON
BOARD, CIRCUIT. O.E.M. # 3-40007-81

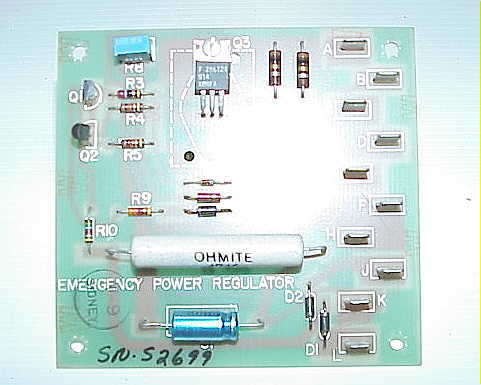

H-SS3-40008-21
HAUGHTON
BOARD, CIRCUIT. O.E.M. # 3-40008-21

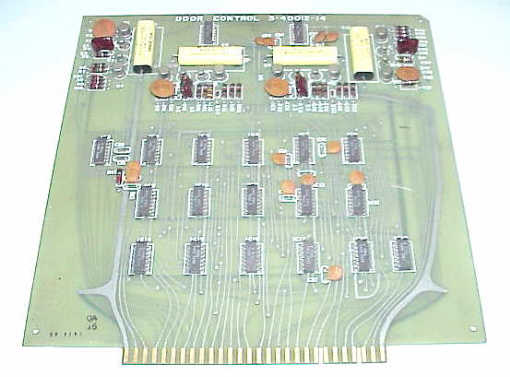

H-SS3-40012-14
HAUGHTON
BOARD, CIRCUIT. DOOR CONTROL. O.E.M. # 3-40012-14

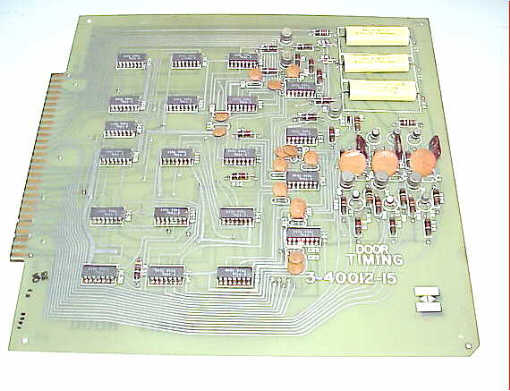

H-SS3-40012-15
HAUGHTON
BOARD, CIRCUIT. DOOR TIMING O.E.M. # 3-40012-15

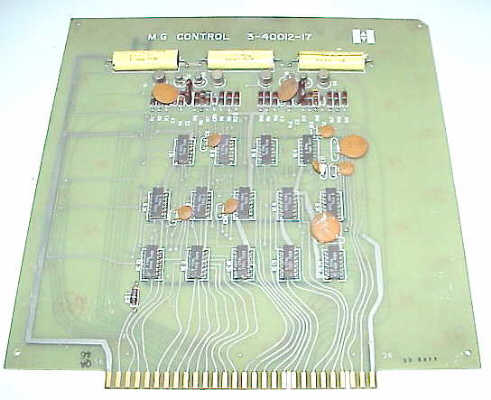

H-SS3-40012-17
HAUGHTON
BOARD, CIRCUIT. MG CONTROL O.E.M. # 3-40012-17

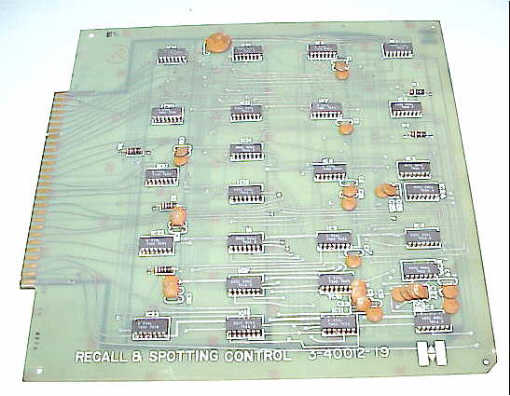

H-SS3-40012-19
HAUGHTON
BOARD, CIRCUIT. RECALL AND SPOTTING CONTROL O.E.M. # 3-40012-19

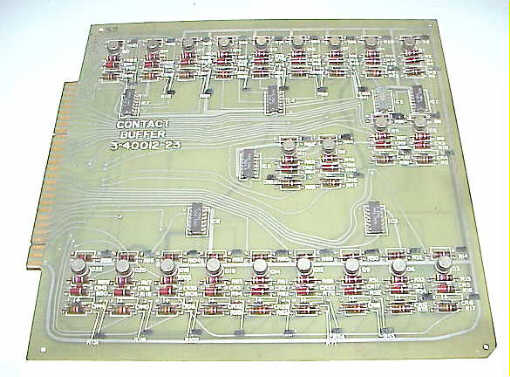

H-SS3-40012-23
HAUGHTON
BOARD, CIRCUIT. CONTACT BUFFER O.E.M. # 3-40012-23

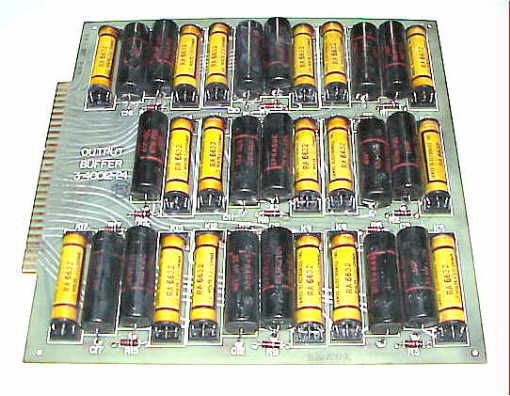

H-SS3-40012-24
HAUGHTON
BOARD, CIRCUIT, OUTPUT BUFFER. O.E.M. # 3-40012-24

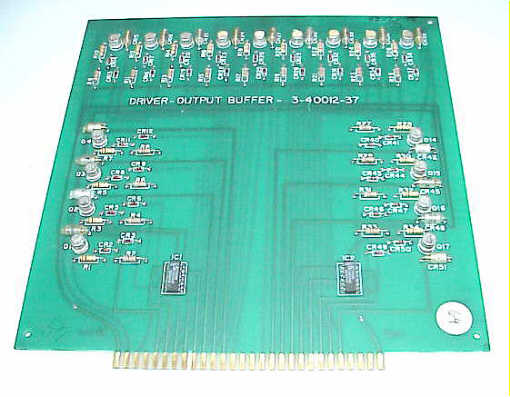

H-SS3-40012-37
HAUGHTON
BOARD, CIRCUIT, DRIVER OUTPUT BUFFER. O.E.M. # 3-40012-37

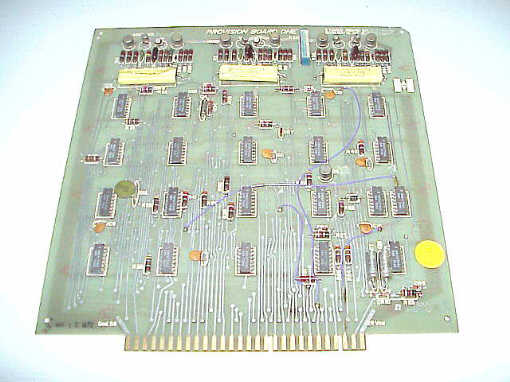

H-SS3-40012-53
HAUGHTON
BOARD, CIRCUIT. PROVISION BOARD #1 O.E.M # 3-40012-53

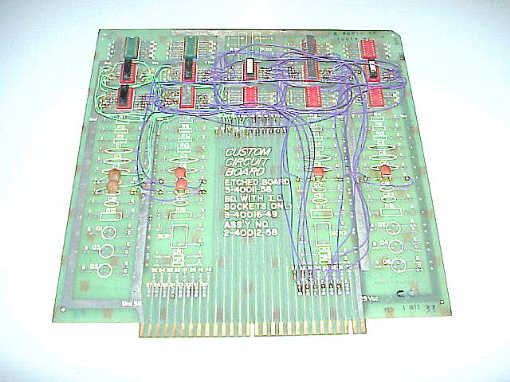

H-SS3-40012-58
HAUGHTON
BOARD, CIRCUIT. CUSTON CIRCUIT BOARD. O.E.M. # 3-40012-58 2-40012-58

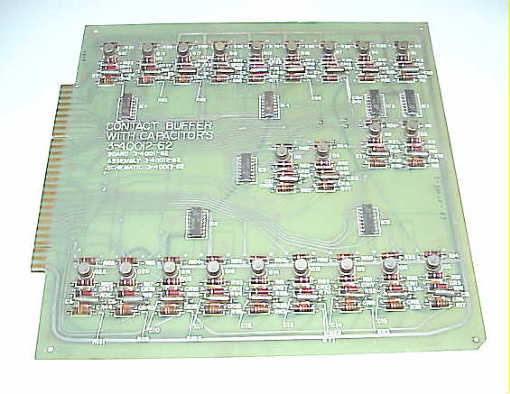

H-SS3-40012-62
HAUGHTON
3-40012-62 Printed Circuit Board

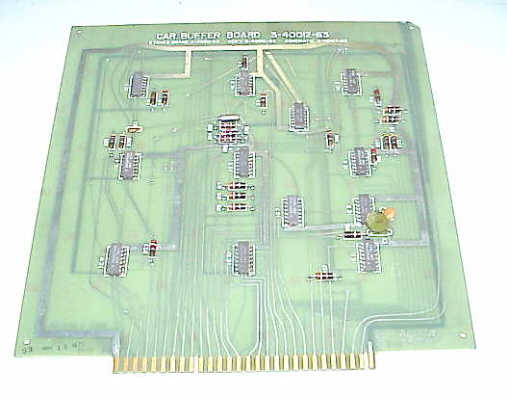

H-SS3-40012-63
HAUGHTON
3-40012-63 Printed Circuit Board

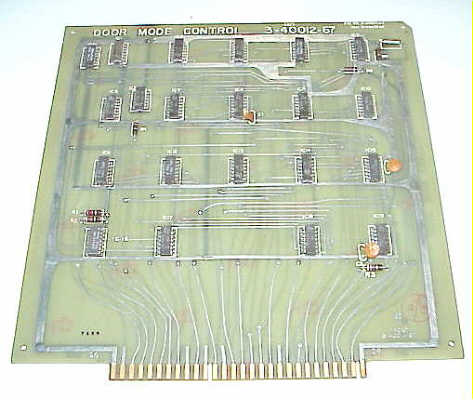

H-SS3-40012-67
HAUGHTON
3-40012-67 Printed Circuit Board

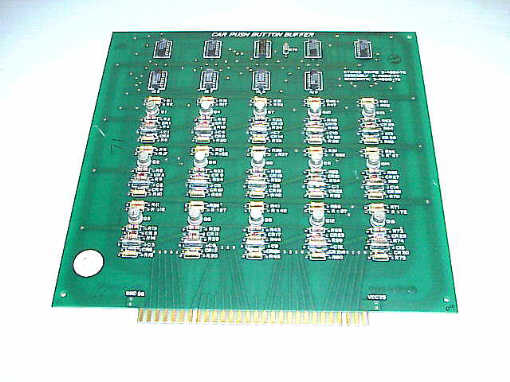

H-SS3-40012-76
HAUGHTON
BOARD, CIRCUIT, CAR BUTTON BUFFER O.E.M. # 3-40012-76

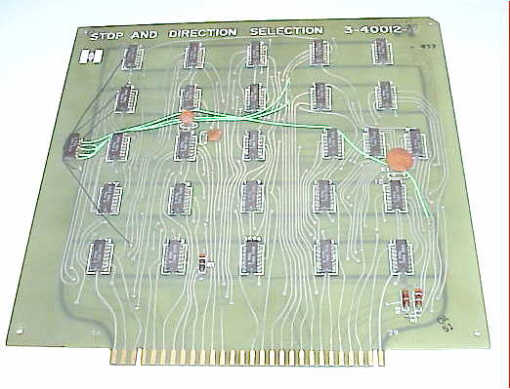

H-SS3-40012-79
HAUGHTON
3-40012-79 Printed Circuit Board

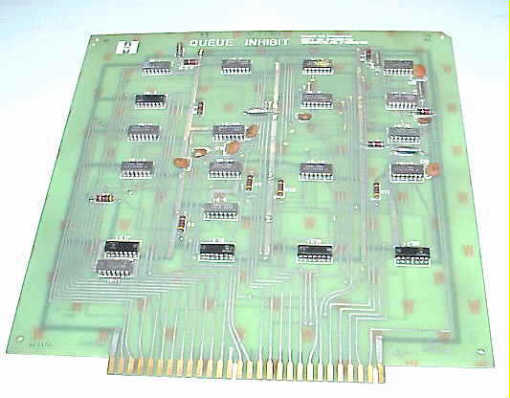

H-SS3-40012-80
HAUGHTON
BOARD, CIRCUIT, QUEUE INHIBITOR. O.E.M. # 3-40012-80
H-SS3-40012-81
HAUGHTON
3-40012-81 Printed Circuit Board
H-SS3-40012-83
HAUGHTON
BOARD, CIRCUIT, START CONTROL. O.E.M. # 3-40012-83

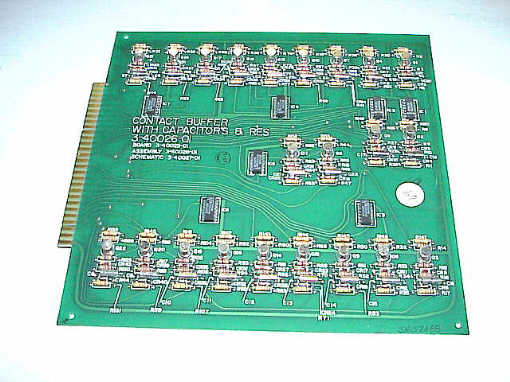

H-SS3-40026-01
HAUGHTON
BOARD, CIRCUIT, CAR BUFFER WITH CAPACITORS AND RESISTORS. O.E.M. # 3-40026-01

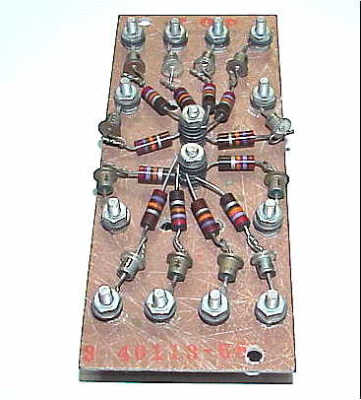

H-SS3-40113-68
HAUGHTON
ASSEMBLY, RESISTOR BOARD. O.E.M. # 3-40113-68

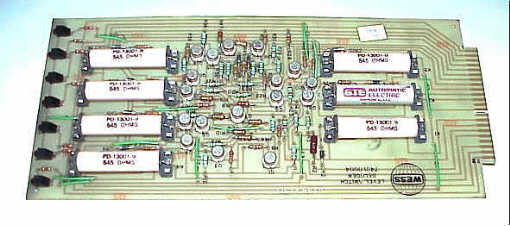

H-SS3-40143-00
HAUGHTON
CARD, SOLID STATE. EVC LEVELLING SWITCH DECODER. O.E.M. # 3-40143-00 76693
H-SS3-40143-01
HAUGHTON
BOARD, CIRCUIT, PRINTED, EVC/ELC AMPLIFIER O.E.M. # 3-40143-01 76696

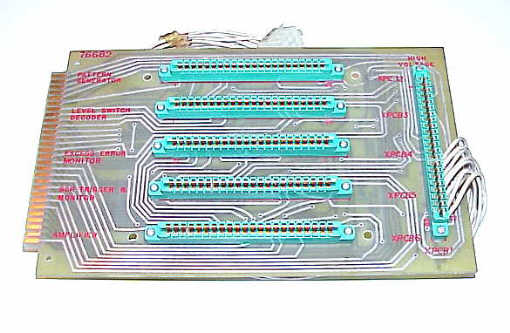

H-SS3-40153-79
HAUGHTON
BOARD, CIRCUIT, MOTHERBOARD, EVC O.E.M. # 76682-3 3-40153-79 WAS CERTIFIED # H-SS10

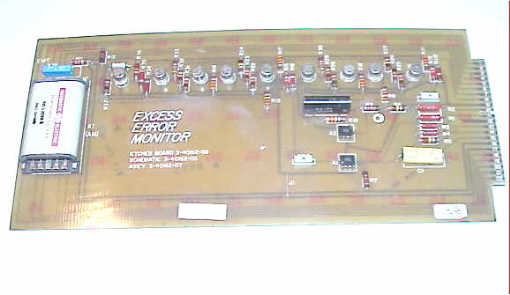

H-SS3-40162-07
HAUGHTON
BOARD, CIRCUIT, PRINTED, EVC/ELC EXCESS ERROR MONITOR O.E.M. # 3-40162-07

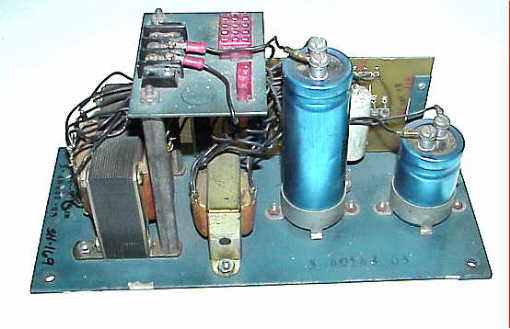

H-SS3-40163-03
HAUGHTON
ASSEMBLY, CIRCUIT BOARD, CAPACITOR, TRANSFORMER. FOR BOARD ONLY SEE 3-40163-17. O-E.M. #…

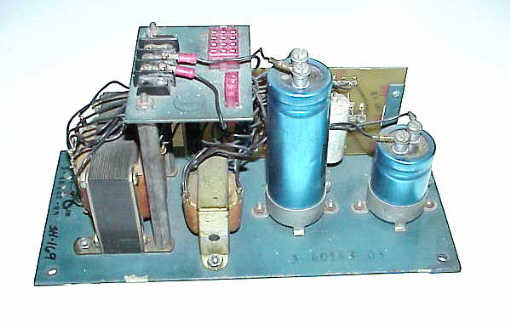

H-SS3-40163-17
HAUGHTON
BOARD, CIRCUIT. O.E.M. # 3-40163-17

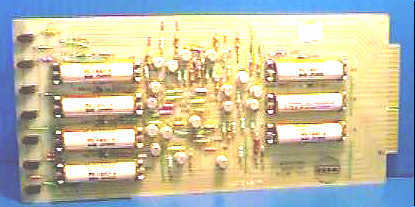

H-SS3-40181-58
HAUGHTON
3-40181-58 Printed Circuit Board H-SS07

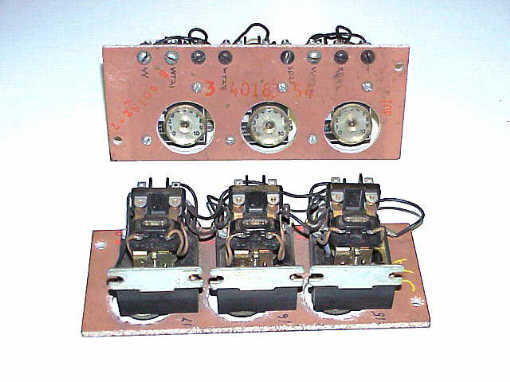

H-SS3-40183-54
HAUGHTON
ASSEMBLY. TIMER. O.E.M. # 3-40183-54

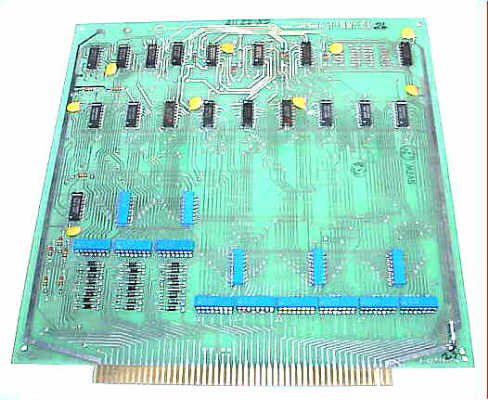

H-SS3-40221-69
HAUGHTON
BOARD, CIRCUIT, ELC PATTERN GENERATOR. O.E.M. # 3-40221-69 3-40221-65 3-40221-68 3-40000-…
H-SS3-40222-59
HAUGHTON
BOARD, CIRCUIT, EVC PATTERN GENERATOR. O.E.M. # 3-40222-59
H-SS3-40223-26
HAUGHTON
BOARD, CIRCUIT, POSITION HALL CALL BUFFER O.E.M. # 3-40223-26

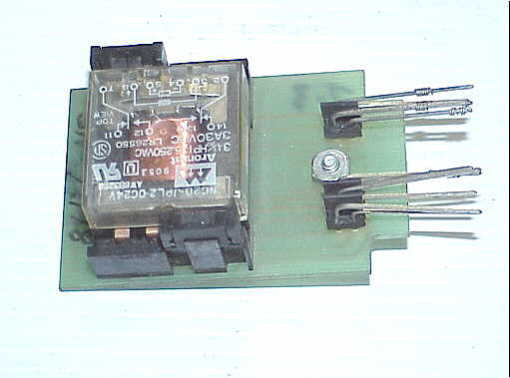

H-SS3-40223-85
HAUGHTON
BOARD, CIRCUIT. O.E.M. # 3-40223-85
H-SS3-40224-011
HAUGHTON
ASSEMBLY, BASE AND SOCKET FOR CJ1-6 TIMER ASSEMBLIES. O.E.M. # 3-40224-011

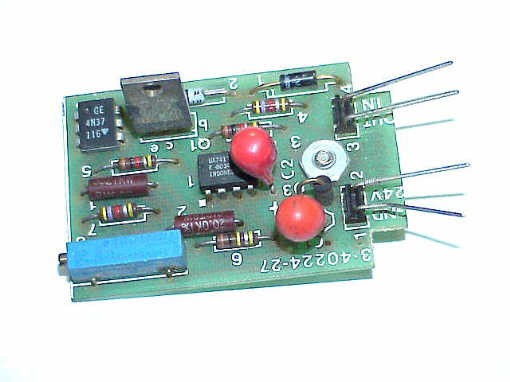

H-SS3-40224-27
HAUGHTON
BOARD, CIRCUIT. O.E.M. # 3-40224-27

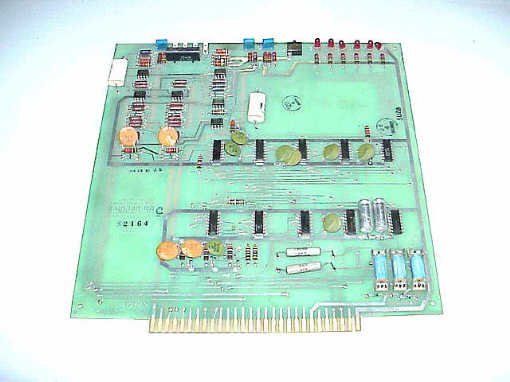

H-SS3-40229-98C
HAUGHTON
3-40229-98C Printed Circuit Board

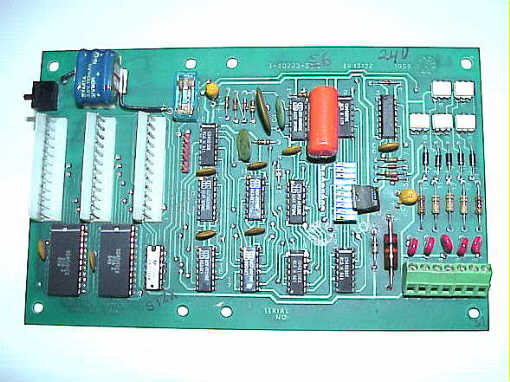

H-SS3-40233-13
HAUGHTON
BOARD, CIRCUIT, ELC PATTERN GENERATOR. O.E.M. # 3-40233-13)
H-SS3-40233-56
HAUGHTON
3-40233-56 Printed Circuit Board
H-SS3-40233-56
HAUGHTON
3-40233-56 Printed Circuit Board

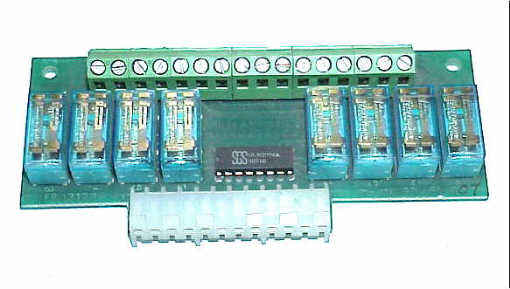

H-SS3-40233-63
HAUGHTON
3-40233-63 Printed Circuit Board

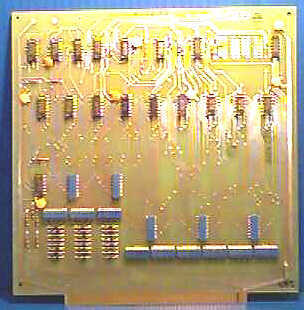

H-SS3-40239-26
HAUGHTON
3-40239-26 Printed Circuit Board

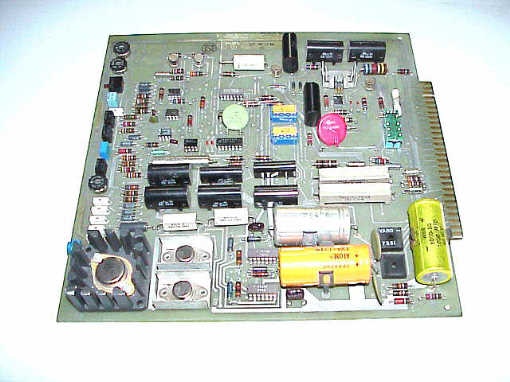

H-SS3-40246-69
HAUGHTON
BOARD, CIRCUIT, AMPLIFIER. O.E.M. # 3-40246-69 3-40221-63

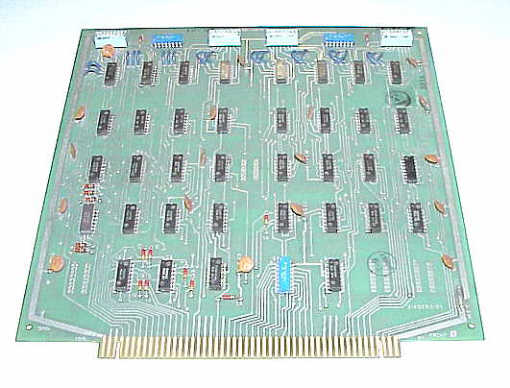

H-SS3-40250-02
HAUGHTON
3-40250-02 Printed Circuit Board

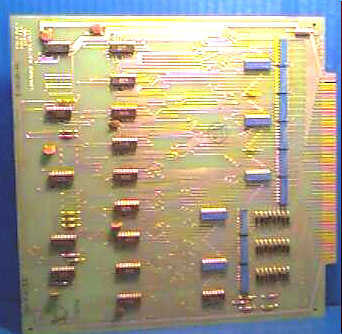

H-SS3-40250-05
HAUGHTON
3-40250-05 Printed Circuit Board

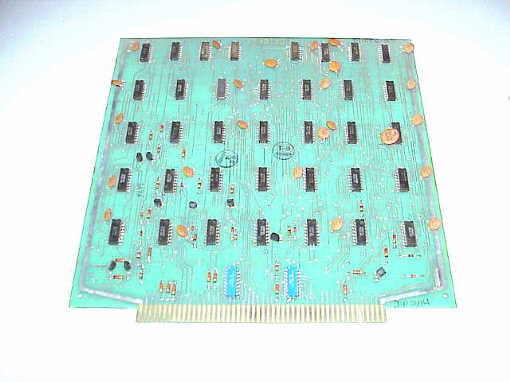

H-SS3-40250-21
HAUGHTON
BOARD, CIRCUIT, CAR CONTROL. O.E.M. # 3-40250-21

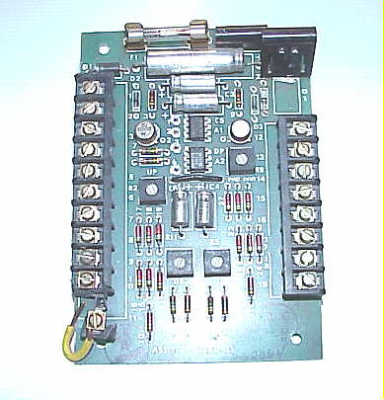

H-SS3-40250-31
HAUGHTON
3-40250-31 Printed Circuit Board

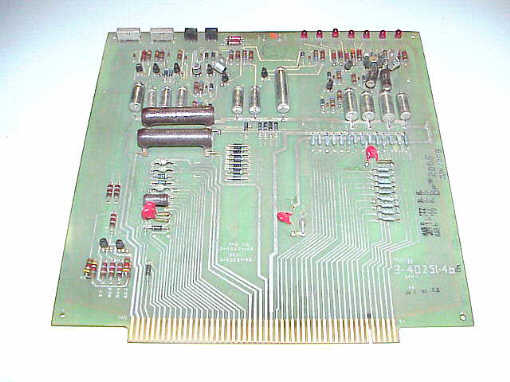

H-SS3-40251-46E
HAUGHTON
BOARD. CIRCUIT. O.E.M. # 3-40251-46E

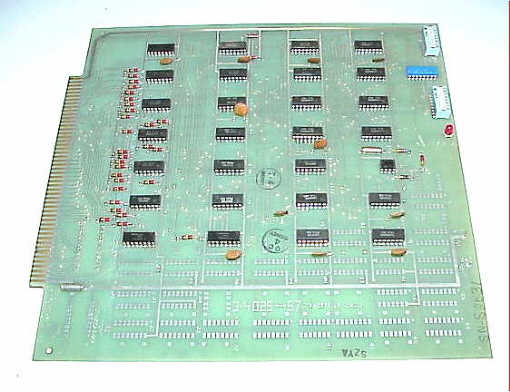

H-SS3-40254-57
HAUGHTON
3-40254-57 Printed Circuit Board

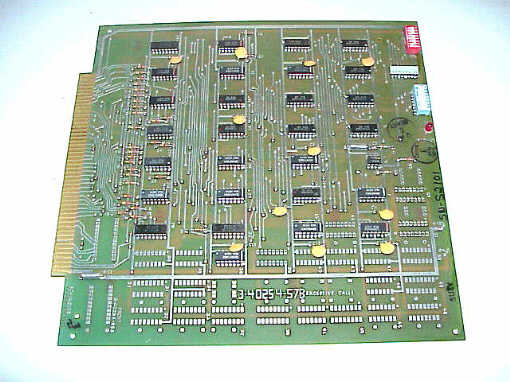

H-SS3-40254-57B
HAUGHTON (H-SS3-40254-57B

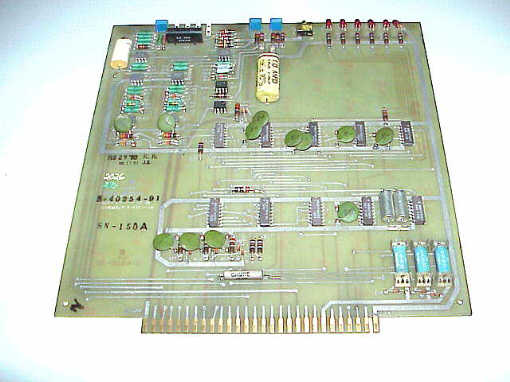

H-SS3-40254-91
HAUGHTON
BOARD, CIRCUIT. FAILURE DETECTOR. O.E.M. # 3-40254-91

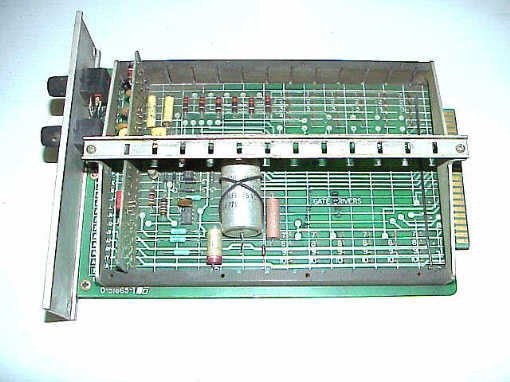

H-SS3-40254-93
HAUGHTON
3-40254-93 Printed Circuit Board

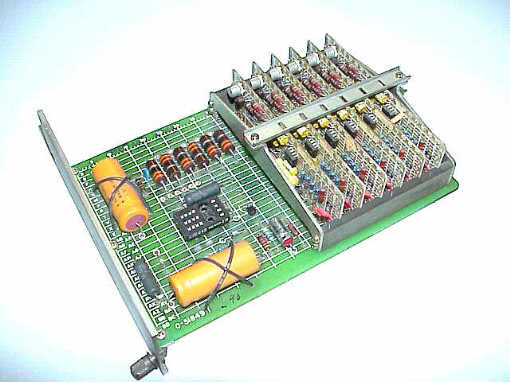

H-SS3-40254-94
HAUGHTON
3-40254-94 Printed Circuit Board

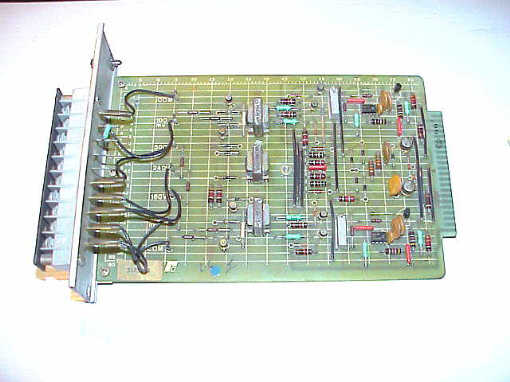

H-SS3-40255-26
HAUGHTON
BOARD, CIRCUIT. CVTD O.E.M. # 3-40255-26 051831-3

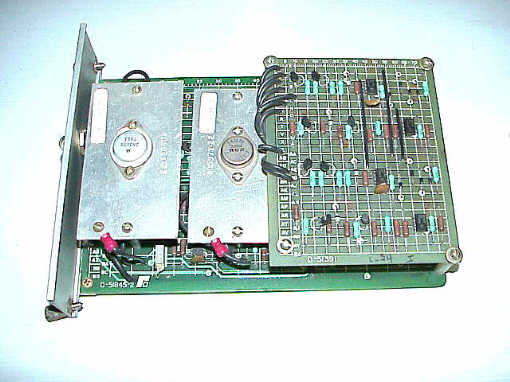

H-SS3-40255-30
HAUGHTON
3-40255-30 Printed Circuit Board

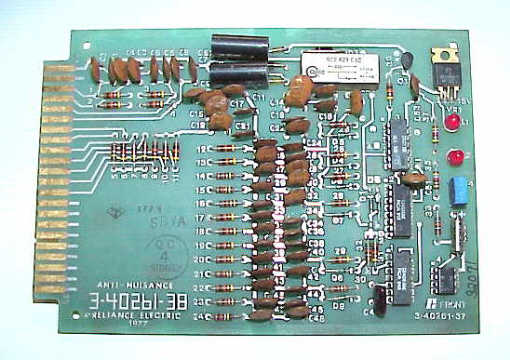

H-SS3-40261-38
HAUGHTON
3-40261-38 Printed Circuit Board

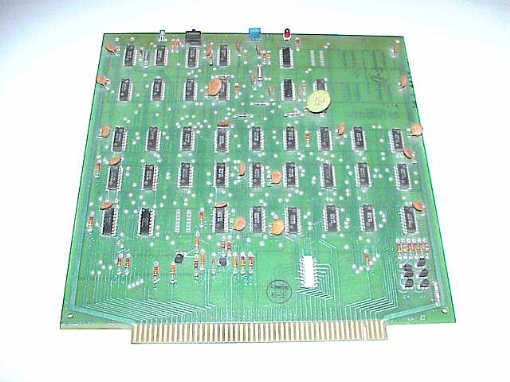

H-SS3-40269-85
HAUGHTON
3-40269-85 Printed Circuit Board

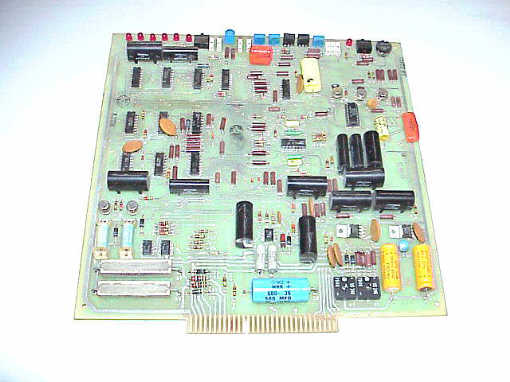

H-SS3-40277-78
HAUGHTON
3-40277-78 Printed Circuit Board

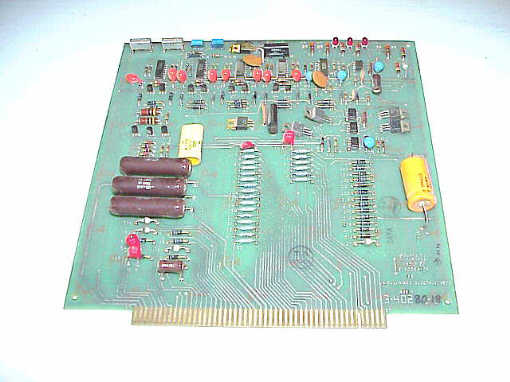

H-SS3-40280-18
HAUGHTON
3-40280-18 Printed Circuit Board

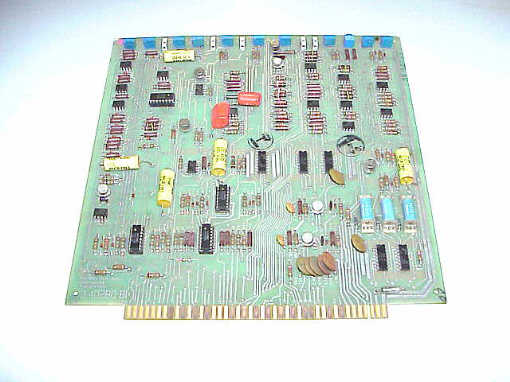

H-SS3-40280-81E
HAUGHTON
3-40280-81E Printed Circuit Board

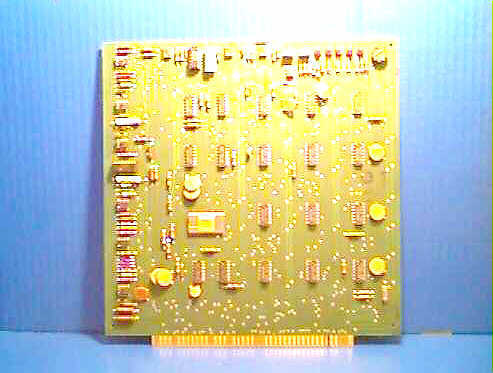

H-SS3-40280-85
HAUGHTON
3-40280-85 Printed Circuit Board

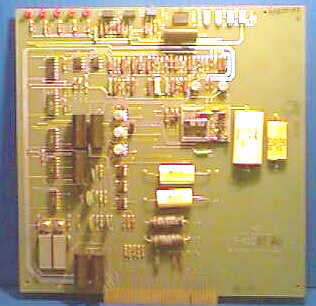

H-SS3-40281-60
HAUGHTON
BOARD, CIRCUIT O.E.M. # 3-40281-60

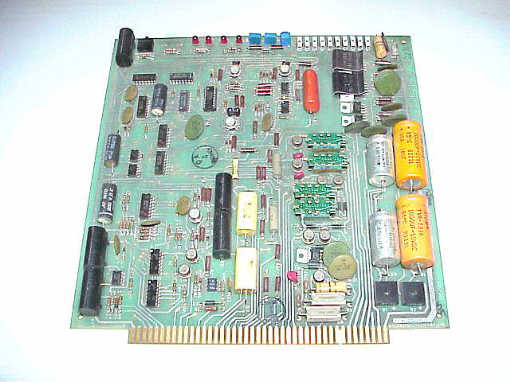

H-SS3-40290-10
HAUGHTON
BOARD, CIRCUIT O.E.M. # 3-40290-10

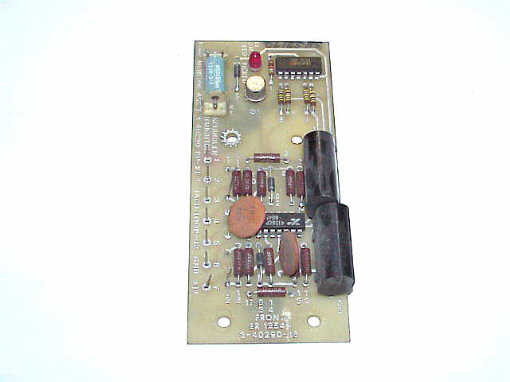

H-SS3-40290-18
HAUGHTON
CARD, CIRCUIT, LOOP MONITOR. O.E.M. # 3-40290-18

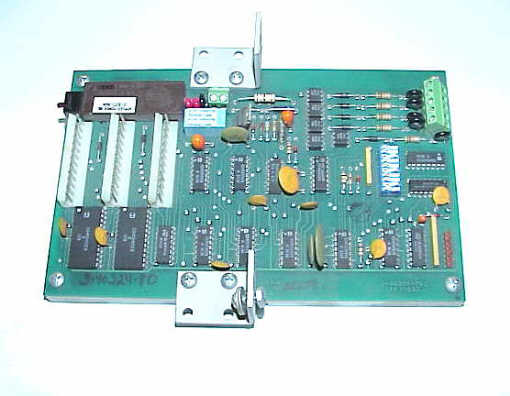

H-SS3-40324-80
HAUGHTON
BOARD, CIRCUIT, MOTHERBOARD, STEPPER. O.E.M. # 3-40324-80

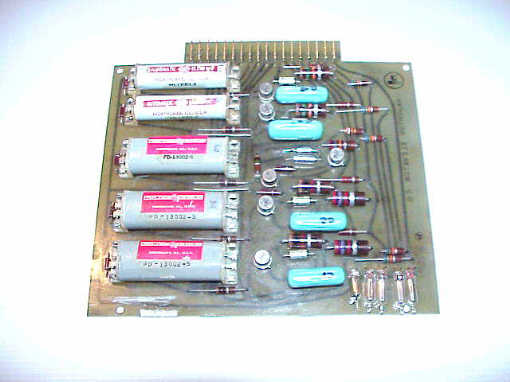

H-SS74261
HAUGHTON

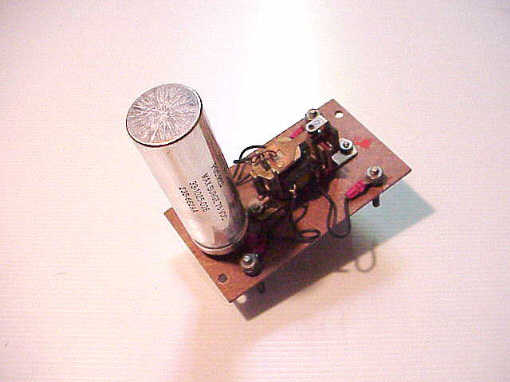

H-SS15
HAUGHTON

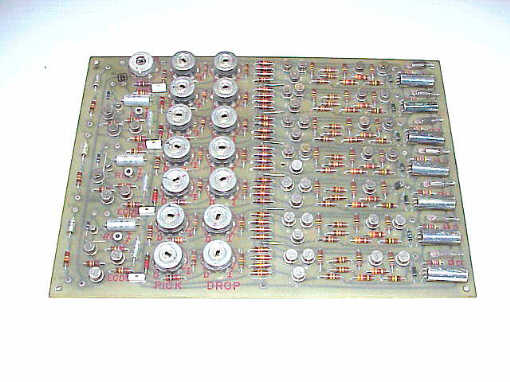

H-SS74269
HAUGHTON
BOARD, CIRCUIT. O.E.M. 74269

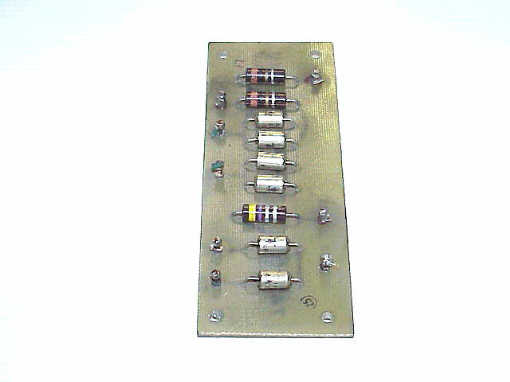

H-SS74280
HAUGHTON
CARD, CIRCUIT. O.E.M. # 74280
H-R1A1
HAUGHTON
FRAME. RELAY, USED ON 'AM' & 'AN' MODEL RELAYS. O.E.M. # 3-28842-02 OTHER I.D. 28842-C AD…

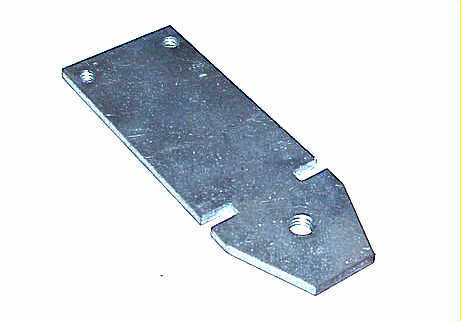

H-R1A3
HAUGHTON
ARMATURE. PLATED, USED WITH 'AN' & 'AM' RELAYS. O.E.M. # 3-28841-01 OTHER I.D. 28841-B AD…

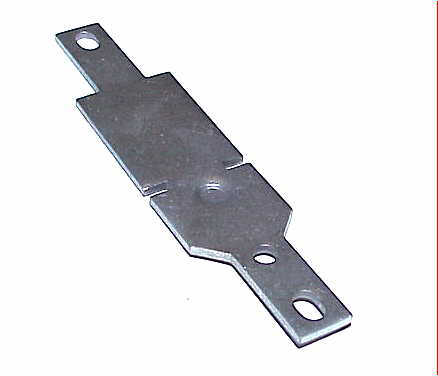

H-R1A3V
HAUGHTON
ARMATURE, PLATED, USED WITH TYPE 'BN' RELAYS.

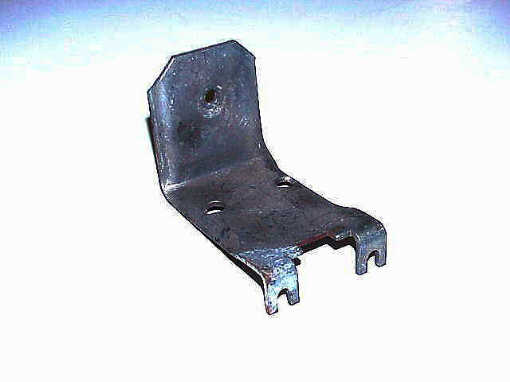

H-R1A4
HAUGHTON
FRAME. RELAY. STEEL. STAMPED, USED ON BN/CN 6 CONTACT RELAYS.

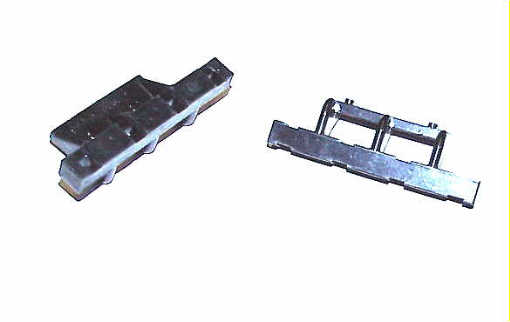

H-R1B1
HAUGHTON
CARRIER, CONTACT, MOULDED, HOLDS UP TO (4) CONTACTS. O.E.M. # 3-28764-02 OTHER I.D. 28764…
H-R1B2
HAUGHTON
GUIDE, CONTACT, MOULDED. USED WITH H-R1C1 & H-R2C1 CONTACTS. O.E.M. # 3-19487-03 OTHER I.…
H-R1B3

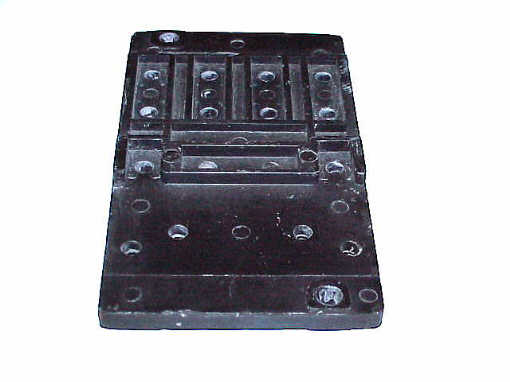

HAUGHTON
BASE, PHENOLIC, MOULDED, USED WITH AM/AN RELAYS. O.E.M. # 3-19162-14 CASTING NUMBER 19162W

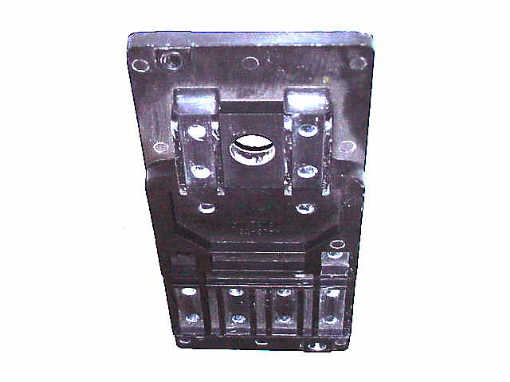

H-R1B4
HAUGHTON
BASE, PHENOLIC, MOULDED. USED WITH BN/CN RELAYS. O.E.M. # 3-19162-10 CASTING NUMBER 19162…
H-R1C1
HAUGHTON
CONTACT, MOVABLE, (2) CONTACT FINE SILVER TIPS. O.E.M. # 3-28763-02 OTHER I.D. 28763-E AD…

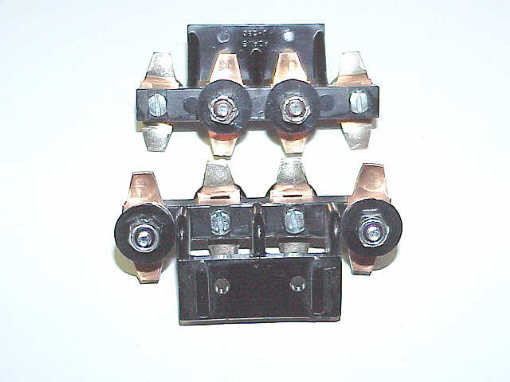

H-R1C1C
HAUGHTON

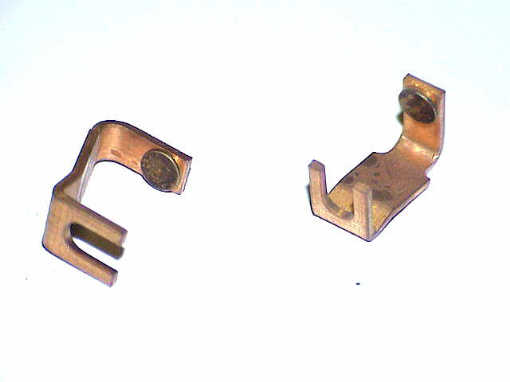

H-R1C2
HAUGHTON
CONTACT, STATIONARY, BRASS WITH FINE SILVER TIP, SHORT. O.E.M. # 3-20456-01 OTHER I.D. 20…
H-R1C3
HAUGHTON
CONTACT, STATIONARY, BRASS WITH FINE SILVER TIP, LONG. O.E.M. # 20456 OTHER I.D. 20456 AD…
H-R1P1
HAUGHTON
SCREW, ADJUSTING FOR 'AM-AN' RELAYS. 1 1/8" X 10-32 THREAD. O.E.M. # 3-17592-02 OTHER I.D…
H-R1S1
HAUGHTON
SPRING, COMPRESSION USED WITH H-R1C1 CONTACT ASSEMBLIES. O.E.M. # 22100 ADAMS J-20S1

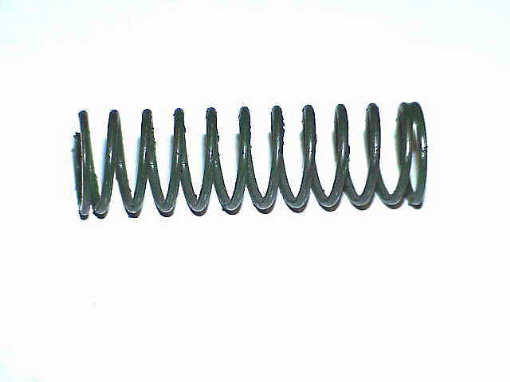

H-R1S2
HAUGHTON
SPRING, COMPRESSION, KICK-OFF USED WITH 'BN' SERIES RELAYS. O.E.M. # 3-08447-03
H-R2B1
HAUGHTON
BASE, CONTACT, BAKELITE, HOLDS 2 CONTACTS, USED ON 'AT' RELAYS. O.E.M. # 19486 ADAMS J-22…

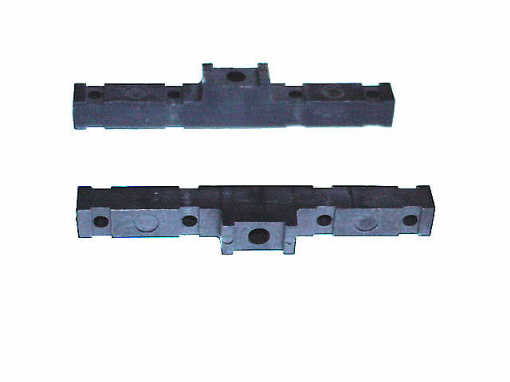

H-R2B2
HAUGHTON
BASE, CONTACT, BAKELITE, HOLDS (4) CONTACTS, USED ON 'AT' AND OTHER RELAYS. O.E.M. # 1948…

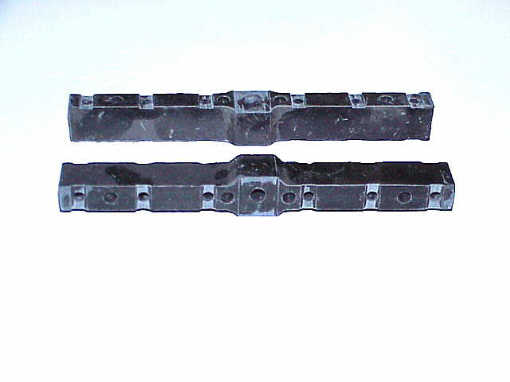

H-R2B3
HAUGHTON
BASE, CONTACT, BAKELITE, HOLDS (6) CONTACTS, USED ON 'AT' AND OTHER RELAYS. O.E.M. # 3-19…
H-R2C1
HAUGHTON
CONTACT, MOVABLE, HEAVY DUTY. (2) 3/8" FINE SILVER TIPS. O.E.M. # 3-28763-01 ADAMS J-22C3
H-R2C2
HAUGHTON
H-R2C3
HAUGHTON
CONTACT, MOVABLE, BRASS WITH 1/4" FINE SILVER TIP. O.E.M.# 3-18266-01

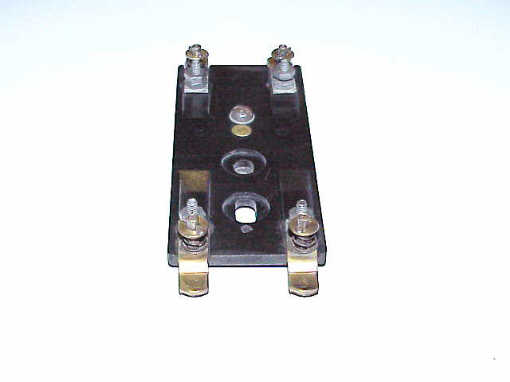

H-R2C3A
HAUGHTON
FINGERBOARD, RELAY, AS SHOWN.
H-R2C3B
HAUGHTON
FINGERBOARD, PHENOLIC, MOULDED.
H-R2C4
HAUGHTON
CONTACT, MOVABLE, 3/8" DIAMETER FINE SILVER TIP. O.E.M. # 3-18266-02
H-R2G1
HAUGHTON
H-R2G2
HAUGHTON
WASHERS, SET OF TWO, (1) WITH ROUND HOLE, (1) WITH RECTAGULAR HOLE. O.E.M. #'S 3-20696-01…

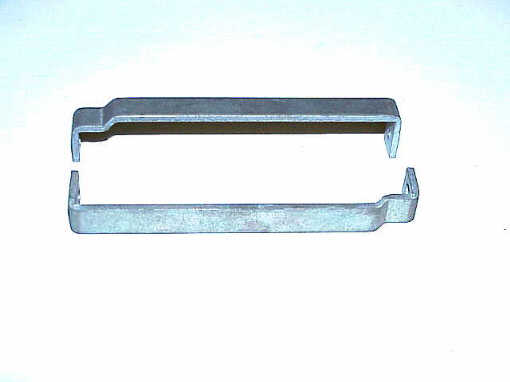

H-R2K1
HAUGHTON

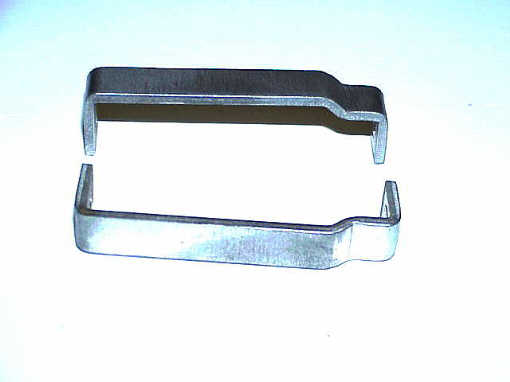

H-R2K2
HAUGHTON

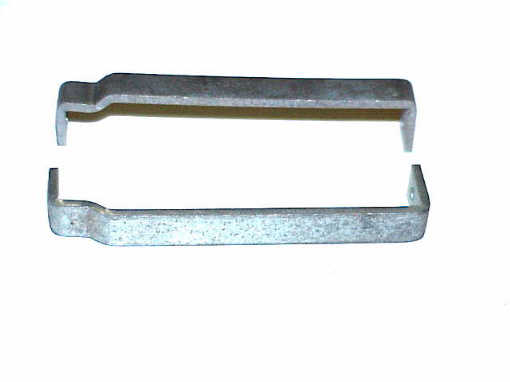

H-R2K3
HAUGHTON
H-R2K4
HAUGHTON
H-R2M1
HAUGHTON
MAGNET, BLOWOUT, USED ON TYPE "AN-65BB" RELAYS. O.E.M. # 3-40129-05
H-R2W1
HAUGHTON
WASHER, PHENOLIC, INSULATING, COIL. 1/16" THICK. O.E.M. # 34-1155-003

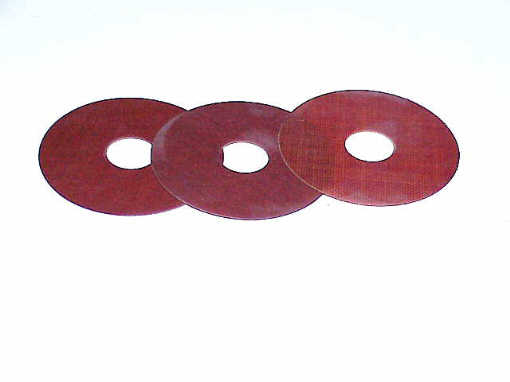

H-R2W2
HAUGHTON
WASHER, PHENOLIC, INSULATING, COIL CORE, .016 THICK. O.E.M. # 3-40114-10
H-R2W3
HAUGHTON
WASHER, WAVE, STEEL, COIL CORE. O.E.M. # 33-0726-01

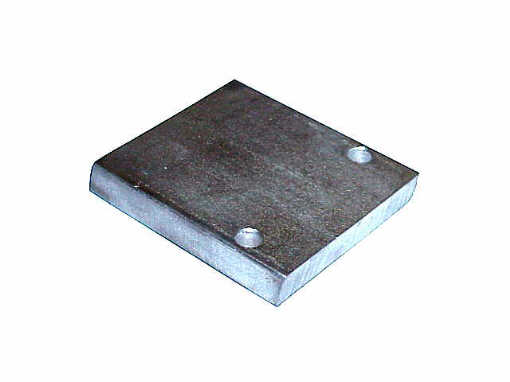

H-R2Z1
HAUGHTON
ARMATURE, STEEL, PLATED, USED ON TYPE "AT" RELAYS WITH BRASS ANTI- RESIDUAL PIECE. O.E.M.…
H-R2Z1A
HAUGHTON
PIECE, COPPER, ANTI-RESIDUAL, USED ON TYPE "AT" RELAY ARMATURE.
H-R2Z2
HAUGHTON
ARM, CONTACT BRIDGE, TYPE "AT" RELAYS. O.E.M. # 3-28292-00

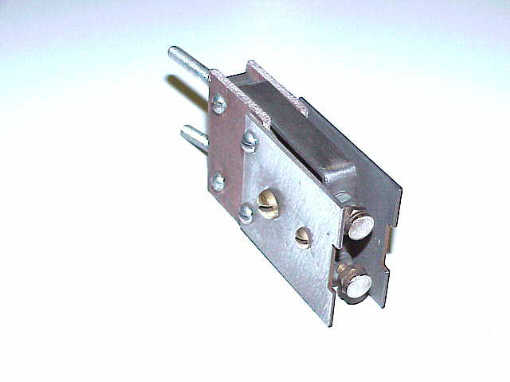

H-R2Z3
HAUGHTON
ASSEMBLY, ARC SUPPRESSOR, USED ON BLOWOUT FOR TYPE "AT" RELAYS. O.E.M. # 35-0833-001
H-R3A1`
HAUGHTON

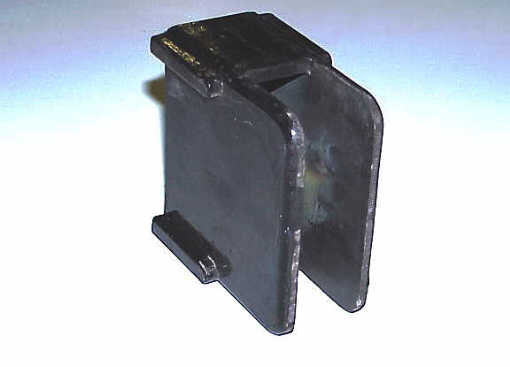

H-R3H1
HAUGHTON
DEFLECTOR, ARC, MOULDED. USED ON TYPE "F" CONTACTORS.
H-R3L5
HAUGHTON
LEAD O.E.M. # 6862-H

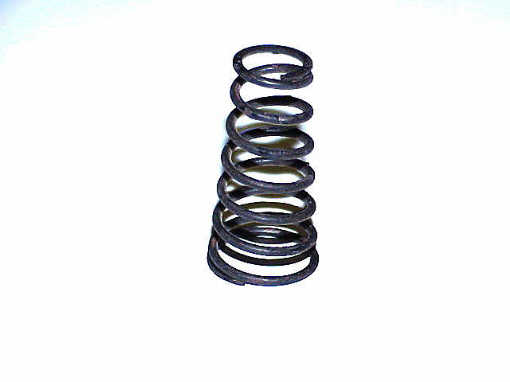

H-R3S1
HAUGHTON
SPRING, STEEL, CONICAL, USED ON TYPE "F" CONTACTORS.

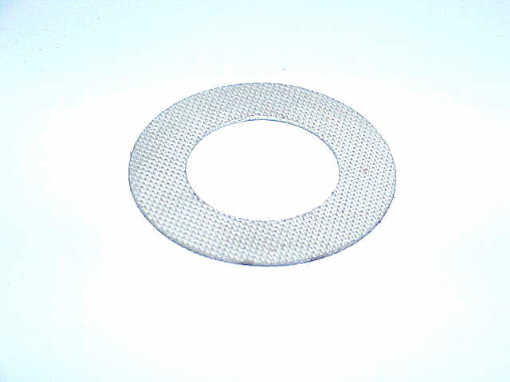

H-R3W1
HAUGHTON
WASHER, PHENOLIC, INSULATING, COIL CORE.

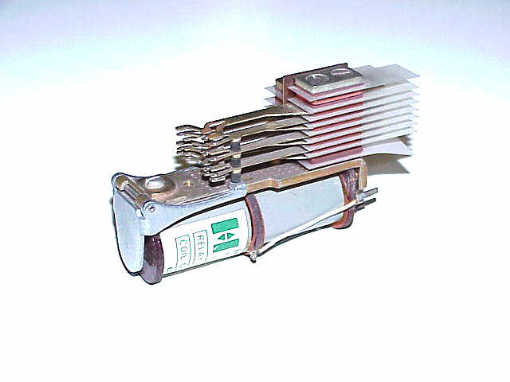

H-R400
HAUGHTON
RELAY, TELEPHONE. COIL # 44-1032-004 O.E.M. # 36353

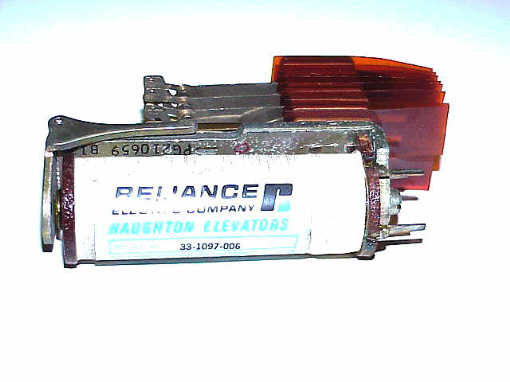

H-R406
HAUGHTON
RELAY, TELEPHONE. COIL # 44-1032-003 O.E.M. # 33-1097-006

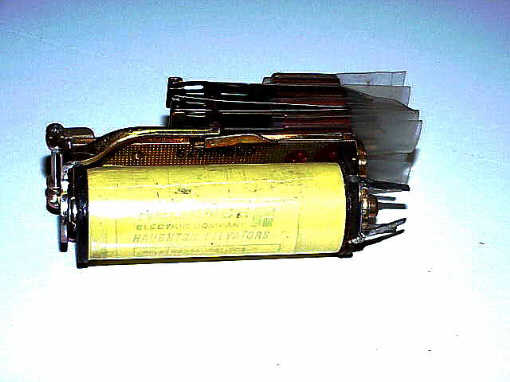

H-R406A
HAUGHTON
RELAY, TELEPHONE. COIL # 3-40177-52 O.E.M. # 33-1097-006

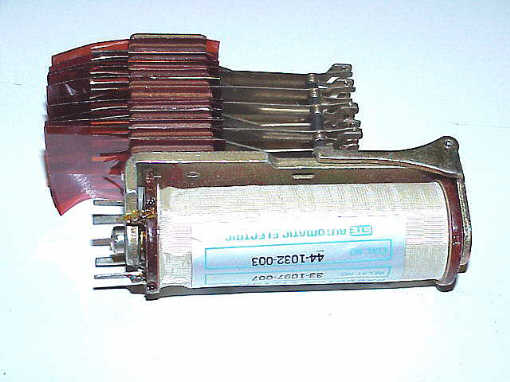

H-R407
HAUGHTON
RELAY, TELEPHONE. COIL # 44-1032-003 O.E.M. # 33-1097-007

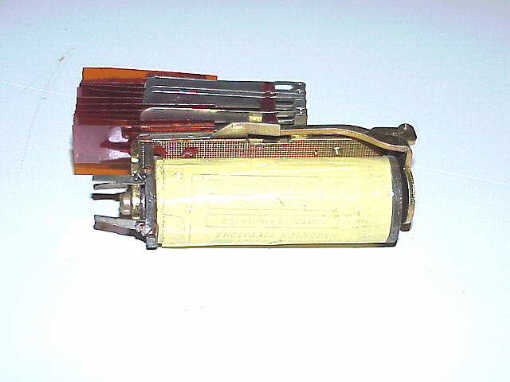

H-R407A
HAUGHTON
RELAY, TELEPHONE. COIL # 3-40177-52 O.E.M. # 33-1097-007

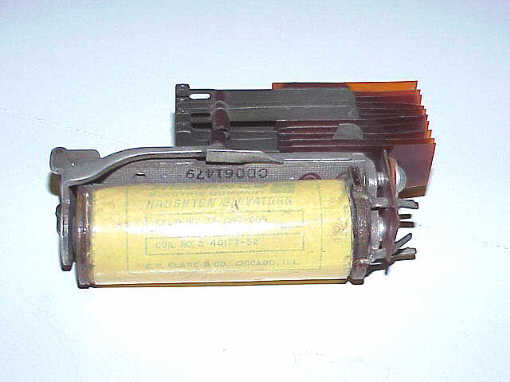

H-R409
HAUGHTON
RELAY, TELEPHONE. COIL # 3-40177-52 O.E.M. # 33-1097-009

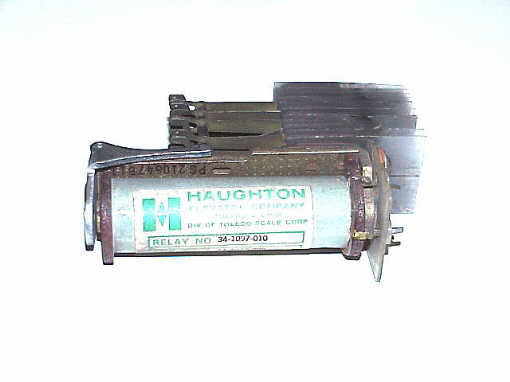

H-R410
HAUGHTON
RELAY, TELEPHONE. COIL # 44-1032-005 O.E.M. # 34-1097-010

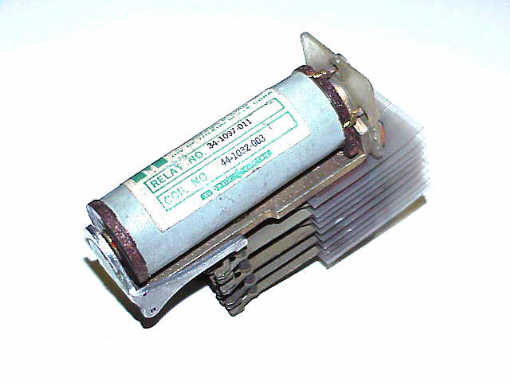

H-R411
HAUGHTON
RELAY, TELEPHONE. COIL # 44-1032-003 O.E.M. # 34-1032-011
H-R414
HAUGHTON
RELAY, TELEPHONE. COIL # 3-40177-52 O.E.M. # 34-1032-014

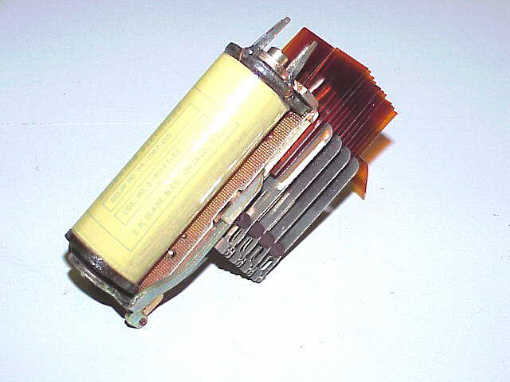

H-R415
HAUGHTON
RELAY, TELEPHONE. COIL # 3-40177-52 O.E.M. # 34-1032-015

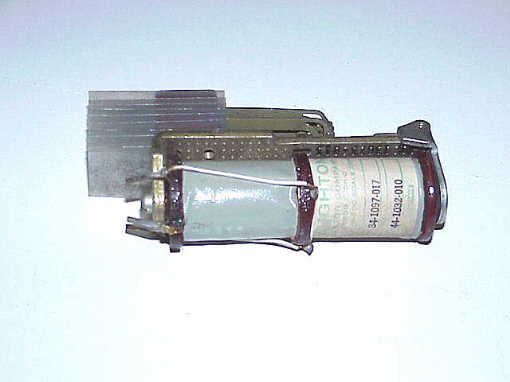

H-R417
HAUGHTON
RELAY, TELEPHONE. COIL # 44-1032-010 O.E.M. # 34-1097-017

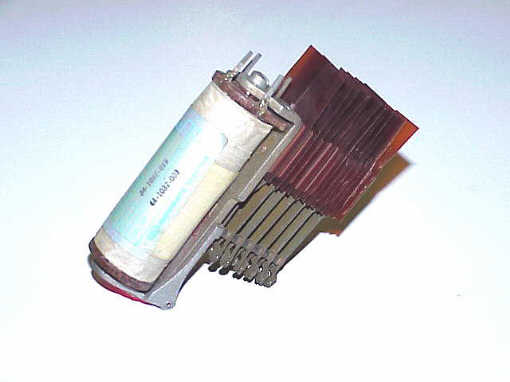

H-R419
HAUGHTON
RELAY, TELEPHONE. COIL # 44-1032-003 O.E.M. # 34-1097-019

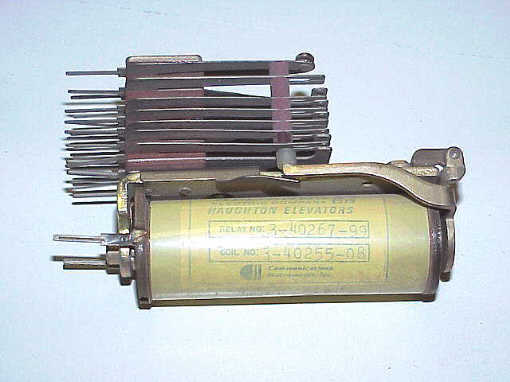

H-R420
HAUGHTON
RELAY, TELEPHONE. COIL # 3-40255-08 O.E.M. # 3-40267-99

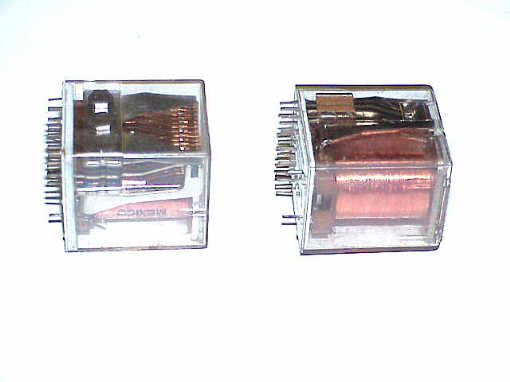

H-R440
HAUGHTON
RELAY, PLUG-IN, 6PDT, 915 OHM COIL

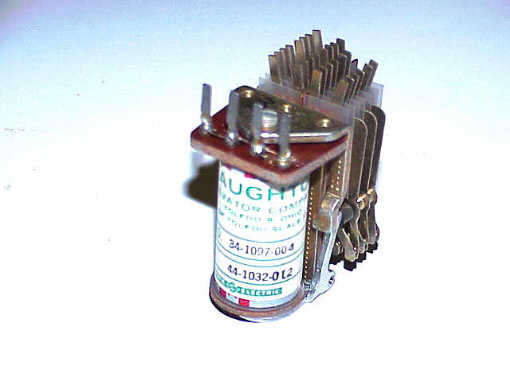

H-R444
HAUGHTON
RELAY, TELEPHONE. COIL # 44-1032-012 O.E.M. # 34-1097-004

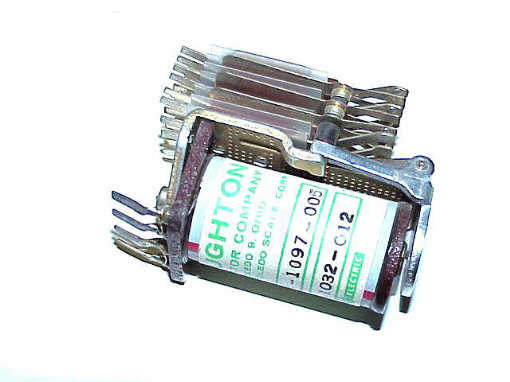

H-R445
HAUGHTON
RELAY, TELEPHONE. COIL # 44-1032-012 O.E.M. # 34-1097-005
H-R500
HAUGHTON
ARM. SWITCH, DIRECTION, 4 1/4" X 1", 3/4" X 1" ANGLE, 1 SLOT, 1 TAPPED HOLE.
H-R501
HAUGHTON
LEVER, RESET. 2 1/4" X 3/8" WITH 3/8" X 3/8" NOTCH. O.E.M. # 3-28119-03

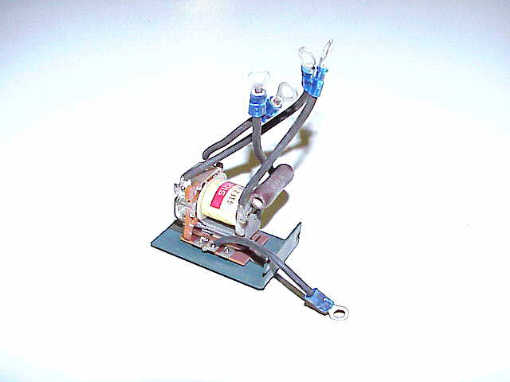

H-R502
HAUGHTON
RELAY, SIGMA, PRE-WIRED WITH FRAME. SIGMA RELAY # 41FZ-80432 O.E.M. # 3-36295-9
H-R503
HAUGHTON
BRACKET, RELAY. 2 7/8" X 1/2"
H-R504
HAUGHTON
CONTACT, STATIONARY, CONTACTOR. 3 1/16" X 1" WITH 1" X 5/8" FINE SILVER TIP, 9/16" X 3/8"…
H-R505
HAUGHTON
CONTACT, MOVABLE, CONTACTOR. 1" X 5/8" X 3/8" FINE SILVER, (2) TAPPED HOLES.

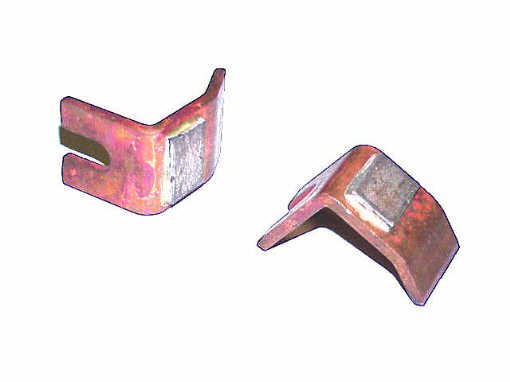

H-R506
HAUGHTON
CONTACT, STATIONARY, CONTACTOR. 1 1/2" X 1" WITH 3/4" X 1/2" FINE SILVER TIP. 9/16" X 3/8…
H-R507
HAUGHTON
CONTACT, MOVABLE, CONTACTOR. 3/4" X 1/2" X 3/8" WITH (2) TAPPED HOLES. O.E.M. # 3-20397-00
H-R508
HAUGHTON
ARM, LATCH, 2 3/8" X 7/16", WIDE END 1" ACROSS. 2 SLOTTED HOLES. O.E.M. # 28843
H-D28
HAUGHTON
OEM; 35-2551-006 Roller with bushing.
H-W01
HAUGHTON
OEM: 3-40157-63 Hanger roller 3 11/16" dia., with .6299 bearing bore. This roller is manu…
H-W03
HAUGHTON
OEM: 3-40134-75 Upthrust roller, 3 3/8" dia., 3/4" wide with .6299 bearing bore.
H-W04
HAUGHTON
OEM: 33-1229-03 Idler sheave for car door and safety edge retarctor. 1 7/8" dia., 1/2" wi…
H-W05
HAUGHTON

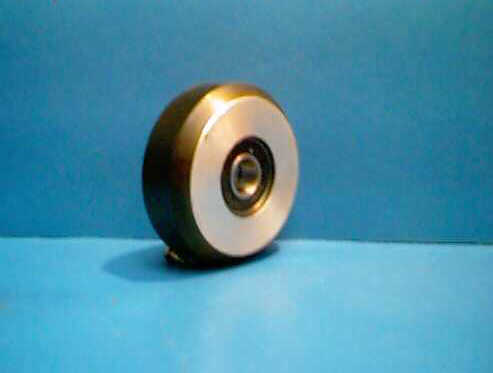

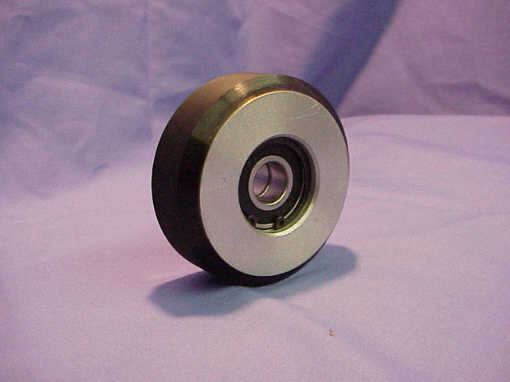

H-W10
HAUGHTON
OEM: 3-40150-71 ADAMS: J420/J4205 Counterweight roller guide wheel. 3 1/2" dia. 1 5/16" w…
H-W10
HAUGHTON
OEM: 3-40150-71 ADAMS: J420/J4205 Counterweight roller guide wheel. 3 1/2" dia. 1 5/16" w…

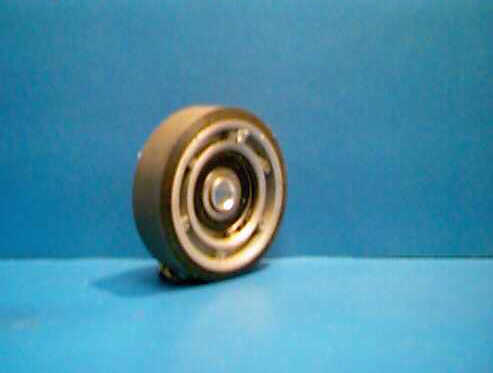

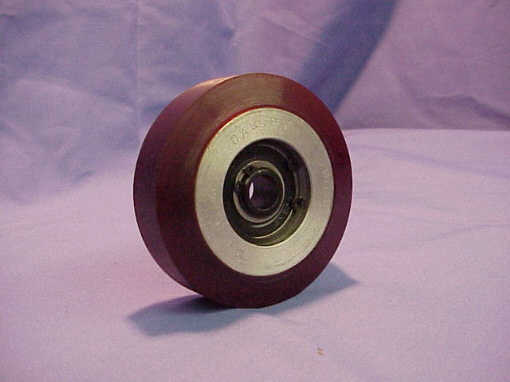

H-W11
HAUGHTON
OEM: 3-40158-67 ADAMS: J4225 Roller guide wheel, 3 1/2"diameter, 1 1/16" wide with single…
H-W11
HAUGHTON
OEM: 3-40158-67 ADAMS: J4225 Roller guide wheel, 3 1/2"diameter, 1 1/16" wide with single…

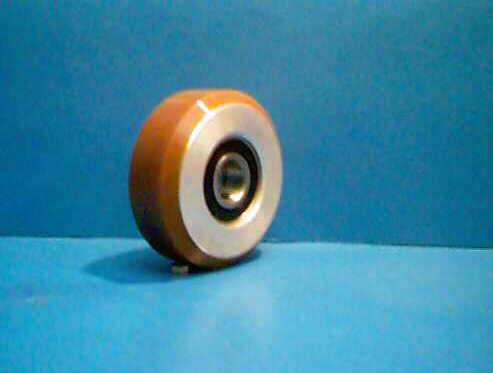

H-W12
HAUGHTON
OEM: 3-40196-74 ADAMS: J423/4235 Roller guide wheel 3 1/2" dia. , 1 5/16" wide with singl…

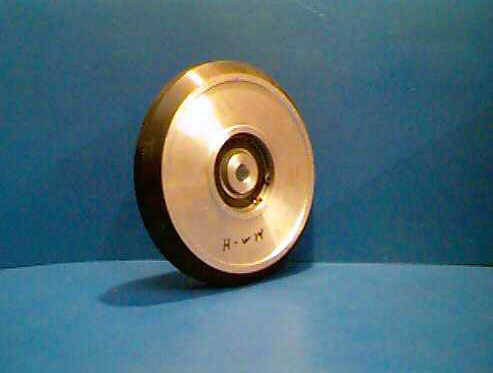

H-W14
HAUGHTON
OEM: 35-1159-002 ADAMS: J-425-/J4255 Roller guide wheel. 8" dia., 1 3/8" wide width .630…

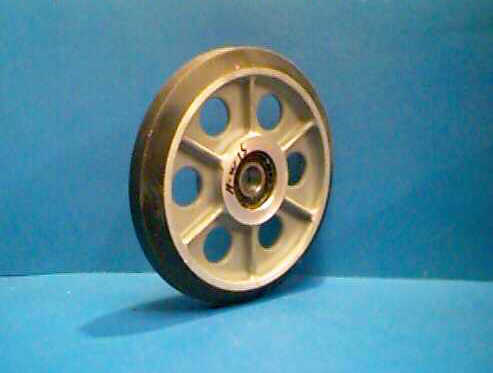

H-W15
HAUGHTON
OEM: 3-19512-12 ADAMS: J426/J4265 Roller guide wheel. 8" dia., 1 3/8" wide with .7874 bea…
H-S02
HAUGHTON
CONTACT, STAINLESS STEEL, VERNIER SELECTORS. LENGTH= 1 7/32" CONTACT SURFACE= 7/16" O.E.M…
H-S04
HAUGHTON
CONTACT, STAINLESS STEEL, VERNIER SELECTORS. LENGTH= 2 1/2" CONTACT SURFACE= 1/2" O.E.M.…
H-S04A
HAUGHTON
CONTACT, STAINLESS STEEL, VERNIER SELECTORS. LENGTH= 2 3/8" CONTACT SURFACE= 3/8" O.E.M.…
H-S06
HAUGHTON
CONTACT, STAINLESS STEEL, VERNIER SELECTORS. LENGTH= 2 3/4" CONTACT SURFACE= 5/8" O.E.M.…
H-S07
HAUGHTON
CONTACT, STAINLESS STEEL, VERNIER SELECTORS. LENGTH= 2 1/4" CONTACT SURFACE= 1" O.E.M. #3…
H-S08
HAUGHTON
CONTACT, STAINLESS STEEL, VERNIER SELECTORS. LENGTH= 3 5/8" CONTACT SURFACE= 1 1/2" O.E.M…
H-S12
HAUGHTON
CONTACT, SELECTOR. 3/8" SILVER TIP, 1 13/16" THREADED STEM. O.E.M. # 3-20310-01
H-S13
HAUGHTON
CONTACT, SELECTOR. 3/8" SILVER TIP, 1 9/16" THREADED STEM. O.E.M. # 3-16562-08
H-S13A
HAUGHTON
CONTACT, SELECTOR. 3/8" SILVER TIP, 1" OVERALL, 3/4" STEM, THREADED 5/8"
H-S13B
HAUGHTON
CONTACT, STATIONARY, SELECTOR. 2 5/8" OVERALL WITH 3/8" X 3/16" FINE SILVER TIP. O.E.M. #…
H-S17
HAUGHTON
INSULATOR, CONTACT. 5/8" SQUARE X 3/8" . 1/2" WIDE X 5/8 LONG GROOVE.
H-S18
HAUGHTON
INSULATOR, CONTACT. 5/8" SQ. X 3/8" , 3/16 HOLE. O.E.M. # 3-19360-03
H-S19
HAUGHTON
INSULATOR, CONTACT. 5/8" SQUARE X 1/4", 3/16" HOLE OEM: 3-19360-04
H-S25
HAUGHTON
SPRING, CLUTCH. 1/2" X 3/8" , 8 ACTIVE TURNS. O.E.M. # 22080
H-S27
HAUGHTON
SPRING, SELECTOR, VERNIER 1 1/8" X 1/2", 8 ACTIVE TURNS O.E.M. # 8447
H-S28
HAUGHTON
WASHER, BRONZE, CLUTCH. 2" X 1/16", 1 1/16" HOLE, (3) 3/16" MOUNTING HOLES. O.E.M. # 14739
H-S29
HAUGHTON
WASHER, STEEL, SPECIAL. 2 1/8" X 1/8", 15/16" HOLE, (3) 1/4" COUNTERSUNK HOLES. O.E.M. #…
H-S40
HAUGHTON
SWITCH, SELECTOR, ASSEMBLED WITH INSULATOR AND STEEL FRAME. O.E.M. # 4-10052-04
H-S45
HAUGHTON
SWITCH, SELECTOR, (1) NORMALLY OPEN (1) NORMALLY CLOSED CONTACT MARKED 19476A ON CAM.
H-S48
HAUGHTON
GEAR, PHENOLIC, MACHINED. 3 1/8" X 1/2", 1 1/2" COUNTERBORE, 3/4" HOLE, (4) 3/16" MOUNTIN…
H-S50
HAUGHTON
MOTOR, ADVANCER, SELECTOR. SLO-SYN MODEL SS-150, 120 VAC, .4 AMP, 50/60 HERTZ, 150 OZ. TO…
