A.B. See Parts
127 A.B. See elevator & escalator parts. Click any item for specifications and to request a quote.

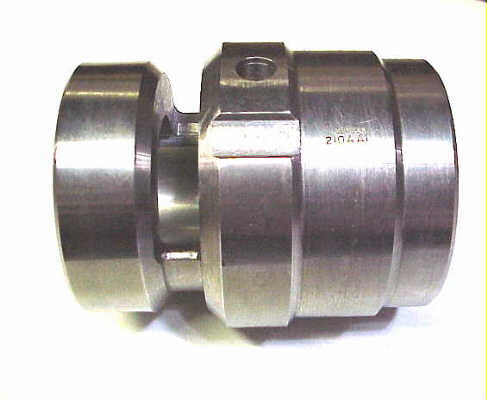

ABS-BE01
A.B. SEE
BEARING, BRONZE SLEEVE. 1.500" X 4.000" WITH 1.000" BORE. O.E.M. # 125-A
ABS-BE02
A.B. SEE
BEARING, BRONZE SLEEVE. 2.875" X 7.000" WITH 1.875" BORE. O.E.M. # 5-125
ABS-BE03
A.B. SEE
BEARING, BROZE SLEEVE. 2.4375" X 6.000" WITH 1.6875" BORE.
ABS-BE04
A.B. SEE
BERAING, BRONZE SLEEVE. 4.500" X 6.500" WITH 2.750" BORE.
ABS-BE05
A.B. SEE
BEARING, BRONZE SLEEVE. 4.750" X 6.000" WITH 2.375" BORE.

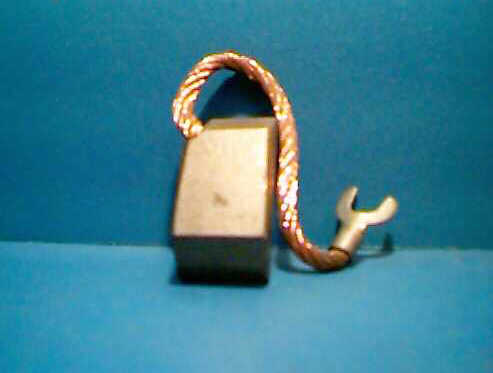

ABS-BR01
A.B.SEE Brush
OEM: Length 2.00" Width 1.00" Thickness 0.625" Graphite
ABS-BR02
A.B.SEE Brush
OEM: Length 2.00" Width 1.00" Thickness 0.625" Carbon
ABS-BR03
A.B.SEE Brush
OEM: Length 2.00" Width 1.00" Thickness .75 Graphite
ABS-BR04
A.B.SEE Brush
OEM: Length 2.00" Width 1.00" Thickness .75 Carbon

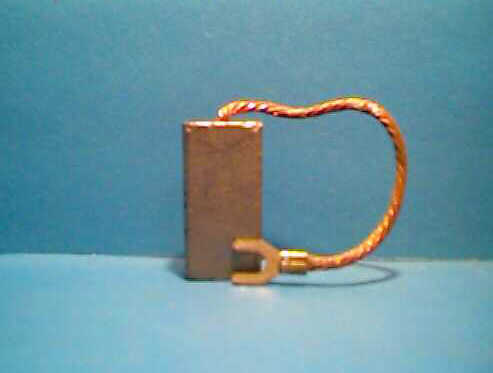

ABS-BR05
A.B.SEE Brush
OEM: Length 2.00" Width 1.00" Thickness 0.5 Graphite
ABS-BR05C
A.B.SEE Brush
OEM: Length 2.00" Width 1.00" Thickness 0.5 Carbon
ABS-BR06
A.B.SEE Brush
OEM: Length 2.00" Width 1.00" Thickness 0.625 Carbon
ABS-BR07
A.B.SEE Brush
OEM: Length-2.000 Width- 1.000 Thickness-.625 Graphite
ABS-BR08
A.B.SEE Brush
OEM: Length 2.00" Width 1.00" Thickness 0.75 Carbon
ABS-BR09
A.B.SEE Brush
OEM: Length 2.00" Width 1.00" Thickness 0.75 Graphite
ABS-BR10
A.B.SEE Brush
OEM: Length 2.25" Width 1.0" Thickness .5 Carbon
ABS-BR11
A.B.SEE Brush
OEM: Length 2.5" Width 1.0" Thickness .750 Graphite
ABS-BR12
A.B.SEE Brush
OEM: Length- 2.5" Width 1.0" Thickness .750 Graphite

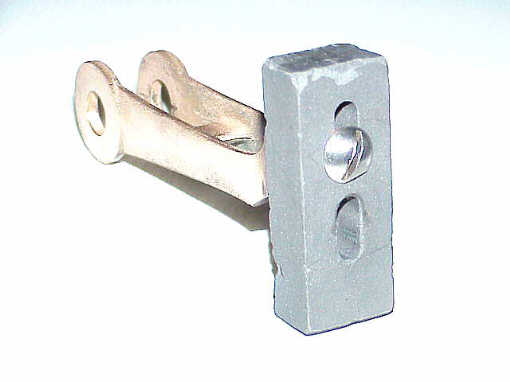

ABS-BH01
A.B. SEE
HOLDER, BRONZE, 4 1/2" LONG, 1" WIDE, 1/2" MOUNTING HOLE. USED WITH BRUSH TYPE AS SHOWN.…

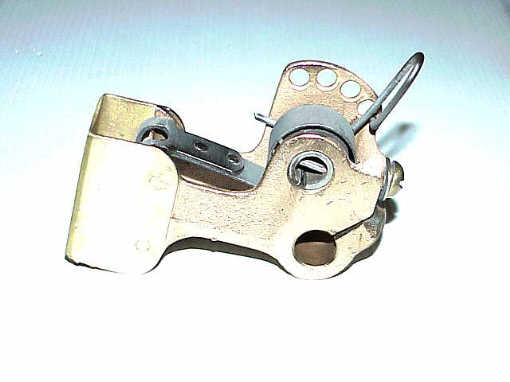

ABS-BH02
A.B. SEE
HOLDER, BRONZE WITH BRASS BRUSH BOX. 3 1/2" LONG OVERALL BRUSH SIZE 5/8" X 1" STEM BORE:…

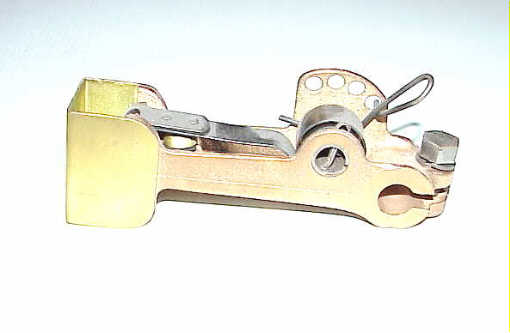

ABS-BH03
A.B. SEE
HOLDER, BRONZE WITH BRASS BRUSH BOX, 5 3/8" LONG OVERALL. BRUSH SIZE: 3/4" X 1" STEM BORE…

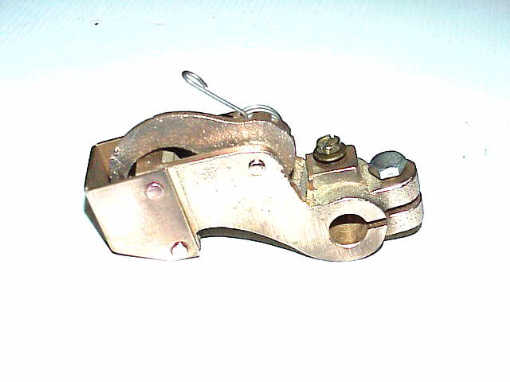

ABS-BH04
A.B. SEE
HOLDER, BRONZE. 4 1/2" OVERALL BRUSH SIZE: 5/8" X 1" STEM BORE: 1/2" ADAMS # NONE

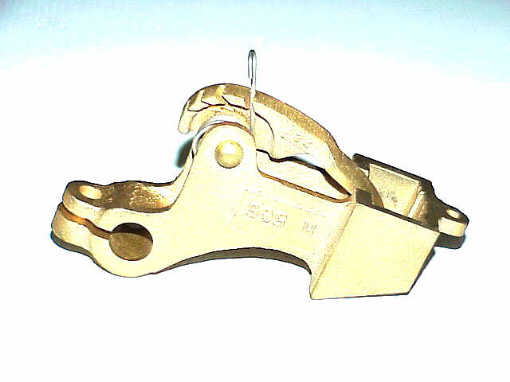

ABS-BH05
A.B. SEE
HOLDER, BRONZE. 4 1/2" OVERALL. BRUSH SIZE: 5/8" X 1" STEM BORE: 1/2" ADAMS # NONE O.E.M.…
ABS-H01
A.B. SEE
CONTACT, 2 7/8" OVERALL, 1 1/4" X 1/2" FINGER, 1/2" DIAMETER X 3/16" TIP, 3/8" MOUNTING H…
ABS-C01
A.B.SEE
CONTACT, CARBON, SPUN IN CUP. CARBON: 1/2" X 3/16" STEM: 5/8" X 3/16" O.E.M: 14309
ABS-C01A
A.B.SEE
CONTACT, CARBON, SPUN IN CUP. CARBON: 3/4" X 3 1/16" STEM: 15/16" X 5/16" O.E.M:

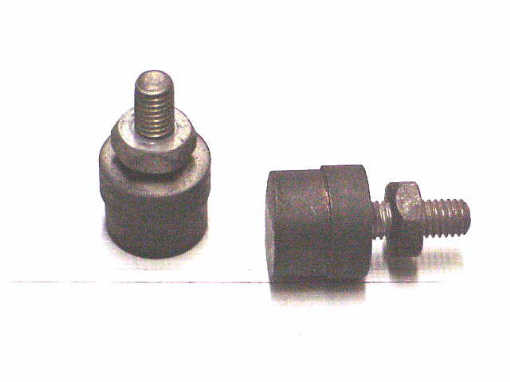

ABS-C01B
A.B.SEE
CONTACT, CARBON, SPUN IN CUP. CARBON: 3/4" X 1/2" STEM: 1 3/16" X 1/4" O.E.M:
ABS-C01C
A.B.SEE
CONTACT, CARBON, SPUN IN CUP. CARBON: 1" X 1/2" STEM: 1" X 3/8" O.E.M:

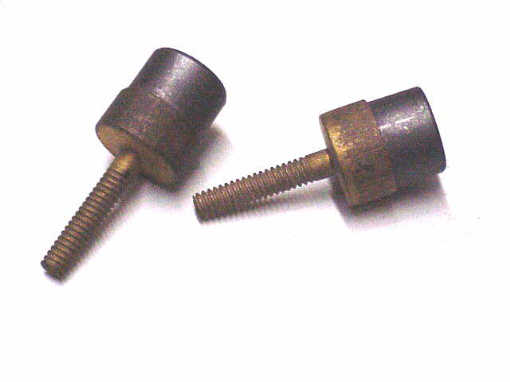

ABS-C02
A.B.SEE
CONTACT, CARBON, SPUN IN CUP. CARBON: 1 1/4" X 1/2" STEM: 1 3/8" X 5/16" O.E.M: 20386
ABS-C03
A.B.SEE
CONTACT, CARBON 1/2" DIAMETER X 3/4" O.E.M. # D-4687
ABS-C03
A.B.SEE
CONTACT, CARBON 1/2" DIAMETER X 3/4" O.E.M. # D-4687
ABS-C04
A.B.SEE
CONTACT, CARBON CARBON: 2" X 3/4" O.E.M: D-682
ABS-C05
A.B.SEE
CONTACT, CARBON 1" X 2" O.E.M. # D-1571
ABS-C06
A.B.SEE
CONTACT, CARBON 1 1/4" X 2" O.E.M. # D-580
ABS-C07
A.B.SEE
CONTACT, CARBON 1 1/2" X 2" O.E.M. # D-873
ABS-C08
A.B.SEE
CONTACT, CARBON 1 3/4" DIAMETER X 2" O.E.M. # D-1134

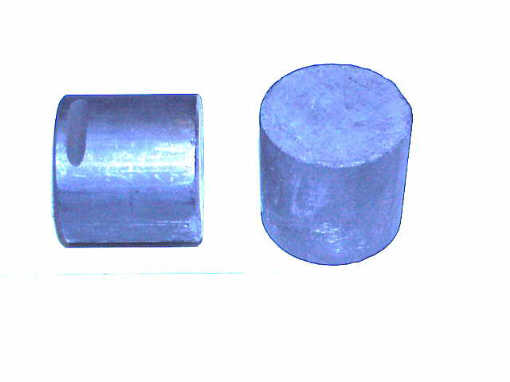

ABS-C09
A.B.SEE
CONTACT, CARBON 2" X 2" O.E.M. # D-1813
ABS-C10
A.B.SEE
CONTACT, CARBON 1 3/4" LONG X 1 1/2" WIDE, 1/2" HIGH AT FRONT, 3/4" HIGH AT REAR. O.E.M. #
ABS-C11
A.B.SEE
CONTACT, CARBON TOP: 2 1/4" SQUARE BOTTOM: 2 1/2" X 2 1/4" X 3/4" HIGH. O.E.M. # D-680

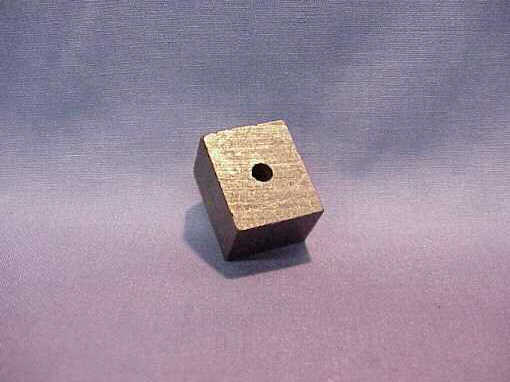

ABS-C12
A.B.SEE
CONTACT, CARBON TOP: 2 1/4" X 1 1/8" BOTTOM: 2 1/2" X 1 1/8" X 3/4" HIGH. O.E.M. # D-753
ABS-C13
A.B.SEE

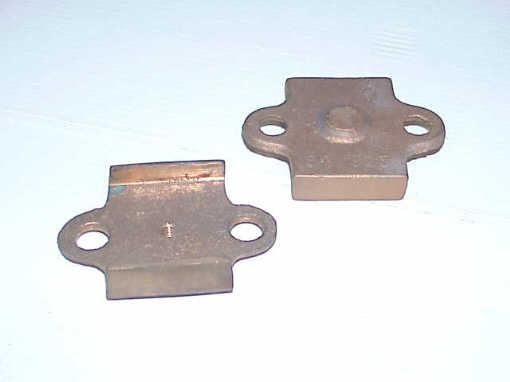

ABS-CH01
A.B.SEE
HOLDER, BRONZE. CARBON : 1 1/2" X 1 3/4" X 3/4" (ABS-C15) OEM: 3A-305
ABS-CH02
A.B.SEE
HOLDER, BRONZE CARBON : 2" X 2" X 3/4" (ABS-C14) OEM: 6-1385D
ABS-CH03
A.B.SEE
HOLDER, BRONZE CARBON : 2 1/4" X 2" X 3/4" (ABS-C13) OEM: 4A-834

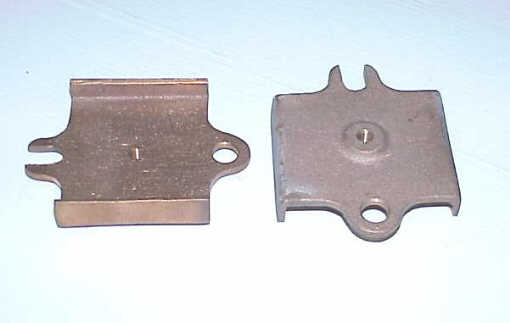

ABS-CH04
A.B.SEE
HOLDER, BRONZE CARBON : 2 1/2" X 2 1/4" X 3/4" (ABS-C11) OEM: 6-1385
ABS-CH05
A.B.SEE
HOLDER, CARBON, BRONZE. 7" OVERALL, (2) 3/8" STEMS FULLY THREADED, FOR 1 1/2" (ABS-C07) O…
ABS-CH06
A.B.SEE
HOLDER, CARBON, BRONZE. 3" OVERALL, (2) 3/8" THREADED HOLES FOR ALL THREAD, FOR 1 1/4" CA…
ABS-CH08
A.B.SEE
HOLDER, BRONZE. CARBON : 1 3/4" (ABS-C08) OVERALL : 6 3/4", (2) 3/8" STUDS O.E.M. # 3-1800
ABS-CH09
A.B.SEE
HOLDER, BRONZE. CARBON : 7/8", OVERALL: 3" X 1" 2 1/4" X 1 1/8" BASE, (2) 1/4" HOLES. CAS…

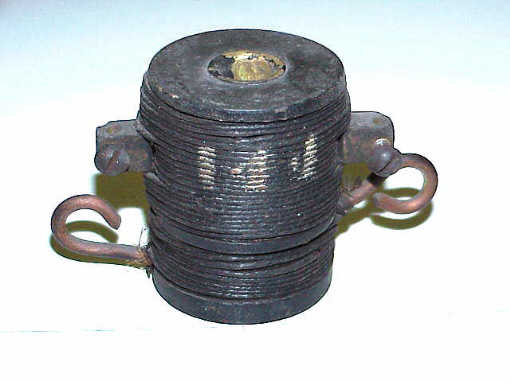

ABS-M144
A.B.SEE
COIL, RELAY. O.E.M. # 144 ADAMS # NONE

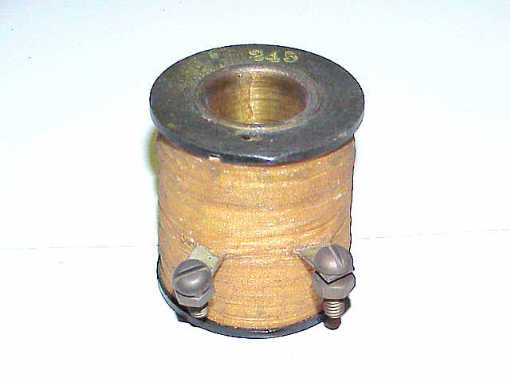

ABS-M245
A.B.SEE
COIL, RELAY. O.E.M. # 245 ADAMS # NONE

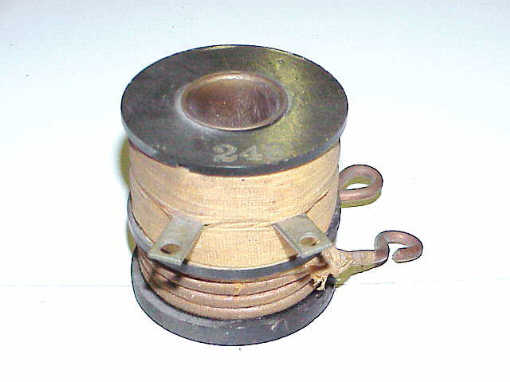

ABS-M248
A.B.SEE
COIL, RELAY. O.E.M. # 248 ADAMS # NONE

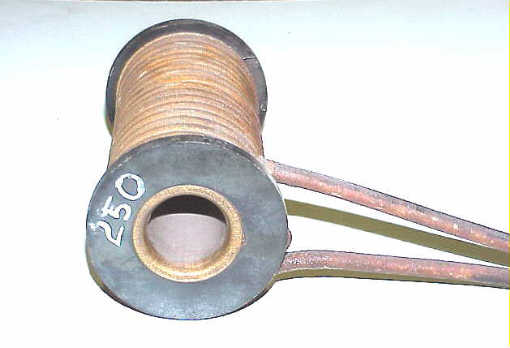

ABS-M250
A.B.SEE
COIL, RELAY. O.E.M. # 250 ADAMS # NONE

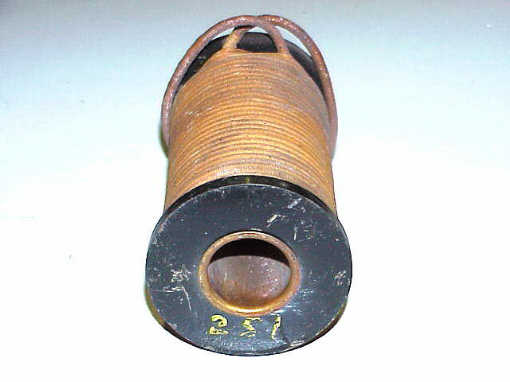

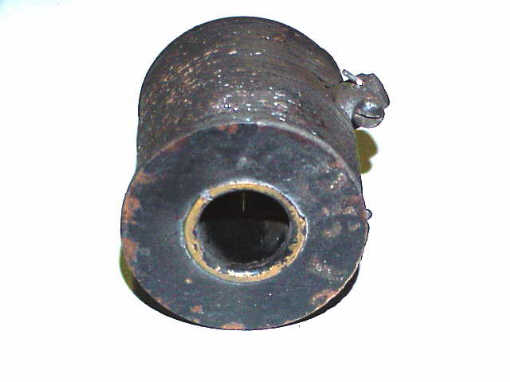

ABS-M251
A.B.SEE
COIL, RELAY. O.E.M. # 251 ADAMS # NONE

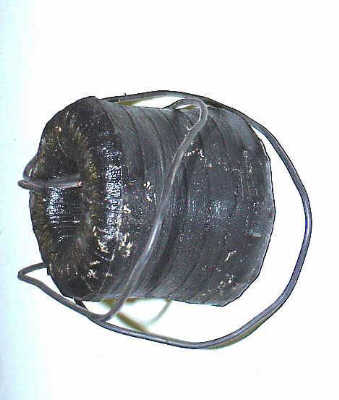

ABS-M256
A.B.SEE
COIL, RELAY. O.E.M. # 256 ADAMS # NONE

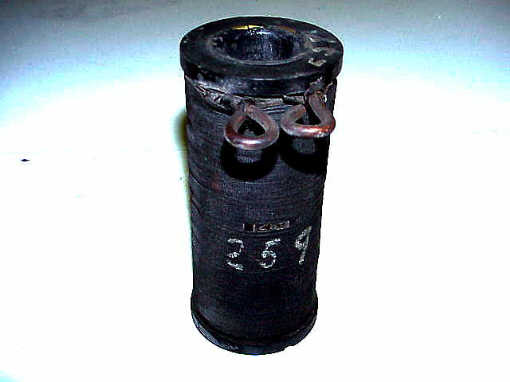

ABS-M259
A.B.SEE
COIL, RELAY. O.E.M. # 259 ADAMS # NONE
ABS-M260
A.B.SEE
COIL, RELAY. O.E.M. # 260 ADAMS # NONE
ABS-M261
A.B.SEE
COIL, RELAY. O.E.M. # 261 ADAMS # NONE

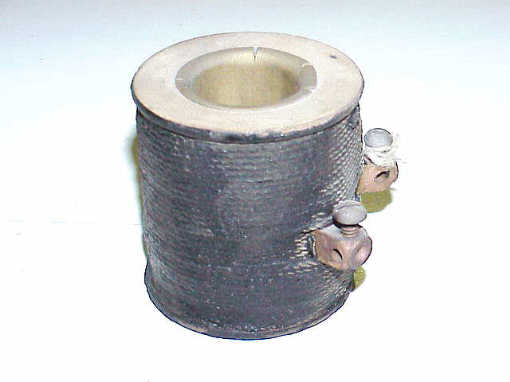

ABS-M262
A.B.SEE
COIL, RELAY. O.E.M. # 262 ADAMS # NONE

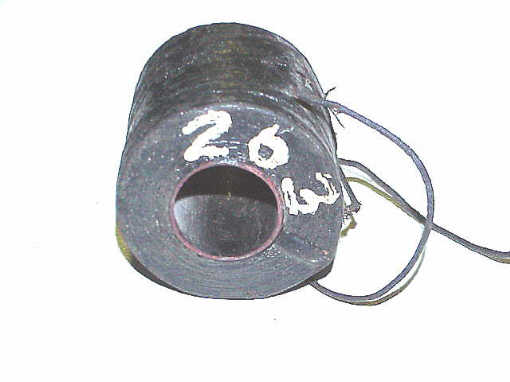

ABS-M263
A.B.SEE
COIL, RELAY. O.E.M. # 263 ADAMS # NONE

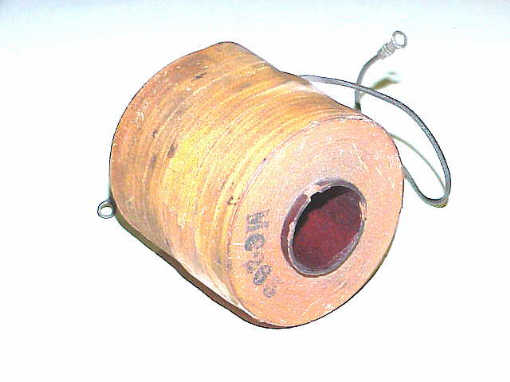

ABS-M265
A.B.SEE
COIL, RELAY. O.E.M. # MC265 265 ADAMS # NONE

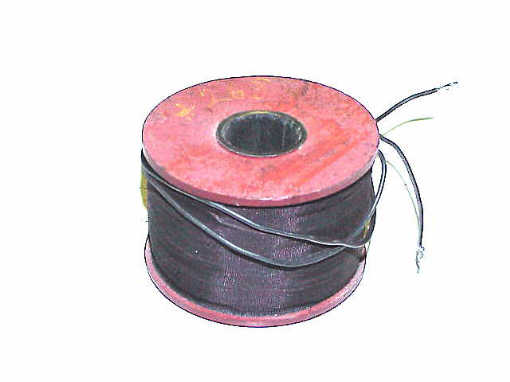

ABS-M268
A.B.SEE
COIL, RELAY. O.E.M. # 268 ADAMS # NONE

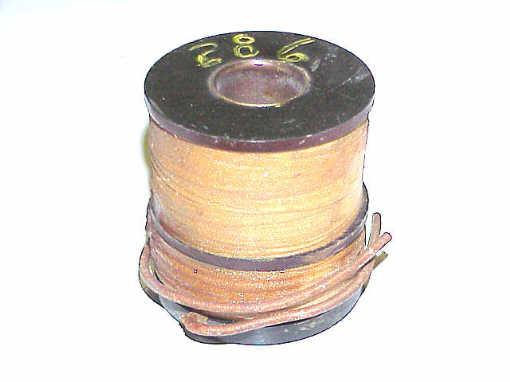

ABS-M286
A.B.SEE
COIL, RELAY. O.E.M. # 286 ADAMS # NONE

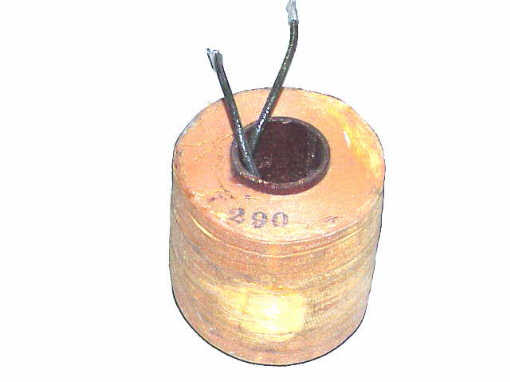

ABS-M290
A.B.SEE
COIL, RELAY. O.E.M. # 290 ADAMS # NONE

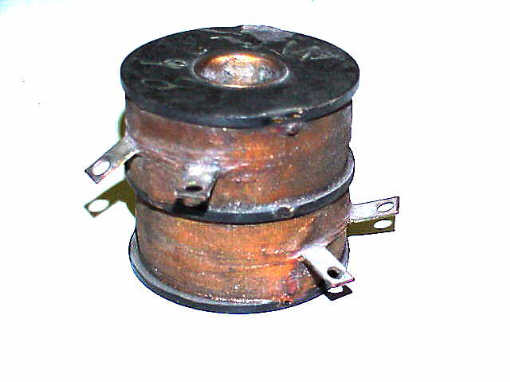

ABS-M298
A.B.SEE
COIL, RELAY. O.E.M. # 298 ADAMS # NONE

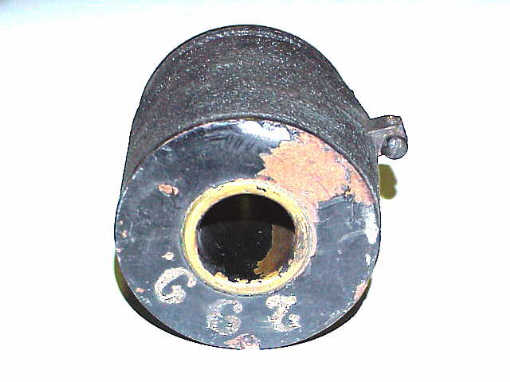

ABS-M299
A.B.SEE
COIL, RELAY. O.E.M. # 299 ADAMS # NONE

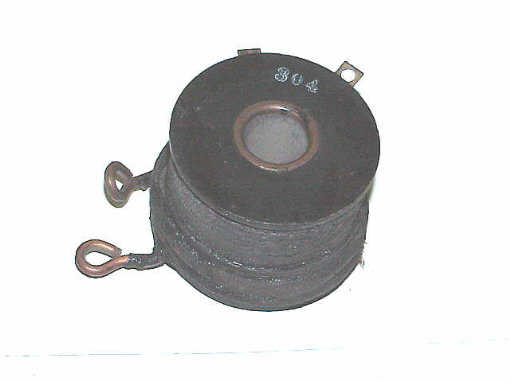

ABS-M304
A.B.SEE
COIL, RELAY. O.E.M. # 304 ADAMS # NONE
ABS-M307
A.B.SEE
COIL, RELAY. O.E.M. # 307 ADAMS # NONE

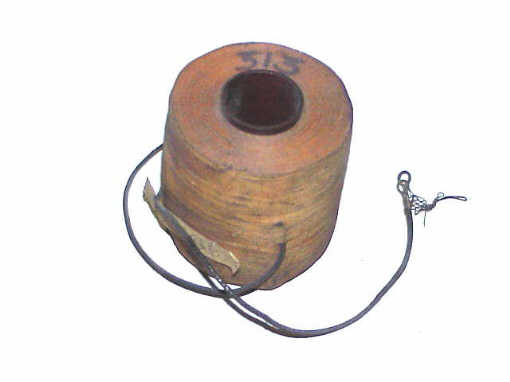

ABS-M313
A.B.SEE
COIL, RELAY. O.E.M. # 313 ADAMS # NONE

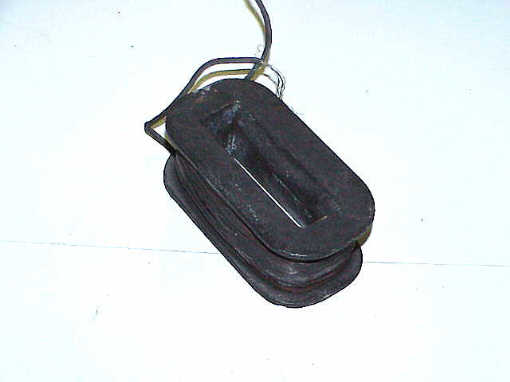

ABS-M314
A.B.SEE
COIL, RELAY. O.E.M. # 314 ADAMS # NONE

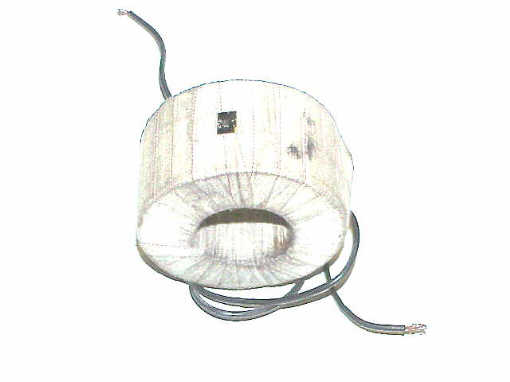

ABS-M521
A.B.SEE
COIL, RELAY. O.E.M. # 521 ADAMS # NONE
ABS-CU01
A.B. SEE
CONTACT, COPPER. HEAD : 3/4" X 5/16" STEM : 1/4" X 1 5/16" , LAST 5/8" THREADED O.E.M. #…

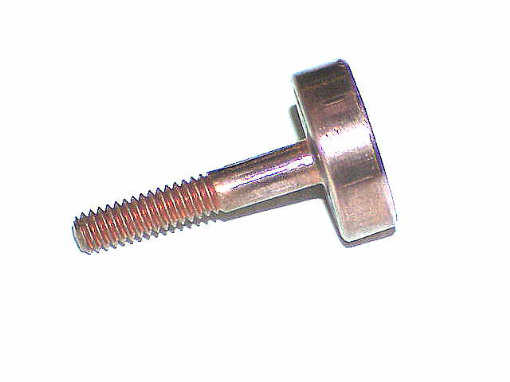

ABS-CU02
A.B. SEE
CONTACT, COPPER. HEAD :3/4" X 5/16" STEM : 1 9/32" X 1/4", THREADED 3/4" O.E.M. #6-1518
ABS-CU03
A.B. SEE
CONTACT, COPPER. HEAD : 1" X 5/16" STEM : 1 7/16" X 1/4" THREADED 3/4" O.E.M. #D-6413
ABS-CU04
A.B. SEE
OEM: 2-1141 Copper contact, head 1" x 5/16", stem 2" x 13/32" thread 15/16" x 3/4" long.
ABS-CU05
A.B. SEE
OEM: 2-1142 Copper contact, head 1 1/4" x 5/16". stem 2" x 3/8", thread 15/16" x 1/4".
ABS-CU06
A.B. SEE
OEM: 2-1143 Copper contact, head 1 1/2" x 5/16", stem 2" x 3/8", thread 1" x 1/4" long.
ABS-CU07
A.B. SEE
CONTACT, COPPER. HEAD : 1 1/2" X 5/16" STEM :2 5/16" X 7/16", THREADED 1 1/4" X 5/16" O.E…
ABS-CU08
A.B. SEE
CONTACT, COPPER. HEAD :1 3/4" X 5/16" STEM : 2 1/4" X 3/8", THREAD: 1 3/16" X 5/16" O.E.M…
ABS-CU09
A.B. SEE
CONTACT, COPPER. HEAD : 2" X 5/16" STEM :2" X 3/8" THREAD: 15/16" X 5/16" O.E.M. #3-1330

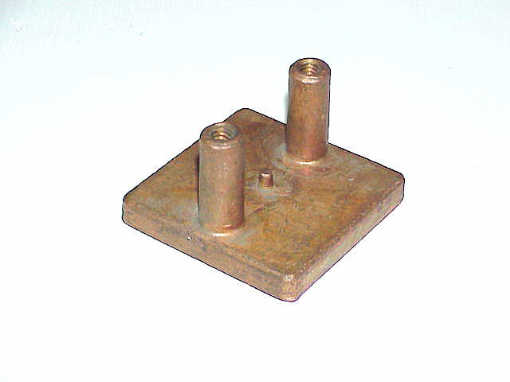

ABS-CU10
A.B. SEE
OEM: 5-1359 Brass contact. Face 2 1/16" x 2". To stems 7/16" dia. x 1 1/8" long drilled a…
ABS-CU11
A.B. SEE
CONTACT, BRASS, 2 5/16" SQ. FACE, (2) STEMS 7/16" X 1 1/8" COUNTERBORED & TAPPED 1 1/8" L…
ABS-CU12
A.B. SEE
CONTACT, BRASS, 1 1/2" SQ., STEM 1" WIDE, 1 5/8" HIGH, 1/4" THICK WITH 1" X 7/16" OVAL HO…

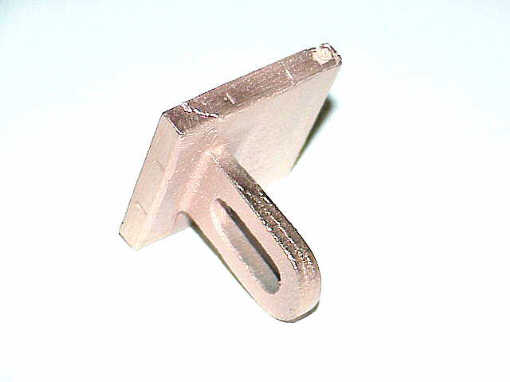

ABS-CU13
A.B. SEE
CONTACT, BRASS, 2" SQUARE FACE, STEM: 1" WIDE X 1 5/8" HIGH, 1/4" THICK WITH 1`" X 7/16 O…

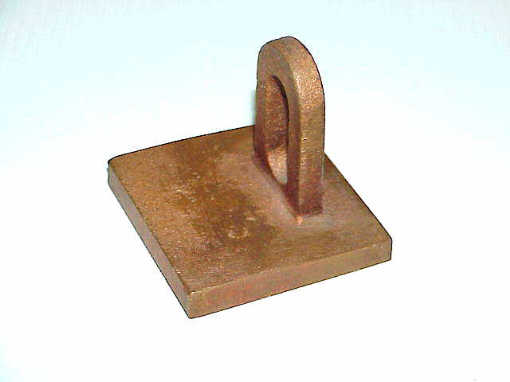

ABS-CU14
A.B. SEE
OEM: 6-1449 Brass contact. Face 2 1/8" square. Stem 1" wide, 1 5/8" high, 1 /4" thick wit…
ABS-CU15
A.B. SEE
OEM: 3A-304 Brass contact. Face 1 1/2" square, boss 5/8" x 1 1/2", two 7/32" holes.

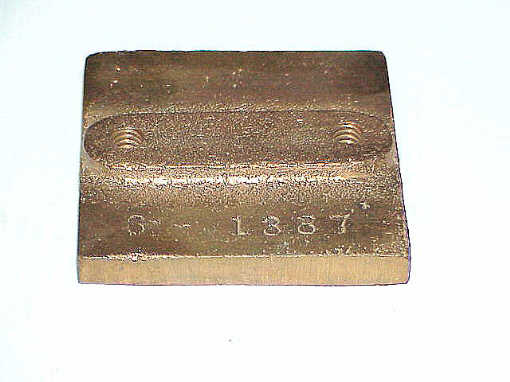

ABS-CU16
A.B. SEE
CONTACT, BRASS, 2 1/4" SQ. FACE, 1/2" X 2 1/4 BOSS, TWO HOLES TAPPED 1/4-20. O.E.M. # 6-1…
ABS-CU17
A.B. SEE
OEM: 3-4-525 Bronze block 1 3/8" x 7/8" x 1" with insulator with 3/8" hole.
ABS-CU17A
A.B. SEE
BLOCK, BRONZE, 1 1/2" X 1" X 1", 3/8" HOLE, INSULATED. O.E.M. # 4-5-525

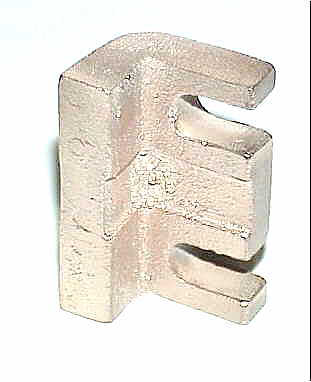

ABS-CU19
A.B. SEE
OEM: 5-6-1004 Bronze contact, 1 15/16" long x 1 3/16" high x 13/16" thick. Two mounting s…

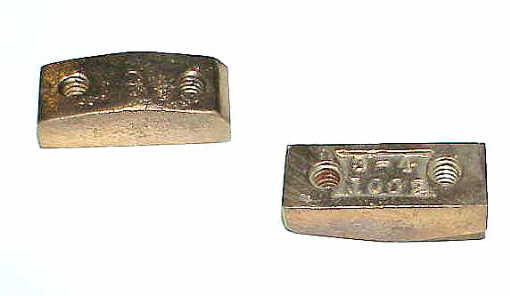

ABS-CU20
A.B. SEE
OEM: 3-4-1002 Bronze contact, 1 7/16" long x 5/8" wide x 1/2" high. Two holes drilled and…

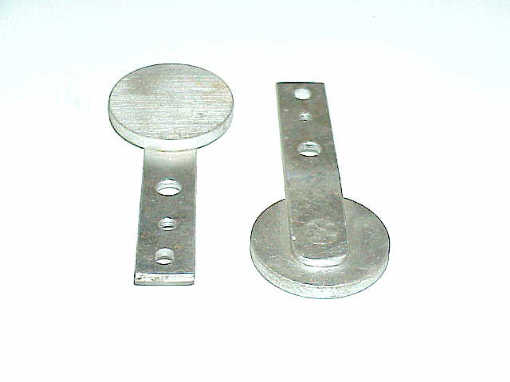

ABS-CU21
A.B. SEE
OEM: 20668 Lollipop contact, head 1 1/4" x 5/16" stem 3 1/16" x 5/8".

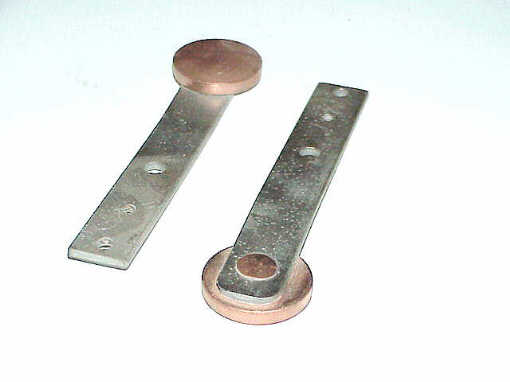

ABS-CU22
A.B. SEE
OEM: 27573 Lollipop contact, head 1 7/16" x 3/16" stem 41/2" x 3/4".

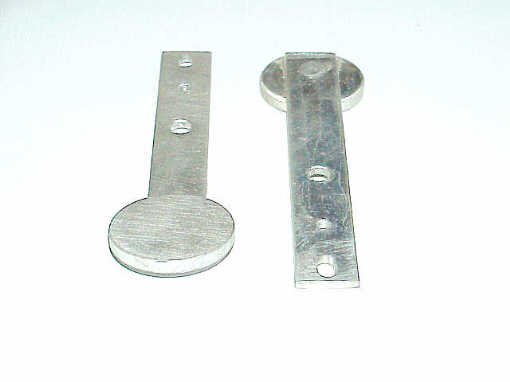

ABS-CU23
A.B. SEE
CONTACT, COPPER, LOLLIPOP. HEAD: 1 1/2" X 3/16", STEM: 3 1/16" X 5/8". O.E.M. # 27973

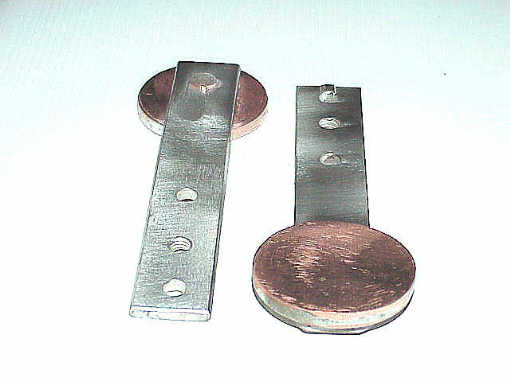

ABS-CU23A
A.B. SEE
CONTACT, COPPER, LOLLIPOP. HEAD: 2" X 1/4", STEM: 5" X 1"

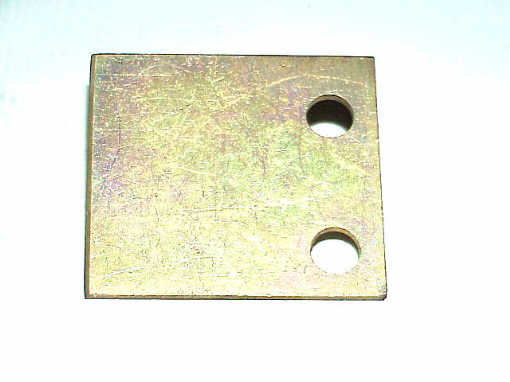

ABS-CU28
A.B. SEE
OEM: 4-4 Brass contact 3" x 2 3/4" x 1/8".

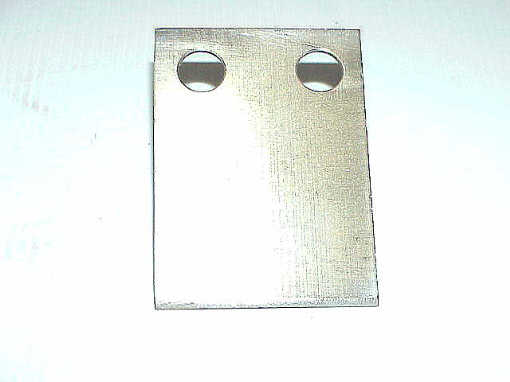

ABS-CU29
A.B. SEE
CONTACT, BRASS,. 3 1/4" X 2 1/4" X 1/8" (2) MOUNTING HOLES. O.E.M. # 3-4

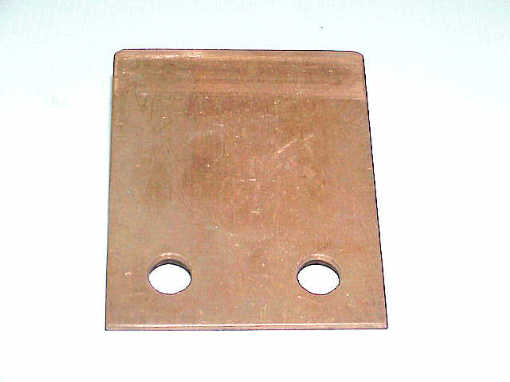

ABS-CU30
A.B. SEE
CONTACT, BRASS. 3 5/8" X 3" X 3/16" (2) MOUNTING HOLES. O.E.M. # 5-4
ABS-CU31
A.B. SEE
CONTACT, COPPER, FINGER. O.E.M. # D-141176
ABS-CU32
A.B. SEE
CONTACT, COPPER, FINGER. O.E.M. # D-14177
ABS-CU33
A.B. SEE
CONTACT, COPPER. 2 1/16" X 1/2' X 1/16", ONE HOLE O.E.M.# 1410
ABS-CU34
A.B. SEE
CONTACT. COPPER. 1 3/4" X 1/2" X 1/8". ONE HOLE O.E.M.# 10120
ABS-CU35
A.B. SEE
CONTACT, COPPER. 2 3/16" X 3/8" X 1/32", ONE HOLE, HEAD 5/16" DIAMETER. O.E.M. # 1216

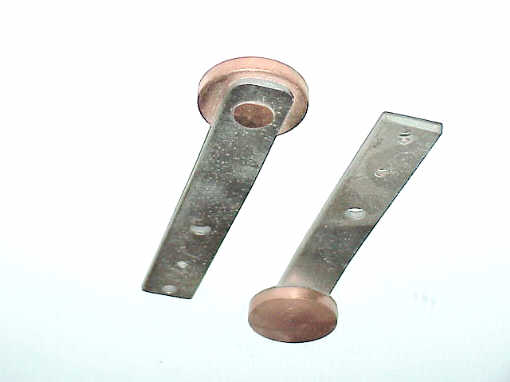

ABS-CU37
A.B. SEE
CONTACT, COPPER, PADDLE OEM: 10909

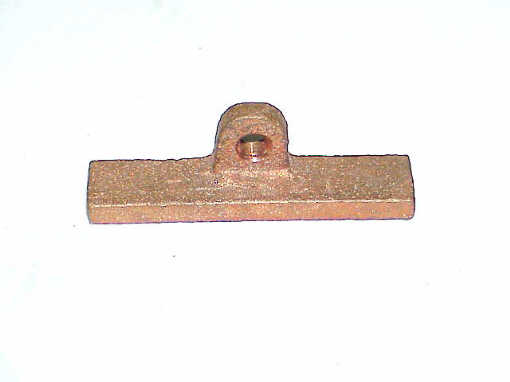

ABS-CU39
A.B. SEE
CONTACT, BRASS. 1 7/8" X 3/8" X 13/32" O.E.M. # Z-1321
ABS-CU40
A.B. SEE
CONTACT, BRASS. 2" LONG X 1 1/2" X 1/8" , (2) HOLES. O.E.M. # 3-1280

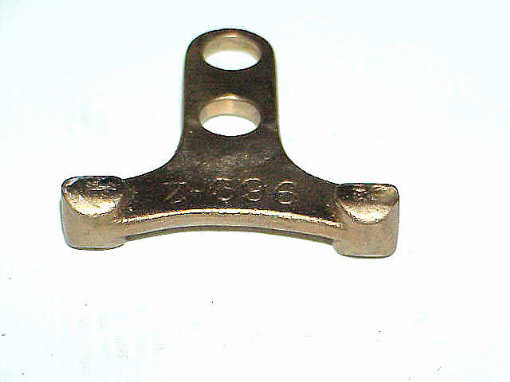

ABS-CU40A
A.B. SEE
CONTACT, BRASS. 2 1/2" LONG X 2 1/2" WIDE X 1/2", (2) HOLES. O.E.M. # Z-696
ABS-CU41
A.B. SEE
CONTACT, BRASS, 2 1/8" X 3/4" X 3/8" (1) SLOTTED HOLE O.E.M.# 10967
ABS-CU47
A.B. SEE
CONTACT, BRASS. 3 7/16" X 23/32" WITH (4) 9/16" DIAMETER RAISED CONTACTS. O.E.M. # 6-1475

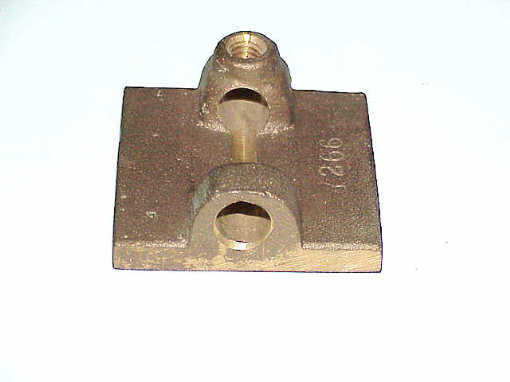

ABS-CU49
A.B. SEE
CONTACT, BRASS. 2 1/4" SQUARE X 1/4", (2) 3/8" HOLES TO MOUNT THRU. O.E.M. # Y-266

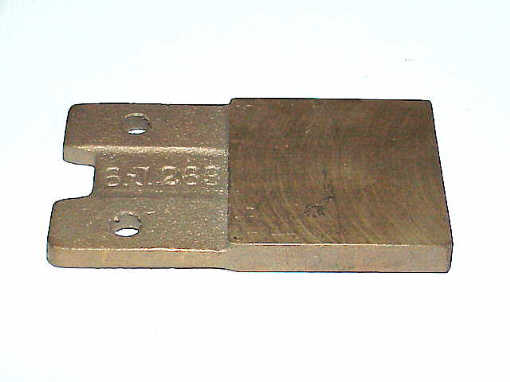

ABS-CU50
A.B. SEE
CONTACT, BRASS. 2 1/4" SQ. X 1/4" CONTACT SURFACE.4" X 2 1/4" O/A, (2) 1/4" HOLES ON 1 1/…

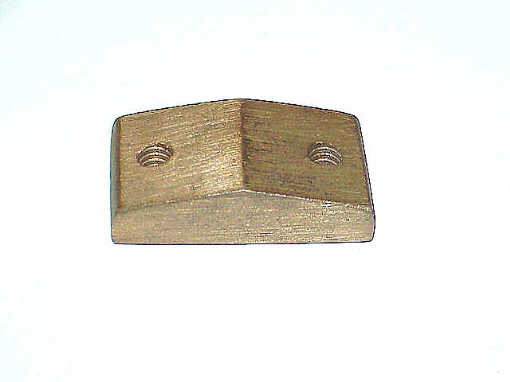

ABS-CU51
A.B. SEE
CONTACT, BRASS. 1 5/8" X 7/8" X 1/2", (2) 3/16" HOLES ON 1 1/8" CENTER. O.E.M. # 58-1002

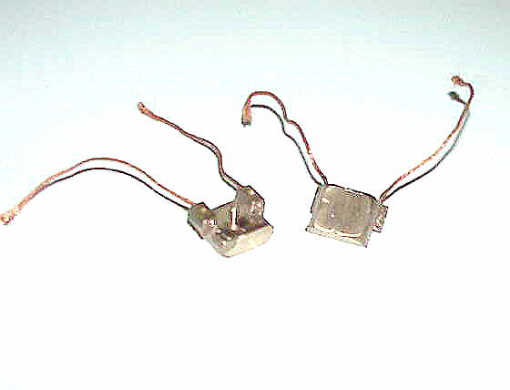

ABS-CU52
A.B. SEE
CONTACT, BRASS. 7/8" SQUARE FACE. (2) BARE WIRE 4" SHUNTS
ABS-CU53
A.B. SEE
CONTACT, BRASS, SEGMENT. 2 3/4" X 1 7/8" X 1 1/2" X 1/4" (4) 1/4" HOLES, 2 1/8" & 3/4" CE…
ABS-CU54
A.B. SEE
CONTACT, BRASS. 1 1/8" X 3/4" X 3/4", (2) TAPPED HOLES. TOP IS CONCAVE.

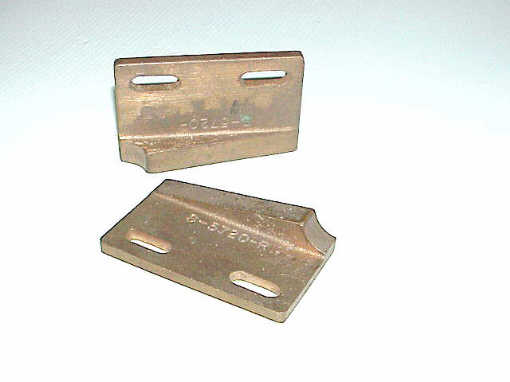

ABS-CU55
A.B. SEE
CONTACT, BRONZE. 3 1/4" X 2" X 1/4" WITH 3/4" RAISED SECTION. (2) SLOTS ON 2" CENTERS. O.…
ABS-CU56
A.B. SEE
CONTACT, COPPER. 1 3/4" X 3/4" X 1/2". (2) TAPPED HOLES ON 5/8" CENTER.
ABS-CU57
A.B. SEE
CONTACT, COPPER. 2 1/2" X 1 1/2" X 1/4". 1/4" X 1 1/2" GROOVE, 3/16" BUSHED HOLE.

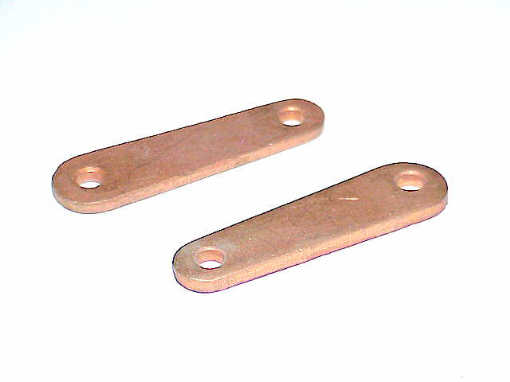

ABS-CU58
A.B. SEE
CONTACT, COPPER, SEGMENT. 2 1/8" X 1/2" X 3/8" X 1/8" (2) 3/16" HOLES ON 1 5/8" CENTER
ABS-CU59
A.B. SEE
CONTACT, COPPER, SEGMENT. 2 1/8" X 7/8" X 3/4" X 1/8". (2) 3/16" HOLES ON 1 5/8" CENTER.

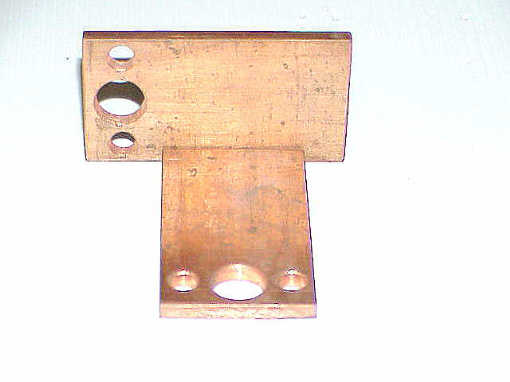

ABS-CU60
A.B. SEE
CONTACT, COPPER. 2 3/4" X 1 1/2" X 3/16" (2) 1/4" HOLES AND (1) 1/2" HOLE.

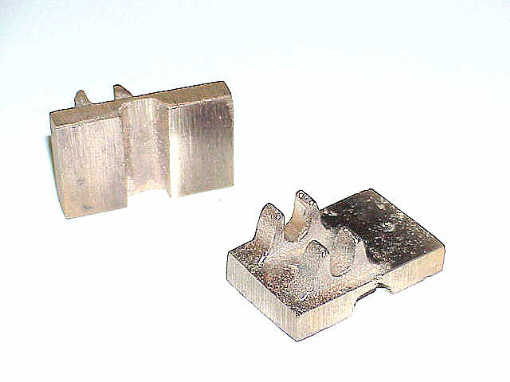

ABS-CU61
A.B. SEE
CONTACT, BRASS. 1 5/8" X 1" WITH 1/4" GROOVE SPACING.
ABS-CU62
A.B. SEE
CONTACT, BRASS, KNIFE. 4 5/8" X 1 1/4" X 1/4" (2) 7/16" MOUNTING HOLES.

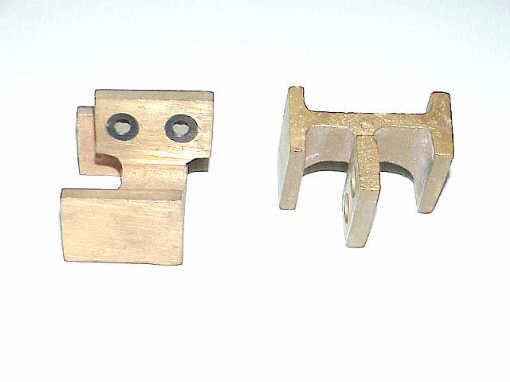

ABS-CU63
A.B. SEE
CONTACT, BRASS. 1 7/8" X 1 1/4" X 5/16" FACE. (2) 1/2" HOLES BUSHED TO 1/4"
ABS-S01
A.B. SEE
CONTACT, ASSEMBLY. 4 1/2" OVERALL, CONTACT 2" X 3/8" X 1/16" WITH 2 1/8" THREADED MOUNTIN…

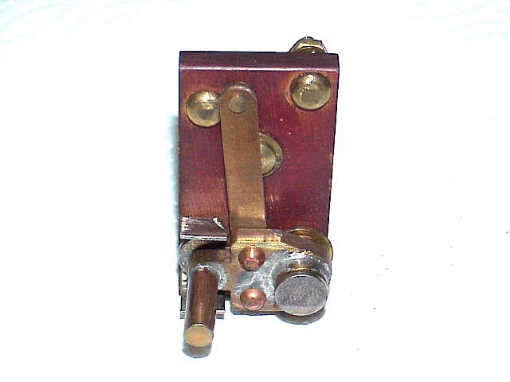

ABS-S02
A.B.SEE
SWITCH, SELECTOR, COMPLETE. 2 3/8" X 1 1/4" X 1/4" WITH (2) 5/16" DIAMETER BRASS BUTTON C…

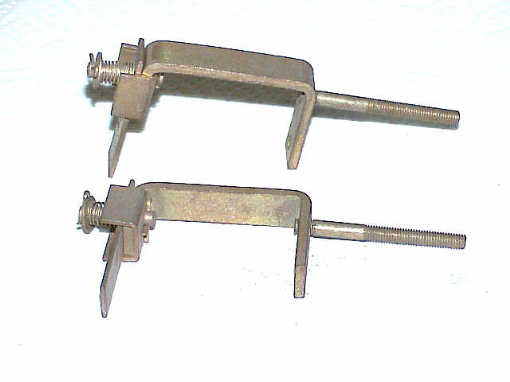

ABS-S03
A.B.SEE
CONTACT, ASSEMBLY. 4 1/2" OVERALL. CONTACT IS 1 7/8" X 1/2" X 1/8". 2" STUD THREADED AT B…
