CARBON CONTACTS
123 parts. Click any item for specifications and to request a quote.
ABS-C01
A.B.SEE
CONTACT, CARBON, SPUN IN CUP. CARBON: 1/2" X 3/16" STEM: 5/8" X 3/16" O.E.M: 14309
ABS-C01A
A.B.SEE
CONTACT, CARBON, SPUN IN CUP. CARBON: 3/4" X 3 1/16" STEM: 15/16" X 5/16" O.E.M:
ABS-C01B
A.B.SEE
CONTACT, CARBON, SPUN IN CUP. CARBON: 3/4" X 1/2" STEM: 1 3/16" X 1/4" O.E.M:
ABS-C01C
A.B.SEE
CONTACT, CARBON, SPUN IN CUP. CARBON: 1" X 1/2" STEM: 1" X 3/8" O.E.M:
ABS-C02
A.B.SEE
CONTACT, CARBON, SPUN IN CUP. CARBON: 1 1/4" X 1/2" STEM: 1 3/8" X 5/16" O.E.M: 20386
ABS-C03
A.B.SEE
CONTACT, CARBON 1/2" DIAMETER X 3/4" O.E.M. # D-4687
ABS-C03
A.B.SEE
CONTACT, CARBON 1/2" DIAMETER X 3/4" O.E.M. # D-4687
ABS-C04
A.B.SEE
CONTACT, CARBON CARBON: 2" X 3/4" O.E.M: D-682
ABS-C05
A.B.SEE
CONTACT, CARBON 1" X 2" O.E.M. # D-1571
ABS-C06
A.B.SEE
CONTACT, CARBON 1 1/4" X 2" O.E.M. # D-580
ABS-C07
A.B.SEE
CONTACT, CARBON 1 1/2" X 2" O.E.M. # D-873
ABS-C08
A.B.SEE
CONTACT, CARBON 1 3/4" DIAMETER X 2" O.E.M. # D-1134
ABS-C09
A.B.SEE
CONTACT, CARBON 2" X 2" O.E.M. # D-1813
ABS-C10
A.B.SEE
CONTACT, CARBON 1 3/4" LONG X 1 1/2" WIDE, 1/2" HIGH AT FRONT, 3/4" HIGH AT REAR. O.E.M. #
ABS-C11
A.B.SEE
CONTACT, CARBON TOP: 2 1/4" SQUARE BOTTOM: 2 1/2" X 2 1/4" X 3/4" HIGH. O.E.M. # D-680
ABS-C12
A.B.SEE
CONTACT, CARBON TOP: 2 1/4" X 1 1/8" BOTTOM: 2 1/2" X 1 1/8" X 3/4" HIGH. O.E.M. # D-753
ABS-C13
A.B.SEE
A-R1D1
ARMOR
3/8" X 3/8" X 3/4" USED ON #1 CONTACTOR. O.E.M. # 1163-01
A-R3C1
ARMOR
OEM: 11155-01 ADAMS: ARW-2503 Contact, carbon. 1 1/2" x 1 1/2" x 1 3/8" 1/4 Hole Carbon
A-R3C1M
ARMOR
CONTACT, METAL GRAPHITE 1 1/2" X 1 1/2" X 1 3/8". MOUNTING HOLE= 1/4". O.E.M. #11187-01
A-R4C1
ARMOR
OEM: 11153-01 ADAMS: ARW-2304 Carbon contact 1 1/8" square. 1/8" Hole Carbon
A-R4C1M
ARMOR
CONTACT, METAL GRAPHITE. 1 1/8' X 1 1/8" X 1 1/8" MOUNTING HOLE= 3/16" O.E.M. # 11188-01
A-R6C1
ARMOR
OEM: 11198-01 1 1/4" x 1" x 3/4" Carbon ( keystone ).
A-R6C2
ARMOR
OEM: 11186-01 1 5/8" x 1 1/2" x 1" Carbon ( keystone ).
AT-C03
ATLANTIC
OEM: Carbon cast in holder, 1 1/2" long x 1 3/16" wide x 1 1/4" high. Holder has two 1/8"…

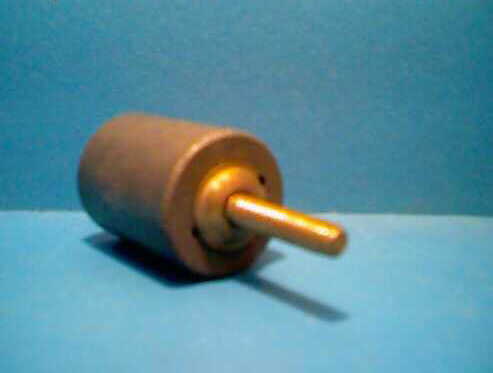

C.J-C01
C.J.ANDERSON
C.J-C04
C.J.ANDERSON
C.J-C12
C.J.ANDERSON
CU-CU1
CURTIS
OEM: Carbon, 1 1/4" dia. x 1 1/4" long.
D-C01
DOVER
CONTACT, CARBON 7/8" X 1" X 3/4" MOUNTING HOLE = 1/4" O.E.M. # DC 203
D-C02
DOVER
CONTACT, COPPER GRAPHITE. 7/8" X 1" X 3/4" MOUNTING HOLE = 1/4"
D-C03
DOVER
CONTACT, GRAPHITE. 7/8" X 1" X 3/4" MOUNTING HOLE = 1/4"
D-C04
DOVER
CONTACT, CARBON. 3/4" X 3/4" X 5/8" MOUNTING HOLE = 5/16"
D-C05
DOVER
OEM: 9770800 ADAMS: D-21D1 Size: 1" x 1" x 1 3/8" Hole: 5/16" Carbon
D-C06
DOVER
CONTACT, METAL GRAPHITE. 1 1/8" X 1 3/16" X 1" MOUNTING HOLE = 5/16" O.E.M. # 9740867
D-C07
DOVER
CONTACT, CARBON. 1 1/4" X 1" X 3/4" MOUNTING HOLE = 5/16" O.E.M. # DC 263
D-C08
DOVER
CONTACT, CARBON. 1 1/2" X 1 1/2" X 1 1/2" MOUNTING HOLE = 1/4" O.E.M. # 9771189
D-C09
DOVER
CONTACT, CARBON. 1/2" DIAMETER X 3/4" O.E.M. # 9770719
D-C10
DOVER
CONTACT, CARBON. 2" DIAMETER X 1 1/2"
D-C05
DOVER Carbon
OEM: 9770800 ADAMS: D-21D1 Size: 1" x 1" x 1 3/8" Hole: 5/16" Carbon
GU-C04
GURNEY
OEM: FB 2653 Carbon, 2 1/4" x 1 1/4".
H-C01
HAUGHTON
CONTACT, CARBON. 1 1/2" X 1 1/2" X 3/4" O.E.M. # 5737
H-C02
HAUGHTON
CONTACT, CARBON. 2" X 1 3/4" X 3/4" O.E.M. # 5575
H-C03
HAUGHTON
CONTACT, CARBON. 1" X 1" X 9/16" USED WITH "F" (H-CU03) COPPER. O.E.M. # 21003
H-C04
HAUGHTON
CONTACT, CARBON, SPUN IN HOLDER. CARBON: 5/8" X 3/16" STEM: 3/8" X 3/16" O.E.M. # 18240
KY-C02
KEYSTONE
OEM: 1" x 1" x 1 1/4" carbon with 1/4" hole in center.
KI-C02
KIESLING
OEM: 240E13 Thickness .375" Width 1.000" Length 2.75" "OE-116
M-C01
MONTGOMERY
OEM: 24940 Carbon 1 1/16" x 1" x 13/16" with mounting hole.
OT-C01
O.THOMPSON
OEM: K-35 Carbon 1 1/8" dia. x 13/16" long.
OT-C03
O.THOMPSON
OEM: EF-6 Cup carbon. Carbon is 1/2" dia., stem is 3/16" x 7/8" long.
OT-C09
O.THOMPSON
OEM: NS-31 Carbon, high hat. Face 2" dia. x 3/8" long stem 1 3/4" dia. x 3/8" long.
O-C35
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 1/2" LENGTH: 1/2" O.E.M. # 1197
O-C36
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 1/2" LENGTH: 5/8" O.E.M. #
O-C37
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 1/2" LENGTH: 1" O.E.M. #
O-C38
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 5/8" LENGTH: 1/2" O.E.M. # 182012
O-C39
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 5/8" LENGTH: 5/8" O.E.M. #
O-C40
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 5/8" LENGTH: 3/4" O.E.M. # 1128
O-C41
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 5/8" LENGTH: 1" O.E.M. #
O-C42
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 3/4" LENGTH: 3/4" O.E.M. #
O-C43
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 3/4" LENGTH: 7/8" O.E.M. # GS1144
O-C44
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 3/4" LENGTH: 1" O.E.M. # 1149
O-C45
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 3/4" LENGTH: 1 1/2" O.E.M. # 1158
O-C46
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 7/8" LENGTH: 3/4" O.E.M. #
O-C47
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 7/8" LENGTH: 7/8" O.E.M. #
O-C48
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 7/8" LENGTH: 1" O.E.M. #
O-C49
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 1" LENGTH: 3/4" O.E.M. # 114255
O-C50
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 1" LENGTH: 7/8" O.E.M. #
O-C51
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 1" LENGTH: 1" O.E.M. # 1168
O-C52
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 1" LENGTH: 1 3/16" O.E.M. # GS1173
O-C53
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 1 1/2" LENGTH: 3/4" O.E.M. # GS1207
O-C54
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 1 3/4" LENGTH: 1 3/8" O.E.M. # 1194
O-C55
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 2" LENGTH: 1 1/16" O.E.M. # 1203
O-C56
OTIS
OEM: 1195 ADAMS: CX-31C22 2 1/4 x 1 3/8".
O-C57
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 1 3/8" X 1/4" FACE STEM: 1" X 1/2" O.E.M. #
O-C58
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 1 12" X 1/4" FACE STEM: 1 5/16" X 1/2" O.E.M. # 166083
O-C59
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 1 3/4" X 3/4" FACE STEM: 1 1/2" X 1/2" O.E.M. #
O-C60
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 2 1/4" X 3/8" FACE STEM: 2" X 5/8" O.E.M. #
O-C61
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 5/8" LENGTH: 1 1/2" THREADED O.E.M. #
O-C61A
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 1/2" LENGTH: 1" O.E.M. # 1121
O-C62
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 3/4" LENGTH: 1 1/2" THREADED O.E.M. #
O-C63
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 31/32" LENGTH: 1 1/2" THREADED O.E.M. # 1176
O-C71
OTIS
CONTACT, CARBON TOP: 1 11/2" X 2" BOTTOM: 2" X 2" HEIGHT: 3/4" O.E.M. # 1077 ADAMS CX-29C4
O-C81
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 1/2" LENGTH: 5/8" HOLE: 0.17" X 0.25" O.E.M. # 112001
O-C82
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 1" LENGTH: 1" , HOLE : .019" O.E.M. # GS1171
O-C83
OTIS
CONTACT, CARBON TOP: 3/4" X 1 1/4" BOTTOM: 1 1/4" X 1 3/8" X 3/4" HIGH. O.E.M # 1039
O-C84
OTIS
CONTACT, CARBON, TOP: 1" X 1" BOTTOM: 1" X 1 1/4" X 3/4" HIGH. O.E.M. # 1046
O-C85
OTIS
CONTACT, CARBON TOP: 1 1/2" X 1 1/2" BOTTOM: 1 1/2" X 2" X 1" HIGH O.E.M. # 1072
O-C86
OTIS
CONTACT, CARBON TOP: 1" X 1 1/4" BOTTOM: 1 1/4" X 1 3/16" X 3/4" HIGH. O.E.M. # 1042
O-C87
OTIS
CONTACT, CARBON TOP: 1 1/2" X 1 1/2" BOTTOM: 1 1/2" 1 7/8" X 1" HIGH O.E.M. # 1073
O-C88
OTIS
CONTACT, CARBON TOP: 2" X 2" BOTTOM: 2" X 2 1/4" X 1" HIGH O.E.M. # 1088 ADAMS: CX-29C5
O-C89
OTIS
CONTACT, CARBON TOP: 1 1/2" X 1 1 8" BOTTOM: 1 1/8" X 1 7/8" X 1" HIGH O.E.M. # 137726
O-C90
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 3/8" LENGTH: 5/16" O.E.M. #
O-C91
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 3/8" LENGTH: 3/8" O.E.M. # 1205
O-C92
OTIS
CONTACT, CARBON, NOTCHED. DIAMETER: 3/8" LENGTH: 9/16" O.E.M. # 1198
O-C93
OTIS
CONTACT, CARBON 1 1/4" X 3/4" O.E.M. # 1196
O-C94
OTIS
CONTACT, CARBON 2" X 1 3/16" O.E.M. # GS168790
O-C95
OTIS
CONTACT, CARBON 2 1/2" X 1 1/4" O.E.M. #
O-R2D1
OTIS
O-R2D2
OTIS
O-R3D1
OTIS
O-R3D2
OTIS
O-R5D1
OTIS
OEM: 154G1 ADAMS: O-25D1 Contact, carbon, 1 1/4" square, 1 1/2" long.
O-R5D2
OTIS
CONTACT, METAL GRAPHITE 1 1/4" X 1 1/4" X 1 1/2" O.E.M. # 154G2
O-R6D1
OTIS
OEM: 154AA1 ADAMS: O-26D1 Contact, carbon, 1" square, 1 1/32" long.
O-R6D2
OTIS
CONTACT, METAL GRAPHITE. 1" X 1" X 1 7/32" O.E.M. # 154AA2
PA-C02
PAYNE
OEM: K 810 ADAMS: PA-6 Keystone carbon, 2" x 2" x 1" thick.
PA-C06
PAYNE
OEM: M 394 Cup carbon, 5/8" x 1/4", stem 3/16" x 1/2".
SU-C01
SUNDH
OEM: SA 104 Carbon. 3/4" x 3/4" x 9/16".
SU-C02C
SUNDH
OEM: SA102 Carbon 3/4" x 3/4" x 7/8".
WA-C04
WATSON
OEM: EA 4142 Carbon. 1 5/8" x 1 3/8" x 1 1/8" 1/4" hole centered.
WA-C06
WATSON
OEM: 2360 2 1/2" x 1 1/4".
WA-C09
WATSON
OEM: Carbon. 1 5/8" x 1 3/8" x 1 1/8" 1 1/4" hole.
W-C01
WESTINGHOUSE
CONTACT, CARBON 1 1/2" x 1 1/4", 5/16" HOLE O.E.M. # T442-H20 ADAMS: W-55C
W-C02
WESTINGHOUSE
CONTACT, METAL GRAPHITE 1 1/2" x 1 1/4", 5/16" HOLE O.E.M. # T442-H16 ADAMS: W-55
W-C03
WESTINGHOUSE
CONTACT, CARBON 1 1/2" X 1 1/2" X 2" O.E.M. # T1139-G16
W-C04
WESTINGHOUSE
CONTACT, COPPER GRAPHITE 1 1/2" X 1 1/2" X 2"
W-C05
WESTINGHOUSE
CONTACT, METAL GRAPHITE 5/8" X 5/8" X 3/4", HOLE-6-32 O.E.M. # K4495-H02 ADAMS: W-50
W-C06
WESTINGHOUSE
CONTACT, CARBON 5/8" X 5/8" X 3/4", 6-32 HOLE. O.E.M. # K4495-H01
W-C07
WESTINGHOUSE
CONTACT, CARBON 5/8" X 5/8" X 3/4", 10-32 HOLE O.E.M. # K179-H01
W-C07X
WESTINGHOUSE
CONTACT, METAL GRAPHITE 5/8" X 5/8" X 3/4", 10-32 HOLE
W-C08
WESTINGHOUSE
CONTACT, CARBON 1" X 1" X 3/4", 1/4" HOLE O.E.M. # P1534-H10
W-C09
WESTINGHOUSE
CONTACT, METAL GRAPHITE 1" X 1" X 3/4", 3/16" HOLE O.E.M. # P1534-H02
W-C10
WESTINGHOUSE
CONTACT, CARBON, HI-HAT. FACE: 1/2" X 3/16" STEM: 5/16" X 5/16" K177-G01
