CAR SWITCH COMPONENTS

CONTACT, 2 7/8" OVERALL, 1 1/4" X 1/2" FINGER, 1/2" DIAMETER X 3/16" TIP, 3/8" MOUNTING H…

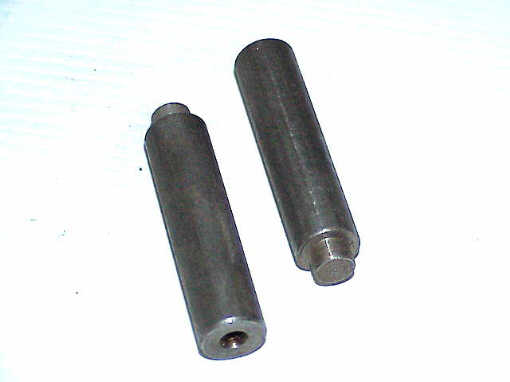

ADAPTER, PIN, STEEL, 2 1/4" X 1/2", END TURNED TO 5/16". O.E.M. # A00010027

SPRING, STEEL, PLATED. 1 1/4" X 3/4", SIX (6) ACTIVE TURNS. O.E.M. # 509-090

CONTACT, SEGMENT, BRONZE, CAST & MACHINED. 3 3/4" X 1/2", (2) 3/16" MOUNTING HOLES SET ON…

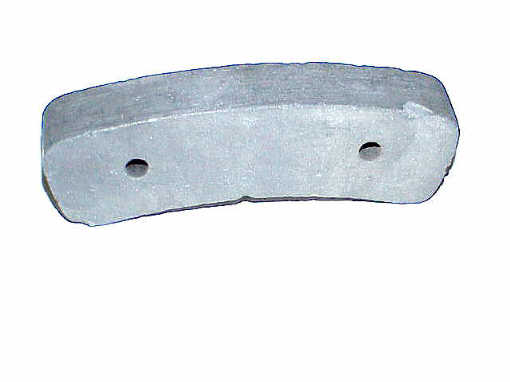

CONTACT, CARBON, 4 13/16" X 1 1/8", (3) 1/4" MOUNTING HOLES SET ON 1 1/2" CENTERS.

SPRING, STEEL, PAINTED, 1" O.D., 7/8" I.D., EACH LEG IS 1"

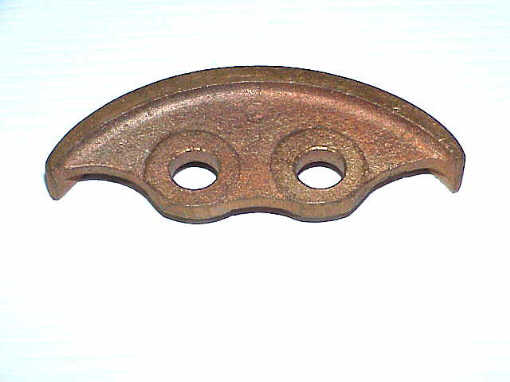

CONTACT, SEGMENT, BRONZE, CAST & MACHINED. 3 3/8" X 11/16", (2) 1/4" HOLES SET ON 2" CENT…

CONTACT, FINGER, BERYLIUM COPPER 3 1/2" X 3/8", CONTACT TIP FORGED COPPER, 3/4" X 7/16".

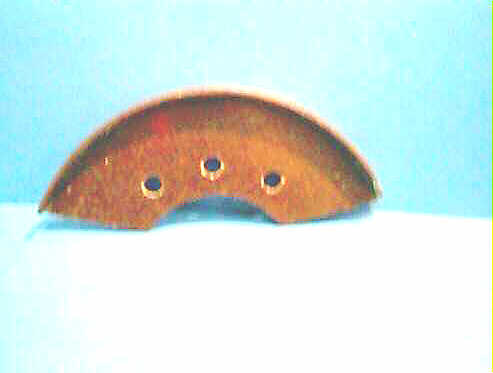

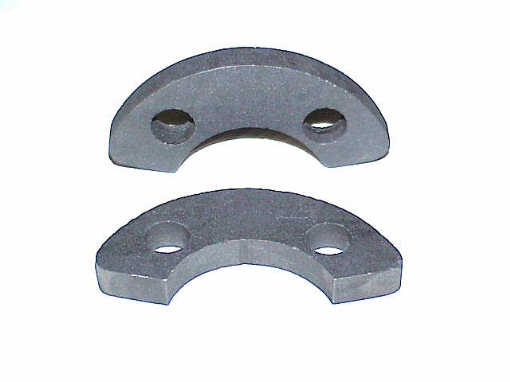

CONTACT, CARBON, HALF MOON. 3 1/4" X 3/8", (2) 1/2"HOLES SET ON 1 3/4" CENTER.

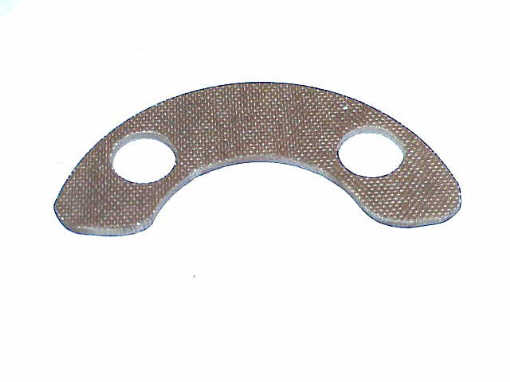

INSULATOR, 3 1/8" X 1/16". (2) 1/2" HOLES SET ON 1 3/4" CENTER. <<<<<<<<<TWO REQUIRED>>>>…

HANDLE, CAR SWITCH, OLD STYLE, MACHINED FROM PHENOLIC. 2 5/8" OVERALL, 1 1/4" DIAMETER.

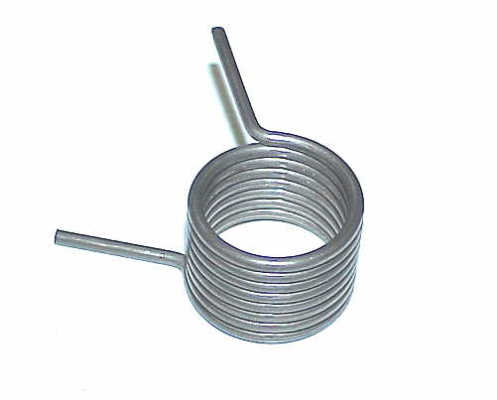

SPRING, CENTERING. 1 1/2" O.D., X 1 1/4" I.D. X 3/4" WIDE, 6 ACTIVE TURNS.

SPRING, CENTERING. 1 1/2" O.D., X 1 1/4" I.D. X 5/8" WIDE, 5 ACTIVE TURNS.

CONTACT, COPPER, DOUBLE, 3 7/8" X 1/2" . O.E.M. # FC 2611

CONTACT, COPPER, DOUBLE, 5 1/8" X 1/2"

CONTACT, COPPER, 2 3/4" X 1/2" O.E.M. # FA 4227

CONTACT, FINGER, BERYLIUM COPPER WITH HEAVY COPPER TIP. 3" X 1/2", (2) 3/16" HOLES SET ON…

CONTACT, COPPER, 3 7/16" X 1/2".

CONTACT, CARBON, 1 3/4" X 7/8", (2) HOLES FOR MOUNTING.

CONTACT, CARBON, 2 3/4" X 7/8" (2) MOUNTING HOLES. O.E.M. # EA 3244

CONTACT, CARBON, 4 5/8" X 7/8". O.E.M. # EA 3241

CONTACT, BRONZE, CAST & MACHINED. 2" OVERALL WITH (1) MOUNTING HOLE. O.E.M. # 2046C

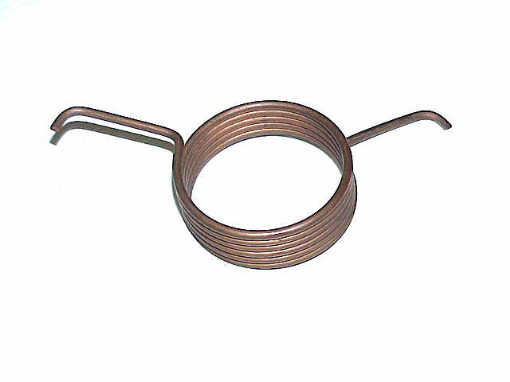

SPRING, COPPER, CENTERING. 1 7/8" O.D. X 1 3/4" I.D., 4 1/2" OVERALL.

BASE, BAKELITE, U/W O-H07/8 OEM: 126388

WASHER, PLASTIC, PYRAMID SHAPE U/W 0-H01, 3 REQUIRED, 3/8" O.D.,AT BASE, .281 BORE, .437…

CONTACT, CARBON, 1 5/8" X 1/2" X 3/8" (2) 1/8" HOLES SET ON 1 7/8" CENTER. O.E.M. # 138887

CONTACT, BRASS, CAR SWITCH. 2" X 6 5/8". ALSO AVAILABLE IN CARBON SEE PART # O-H08 O.E.M.…

CONTACT, CARBON, CAR SWITCH. 2" X 6 5/8". ALSO AVAILABLE IN BRASS SEE PART # O-H07. O.E.M…

CONTACT. BRASS, CAST & MACHINED. USED ON TYPE 'K' CAR SWITCH. O.E.M. # 12164

CONTACT, BRASS, CAST & MACHINED, USED ON TYPE 'G' CAR SWITCH. O.E.M. # 1571

CONTACT, COPPER, FINGER, USED ON TYPE 'O' CAR SWITCH. O.E.M. # 126391

SRING, TYPE 'G' CAR SWITCH O.E.M. # 92Y1

SPRING, STEEL, PLATED. TYPE 'K' CAR SWITCH. O.E.M. # 8608

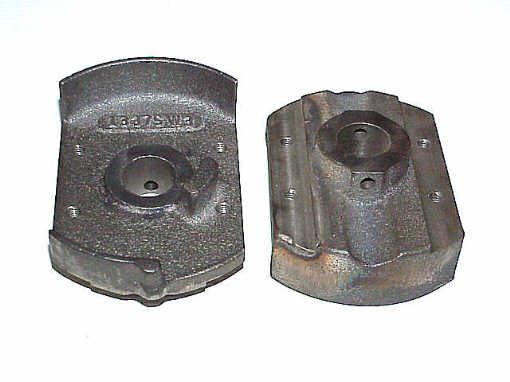

HOLDER, SPRING, IRON, CAST AND MACHINED. CASTING # 1337SW3 O.E.M. # 140751

CONTACT, COPPER, TYPE 'G' CAR SWITCH. O.E.M. # 103243

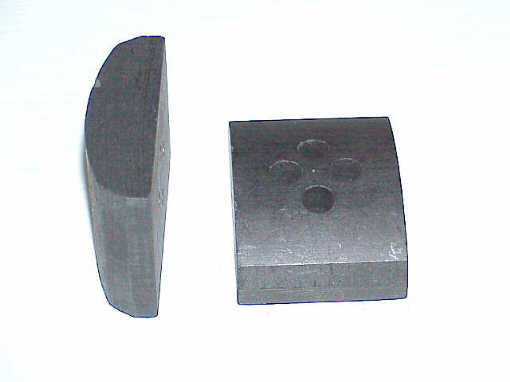

CONTACT, CARBON, 2 1/4" X 1 5/8" X 11/32", (4) 1/8" COUNTERSUNK HOLES. O.E.M. # 154E1

CONTACT, CARBON, 2 1/4" X 7/16" X 5/8", (2) 1/8" HOLES ON 7/8" CENTER. USED ON '40-S' AND…

BASE, CONTACT, CARBON, USED IN CAR SWITCH. 3 1/2" X 1 3/4". (2) 1/4" MOUNTING HOLES ON 1…

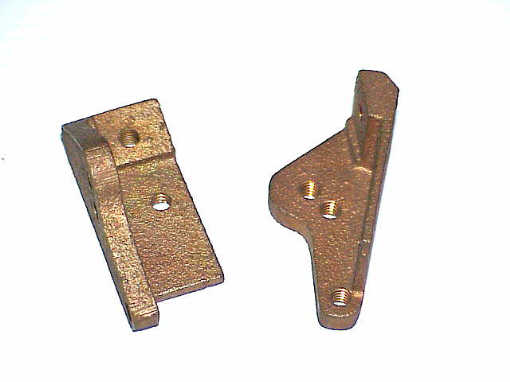

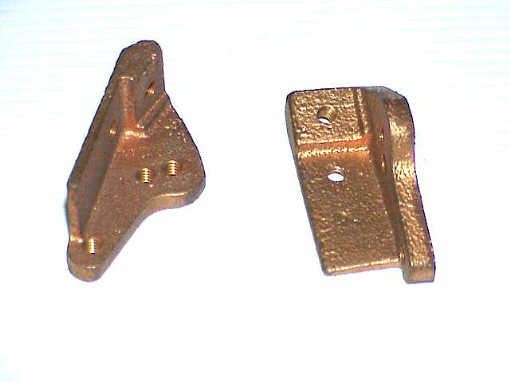

HOLDER, BRONZE, CAST & MACHINED, HOLDS O-H15 CONTACT, LEFT HAND,

HOLDER, BRONZE, CAST & MACHINED, HOLDS O-H15 CONTACT, RIGHT HAND,

CONTACT, COPPER, TYPE 'K' CAR SWITCH. O.E.M. # 1338

CONTACT, COPPER, USED ON 13-O CAR SWITCH. O.E.M. # 135954

CONTACT, CARBON, 1 5/8" X 1 1/4" X 3/8" USED ON 21-O AND 6070C CAR SWITCHES. O.E.M. # A15…

CONTACT, ASSEMBLY, 6070C CAR SWITCH. INJECTION MOULDED BASE, THREE O-H22 CONTACTS. O.E.M.…

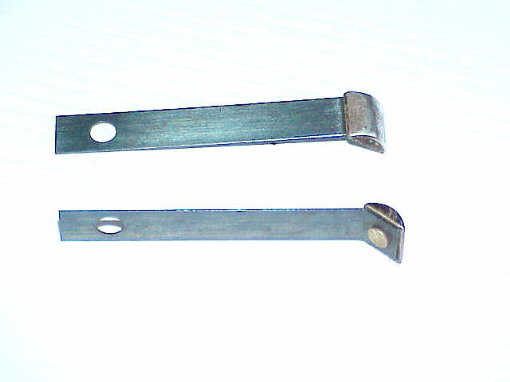

CONTACT, CAR SWITCH, FINE SILVER TIP, BLUE SPRING STEEL BODY. O.E.M. # 156A6

WASHER, STEEL, WITH PIN, USED AS SPRING CENTERING DEVICE ON TYPE "K" CAR SWITCH O.E.M. #…

BUSHING, FIBRE, TYPE 'K' CAR SWITCH. O.E.M. # 10013

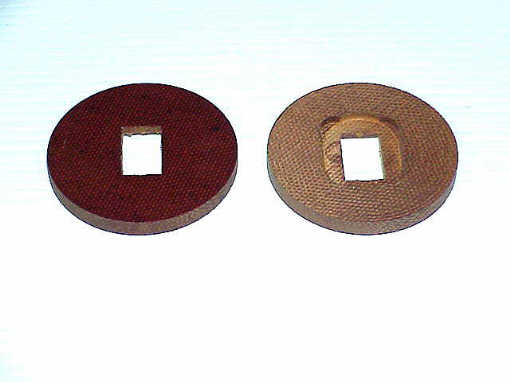

WASHER, FIBRE, TYPE 'K' CAR SWITCH. O.E.M. # 10014

CONTACT, ASSEMBLY, USED ON TYPE 11-0, 13-0 AND 40-0 CAR SWITCHES. O.E.M. # 146088

RETAINER, SPRING, BRONZE, CAST & MACHINED. USED ON TYPE 'O' CAR SWITCH. O.E.M. # 126930

BOARD, CONTACT BASE, CAST & MACHINED. USED ON 'K' CAR SWITCHES. O.E.M. # 10015

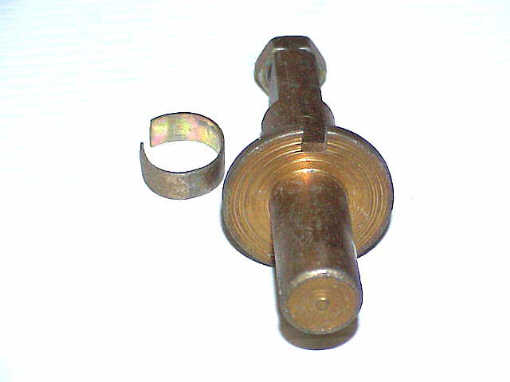

PIN, CENTERING, STEEL, MACHINED, PLATED. USED ON 'K' CAR SWITCH. RING WASHER INCLUDED AS…

BOARD, CONTACT BASE, BAKELITE, MOULDED & MACHINED. USED ON 21-0 CAR SWITCH. O.E.M. # 1263…

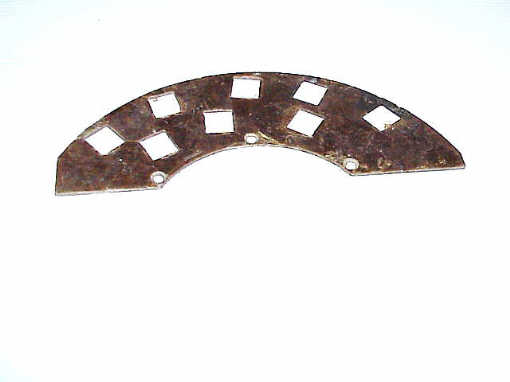

INSULATOR, MICA, STAMPED. USED ON '21-0' CAR SWITCH. O.E.M. # 134544

HANDLE, PLASTIC, MACHINED, WITH BRASS RING AND EXTENSION. USED ON '21-0' CAR SWITCH. O.E.…

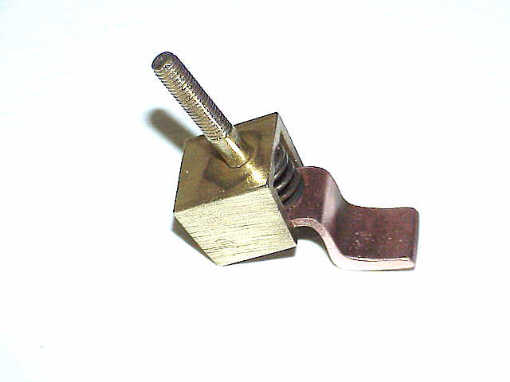

ASSEMBLY, CONTACT, HOLDER & SPRING. USED ON '21-0' CAR SWITCH. O.E.M. # 130409

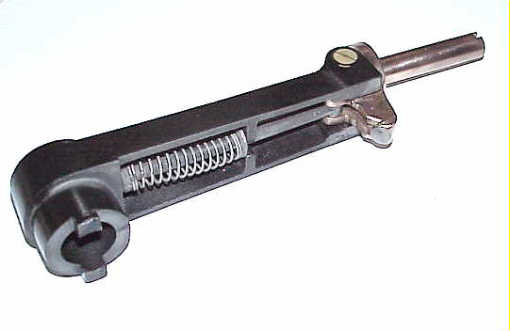

LEVER, COMPLETE AS SHOWN. USED ON '11-0' CAR SWITCHES.

LEVER, COMPLETE AS SHOWN. USED ON '11-0' CAR SWITCHES.

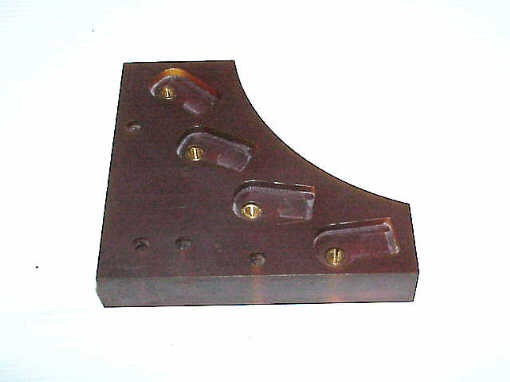

BOARD, CONTACT BASE, MOULDED WITH BRASS INSERTS. USED ON '11-0' AND '13-0' CAR SWITCHES.…

BOARD, CONTACT BASE, MOULDED WITH BRASS INSERTS. USED ON '11-0' AND '13-0' CAR SWITCHES.…

CONTACT, CARBON, 3 3/16" X 5/8" X 13/16", (2) 3/16" MOUNTING HOLES SET ON 1 1/4" CENTER.'…

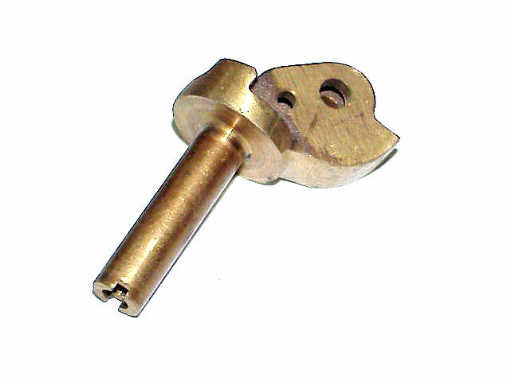

SUPPORT, HANDLE, BRASS, CAST & MACHINED. USED ON '11-0' & '13-0' CAR SWITCHES. O.E.M # 15…

HANDLE, COMPLETE AS SHOWN, USED WITH 6070 SERIES CAR SWITCHES. (FOR BRONZE ADD 'B' TO PAR…

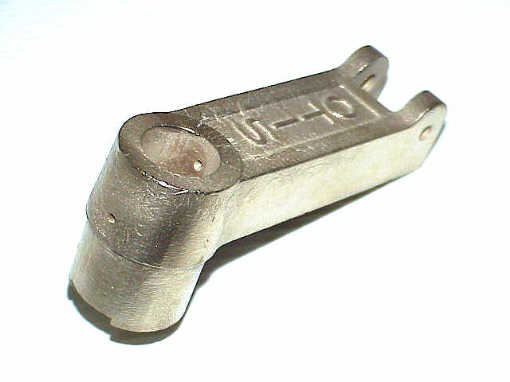

LEVER, BRONZE, CAST & MACHINED. USED ON 6070 SERIES CAR SWITCHES. O.E.M. # B287A1

YOKE, STEEL 'U', BRASS STEM. USED ON 40S AND 6070C CAR SWITCHES. O.E.M. # 492J2

SPRING, STEEL, USED ON 40S AND 6070C CAR SWITCHES. 3 1/4" X 1 1/4", 5 ACTIVE TURNS. O.E.M…

LEVER, CAST AND MACHINED, GERMAN SILVER FINISH. USED ON '12-B' CAR SWITCH. 5 1/4" X 1 1/4…

BASE, PLASTIC, MOULDED & MACHINED. 4 1/8" OVERALL, 1 3/8" WIDE. O.E.M. # 137886

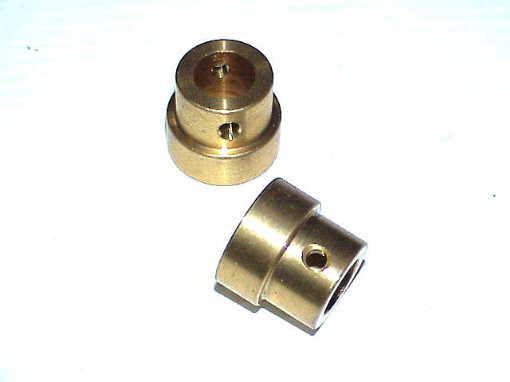

COLLAR, BRASS, CAR SWITCH HANDLE, 11/16" X 3/4" WITH HOLE FOR COTTER PIN, TURNED DOWN TO…

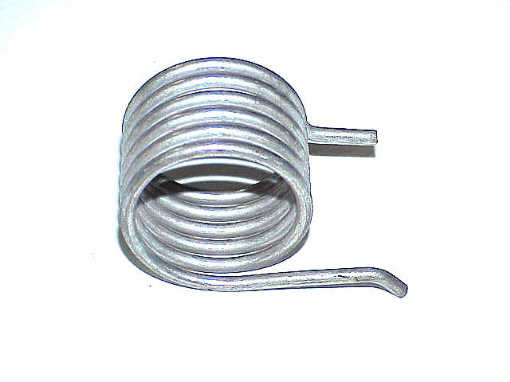

SPRING, STEEL, PLATED. 1 3/8" X 1 1/4" , 1 1/4" I.D., 6 ACTIVE TURNS. O.E.M. # 807284

SPRING, TORSION, STEEL, PAINTED. 4 3/4" END TO END, 2 11/16" O.D., 2 1/2" I.D., FOUR (4)…

CONTACT, CARBON, 1 1/4" X 1" X 5/8" (2) 3/16" HOLES SET ON 1/2" CENTER.

CONTACT, CARBON.

CONTACT, FINGER, COPPER, MOUNTED TO BRASS STAKE. 2 3/8" X 3/8", (1) 3/16" MOUNTING HOLE.

CONTACT, CARBON, 1 1/2" X 1/2", (2) 3/16" MOUNTING HOLES SET ON 1" CENTER. O.E.M. # DA 46…

CONTACT, CARBON, CAR SWITCH. 3 1/2" X 1/2". (3) 1/8" HOLES. O.E.M. # 4108

BASE, PHENOLIC, MACHINED. USED WITH WA-H15. O.E.M. # DA 4108

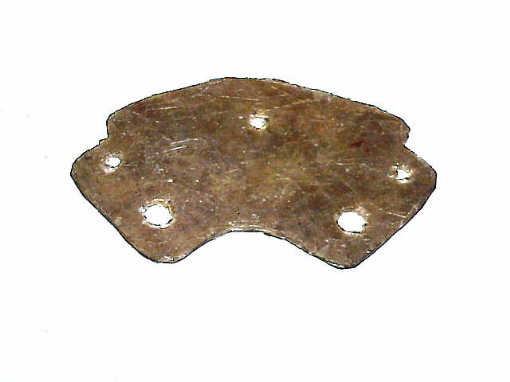

INSULATOR, MICA. USED WITH WA-H15 & WA-H15A. O.E.M. # DA 4219

CONTACT, CARBON, 5 1/2" OVERALL, 1/2" WIDE (3) 3/16" MOUNTING HOLES. O.E.M. # DA 4612

CONTACT, SEGMENT, BRONZE, CAS & MACHINED. TYPE LF & F CAR SW/S. 3 1/2" X 1 1/2" X 3/4", (…

BASE, CONTACT, PLASTIC, MOULDED, HOLDS 10 CONTACTS. O.E.M.# R8532-1

BASE, CONTACT, PLASTIC. MOULDED. HOLDS 6 CONTACTS O.E.M. # R8532-4

CONTACT, STATIONARY, RIGHT HAND USED ON DV4 CAR SWITCH. O.E.M. # T5238-G01

CONTACT, STATIONARY, LEFT HAND USED ON DV4 CAR SWITCH. O.E.M. # T5238-G02

WASHER, STOP O.E.M. # X14B-3

BEARING, ASSEMBLY, COMPLETE AS SHOWN, HOLDS BRIDGE ASSEMBLY. O.E.M. # K8585-G02

SPRING, CENTERING, STEEL, PAINTED. 1 3/4" X 5/8" WITH 10 ACTIVE TURNS. X9B-31

HANDLE, ASSEMBLY, COMPLETE AS SHOWN. DV4 CAR SWITCH. O.E.M. # T5239-G01

HANDLE, GRIP, PLASTIC, MOULDED AND MACHINED. O.E.M. # R8532-G01

ACTUATOR, HANDLE, BRASS WITH STEEL ROD. COMPLETE AS SHOWN, USED ON DV4 CAR SWITCH. O.E.M.…

SWITCH, FAN, ROTARY, COMPLETE AS SHOWN. O.E.M. # K3574-G01

SWITCH, EMERGENCY RELEASE, COMPLETE AS SHOWN O.E.M. # R8556-G01

HANDLE AND ACTUATING ASSEMBLY. EARLY WESTINGHOUSE CAR SWITCHES. O.E.M. # T4441-G06
